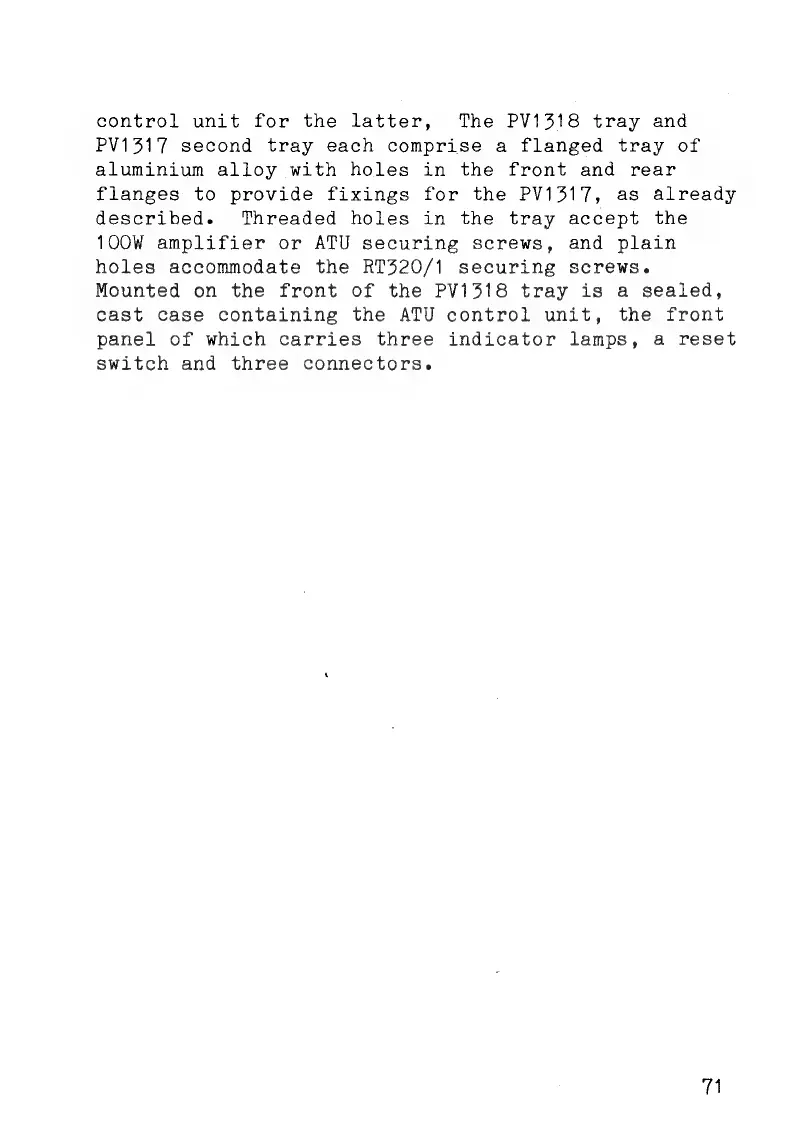

control

unit

for

the

latter,

Тһе

PV1318

tray

and

PV1317

second

tray

each

comprise

а

flanged

tray

of

aluminium

alloy

with

holes

in

the

front

and

rear

flanges

to

provide

fixings

for

the

PV1517,

as

already

described.

Threaded

holes

in

the

tray

accept

the

100W

amplifier

or

ATU

securing

screws,

and

plain

holes

accommodate

the

RT220/1

securing

screws.

Mounted

on

the

front

of

the

PV1518

tray

is

a

sealed,

cast

case

containing

the

ATU

control

unit,

the

front

panel

of

which

carries

three

indicator

lamps,

a

reset

switch

and

three

connectors.
