Plessey PRC 320/1 - Page 92

1. SWITCH ON
Set to AMPLIFIER.
Amber STANDBY
lamp lights.
2. CHECK SYSTEM SUPPLY
Set to SUPPLY VOLTS.
Meter indicates d.c.
Supply voltage, which
Should be 20V to 327.
LE ARAAAXNLAAAAAAAAAAAAAA |
2
АСТМЕ 5ТАМО RF OUTPUT
DRIVER AMPLIFIER.
бесе
Ыта. S С
атпапапнппт
BBB 02 45 02 prem po]

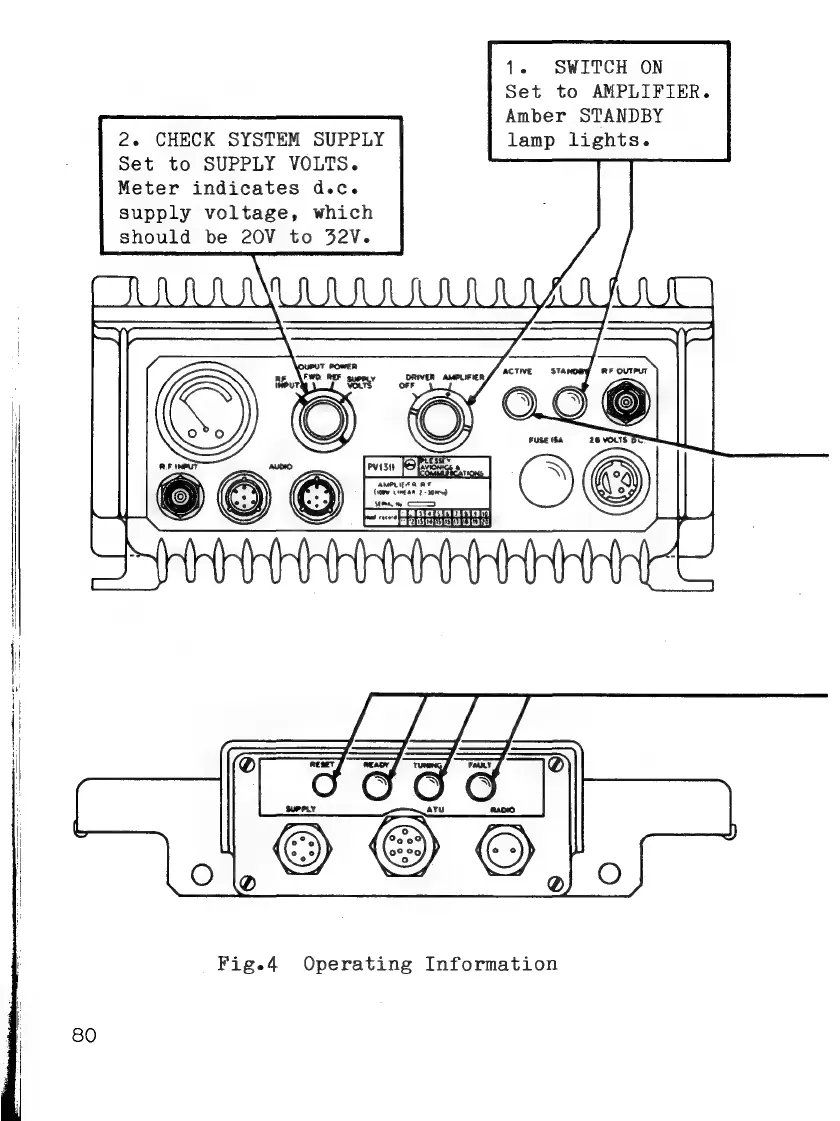

Fig.4 Operating Information
