REP 2.14 Aligning Eject rollers
T08009 TJ
PURPOSE
This adjustment is more essential on the Model 61, when the set is fed to the Fold stop on a Model
61
the inner Side jogger rail will not guide the set as on a Model 60.
1. Switch off the main power switch and disconnect the power cord.
2. Remove lower Infeed cover, CRI 1.2.
3. Run a few sets and check that they are fed straight down to the Fold stop.

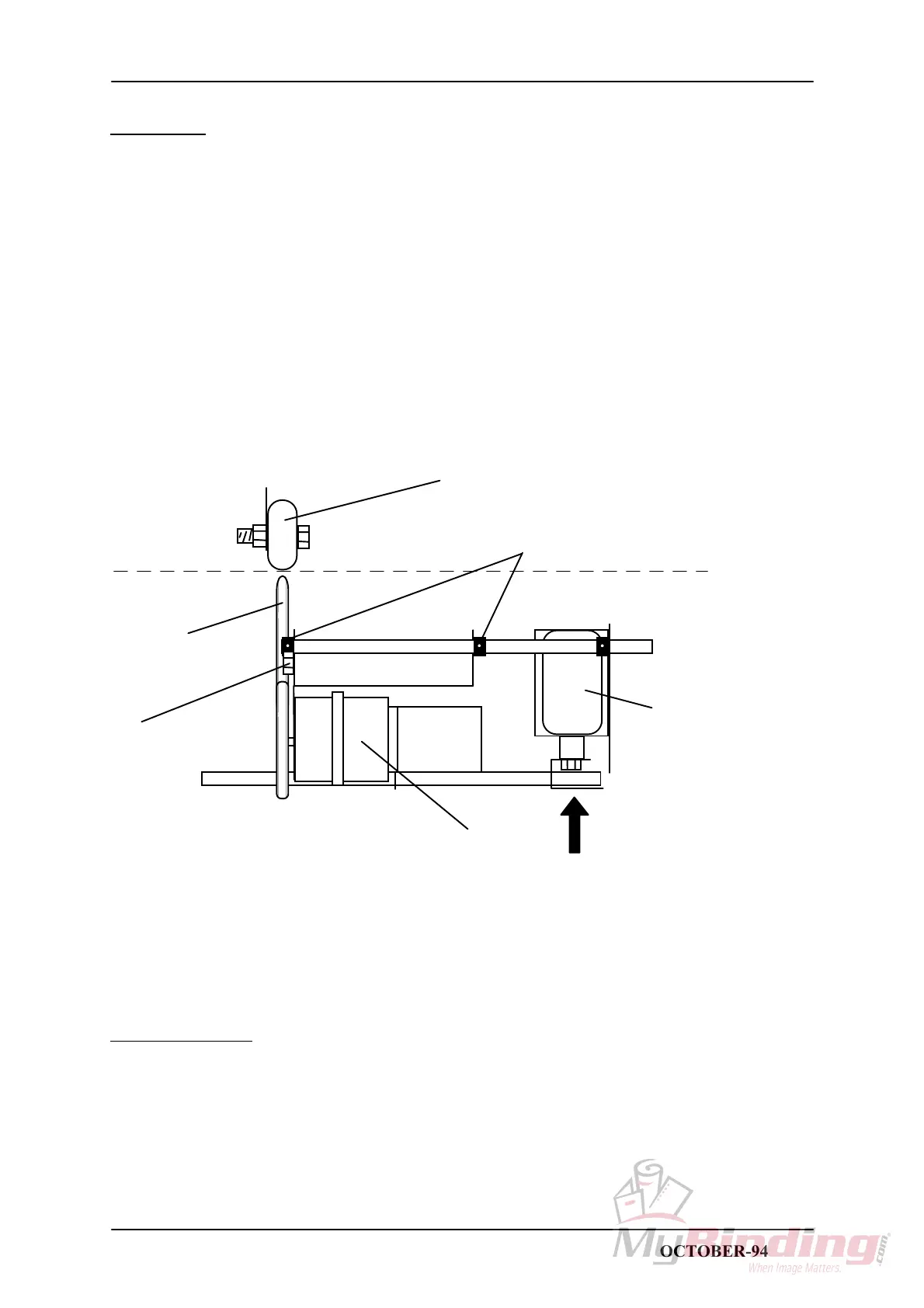

SOL1
M4
Upper idler roller
Feed wheel
1
2
Push here
ADJUSTMENT
1. Adjust the skewing of Feed wheel by loosening the screw (1) and turn the Feed motor assembly.
2. Align the Feed wheel with the upper Idler roller by positioning the set collars (2).
STAPLER FOLDER MODEL 60/61 PAGE 2.14 OCTOBER-94
