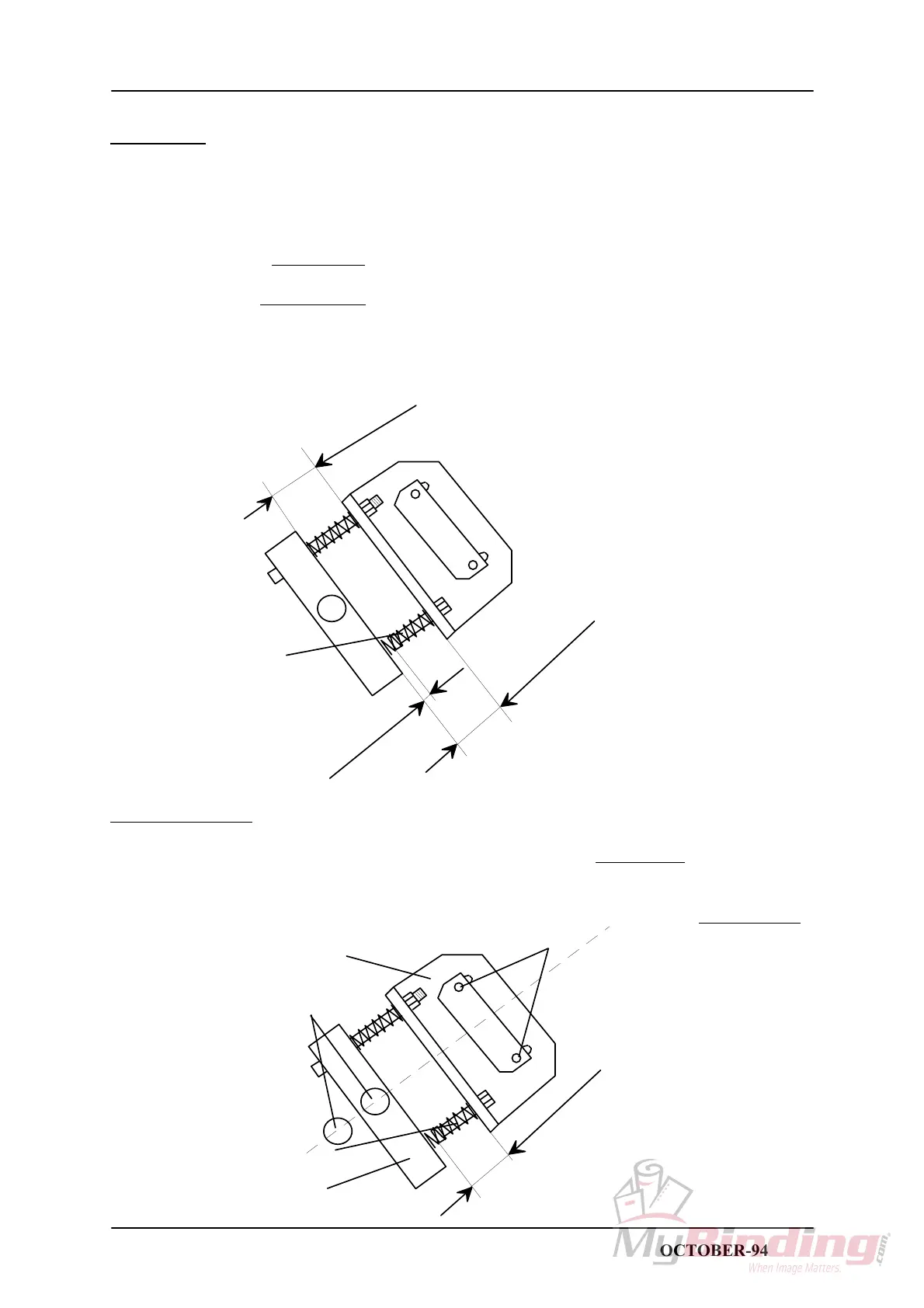

REP 2.16 Fold pressure, top Fold rollers
T08009 TJ
PURPOSE
There are two springs on each side of the top Fold rollers, one is stiff and the other is softer.
When running two to five sheets the Fold rollers will only use the soft springs, when running up to
twenty sheets all of the springs will be compressed.
1. Switch off the main power switch and disconnect the power cord.
2. Remove Front and Rear cover, CRI 1.1.
3. Check that there is a 35 +/- 0.5mm
space in-between the fold bracket and the fold roller arm at the
top spring.
4. Check that there is 35.5 +/- 0.5mm
space in-between the fold bracket and the fold roller arm at the
lower spring.
5. Use a feeler gauge to check that there is a 2 +/- 0.5mm space in-between the screw (1) and the
fold
roller arm.
2.5+/-0.5mm
35.5+/-0.5mm
35+/-0.5mm
1
ADJUSTMENT
1. Start with adjusting screw (1) to a distance of 33mm.
2. Adjust the space between the fold bracket and the fold roller arm to 35+/- 0.5mm
on the upper
screw.
3. Loosen the screws (2) and position the fold pressure assembly until the Fold rollers are in a
straight line with the fold pressure assembly and the distance at the lower spring is 35.5+/- 0.5mm
.
33mm
1
2
Fold rollers
Fold backet
Fold roller arm
STAPLER FOLDER MODEL 60/61 PAGE 2.16 OCTOBER-94
