EDI 3.1 Trimming of Circuit board PCB 60-1
T08009 TJ
PURPOSE
The trimmers on the circuit board can be adjusted in order to increase or decrease the different
functions described below. If exchanging a circuit board position of the trimmers has to checked.
ADJUSTMENT
Trimmer 1 Controls the operating time of the Eject Motor M4.
Normal setting 12:30.
Trimmer 2 Delay of start pulse for Fold knife Motor M2.
Normal setting 11:00.
Trimmer 3 Controls the operating time for Fold roller Motor M3.
Normal setting 10:00.
Trimmer 4 Controls the operating time for Conveyor Motor M5.
Normal setting 09:00.
STAPLER FOLDER MODEL 60/61 PAGE 3.1 OCTOBER-94
9 O’clock
12 O’clock

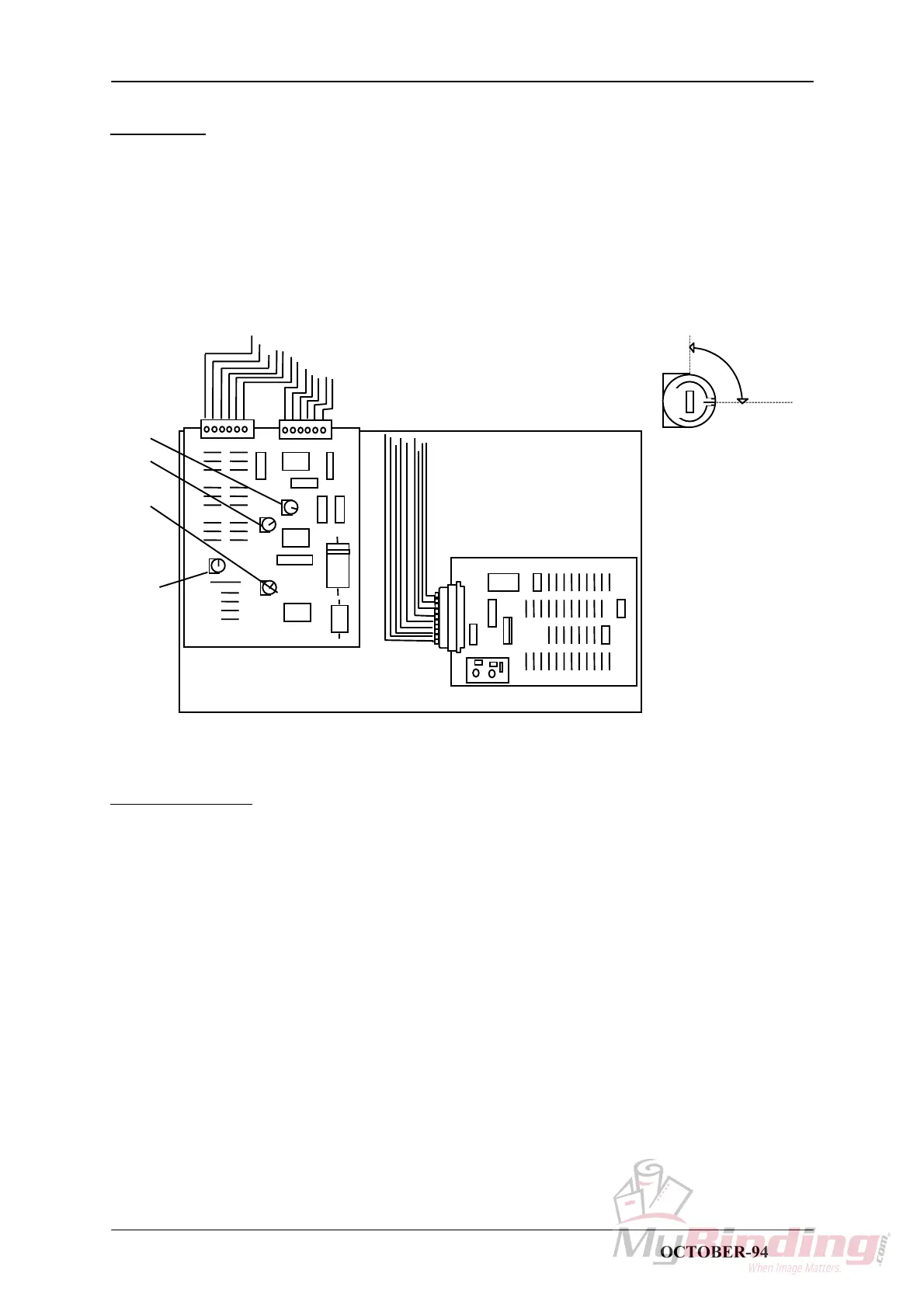

SETTING OF
TRIMMERS
TR 1
TR 2
TR 3
TR4
