PLP B20 - Attaching Strap;Harness

- 10 -
4. Insert the φ3,5mm pin into the hole in the boss adapter and
the guide slot in the gearcase to lock the attaching shaft.
5. Tighten the blade bolt.
6. Remove the φ3,5mm pin from the boss adapter and gearcase.
Attaching Strap / Harness [Except for model B20, B21]

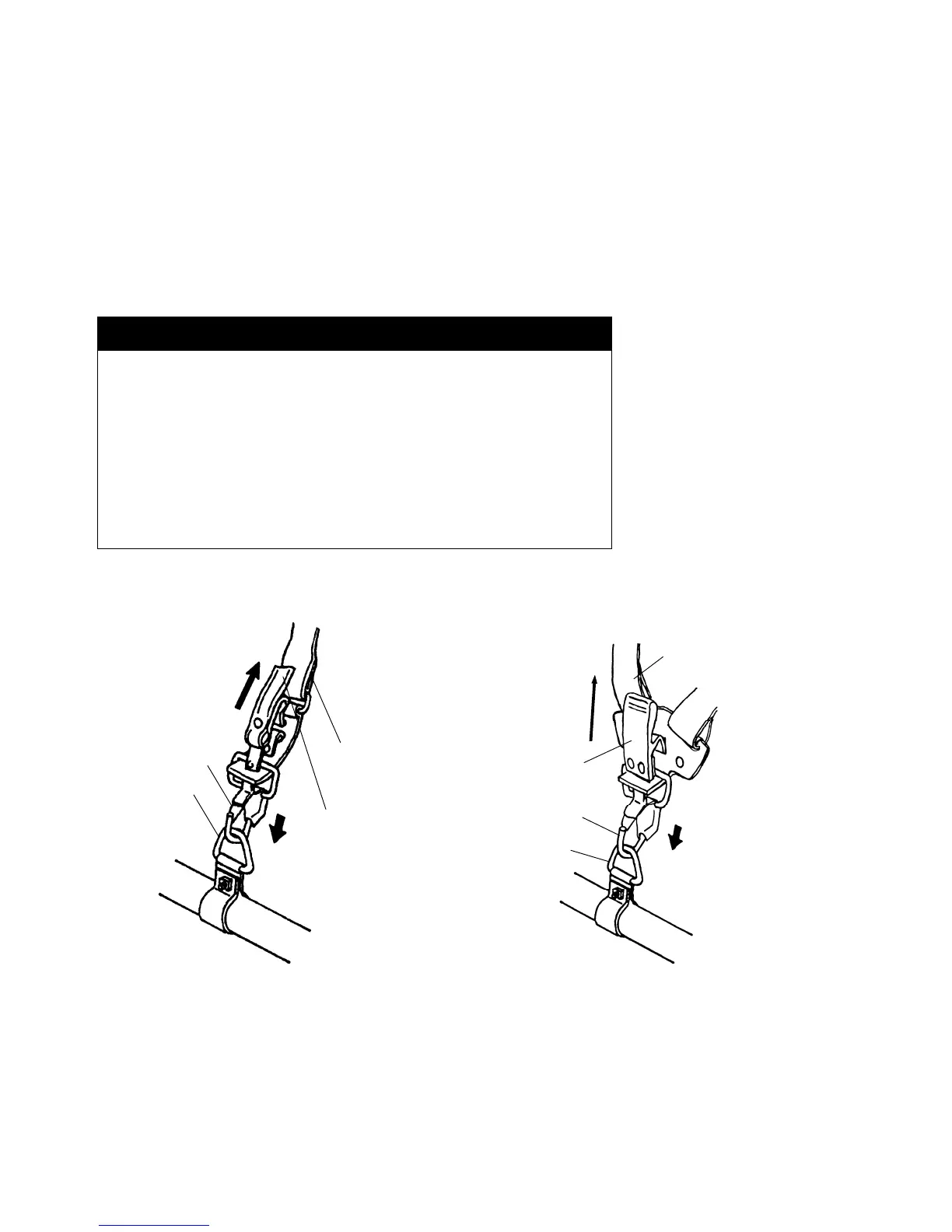

Snap the Hook into the ring on the drive shaft. To detach the Strap / Harness
quickly from the Trimmer/Brushcutter, pull upward on the Red Band / Tab.
 WARNING
POTENTIAL HAZARD
・Without the Shoulder Hanging Strap Installed on the
Trimmer/Brushcutter, the blade can produce side thrust which can
expose the operator and bystanders to blade contact.
WHAT CAN HAPPEN
・Contact with Brushcutter blade can cause severe personal injury.
HOW TO AVOID THE HAZARD
・Never operate the Trimmer/Brushcutter without installing
and using the Shoulder Hanging Strap.
Strap
Ring
Red Band
Hoo
k
Pull
Shoulder Harness
Red Tab
Hoo
k
Ring
[L20, L23, L26, L30, L45]
[BC26, BC30, BC45, BC50]
