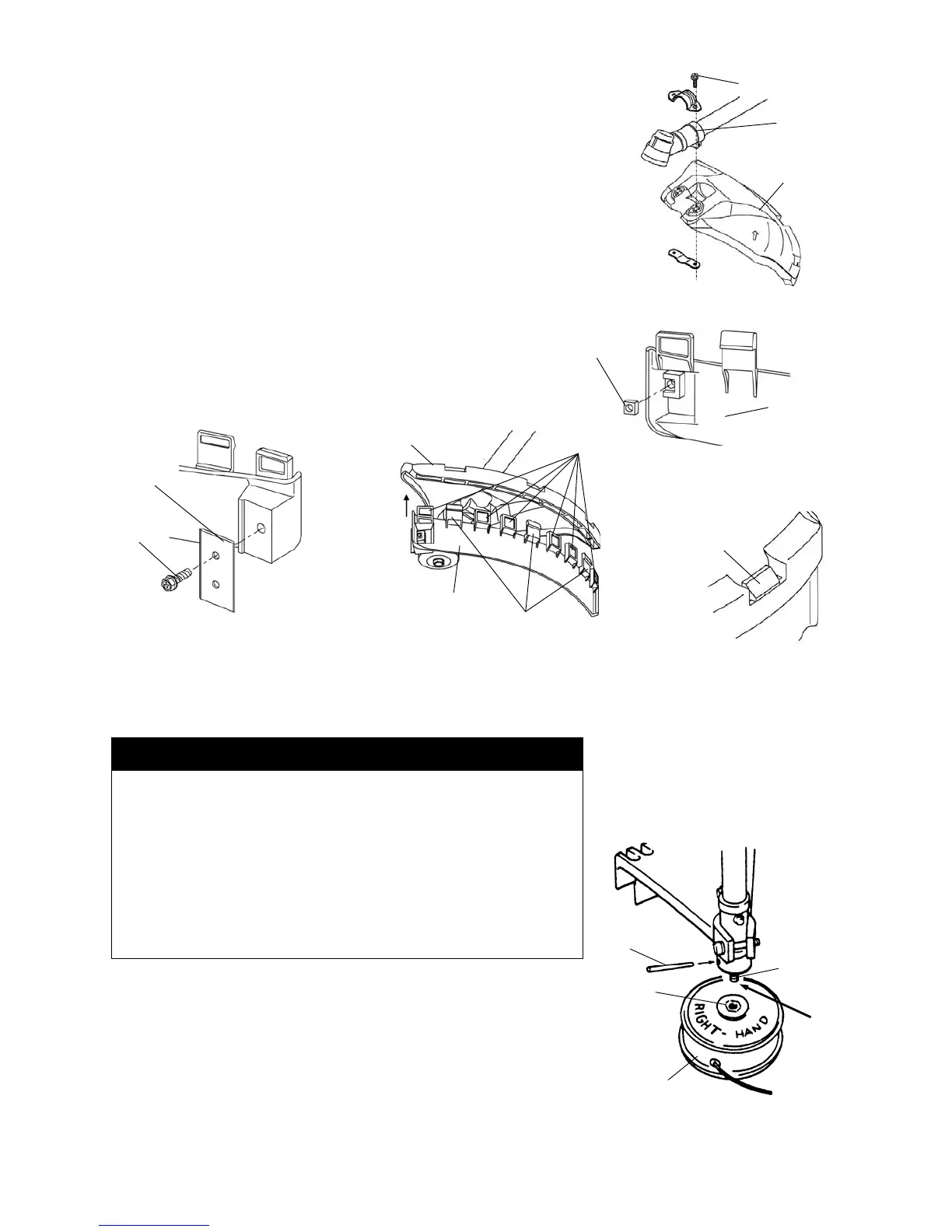

PLP B20 - Installing Cutting Attachment

- 8 -
[Model BC26, BC30, L45, BC45, BC50]
Blade Guard
Attach the blade guard to the gearcase with the two M6×30
screws as shown on Fig.3.
Trimmer Head Guard
(Install the string cutoff blade and guard extension to the blade
guard.)
1. Insert the square nut into guard extension as shown on Fig. 4.
2. Attach the String Cutoff Blade to guard extension using
M5×20 Screw, locking with square nut (on Fig.4) as shown
on Fig. 5.
3. Enter the guide in the slot of Blade Guard on Fig. 6.
Make sure place the three hooks into the position
on the guard as shown on Fig. 7.
Installing Cutting Attachment
Trimmer Head
[Model B20, B21]
1. Align the hole in the boss adapter with the guide slot in the
bearing case.
2. Insert the φ3,5mm pin into the hole and guide slot in the boss
adapter and bearing case to lock the attaching shaft (A).
3. Thread the trimmer head adapter (B) onto the attaching shaft,
then tighten the trimmer head firmly by hand.
Note: The trimmer head adapter has right-hand thread.
4. Remove the φ3,5mm pin from the boss adapter and bearing case.
Fig.5
String Cutoff
Blade
M5×20
Screw
Square Nu
t
Guard
Extension
Fig.4
Fig.7
Hook
 WARNING
POTENTIAL HAZARD
・If the trimmer head is not adequately tightened, it can come
loose from the Trimmer/Brushcutter during use.
WHAT CAN HAPPEN
・This may cause damage to property or personal injury.
HOW TO AVOID THE HAZARD
・Make sure the trimmer head is securely fastened to the
attaching shaft in the gearcase.
Hook
Blade Guard
Guard extension
Fig.6
Guide
Trimmer Head
Adapter
Trimmer Head
A
ttaching
Shaft
Holding Tool
(φ3,5mm Pin)
Right-hand
thread
M6×30 Screw(2)
Gearcase
Guard
Fig.3
