[Model L30, L45, BC30, BC45, BC50]

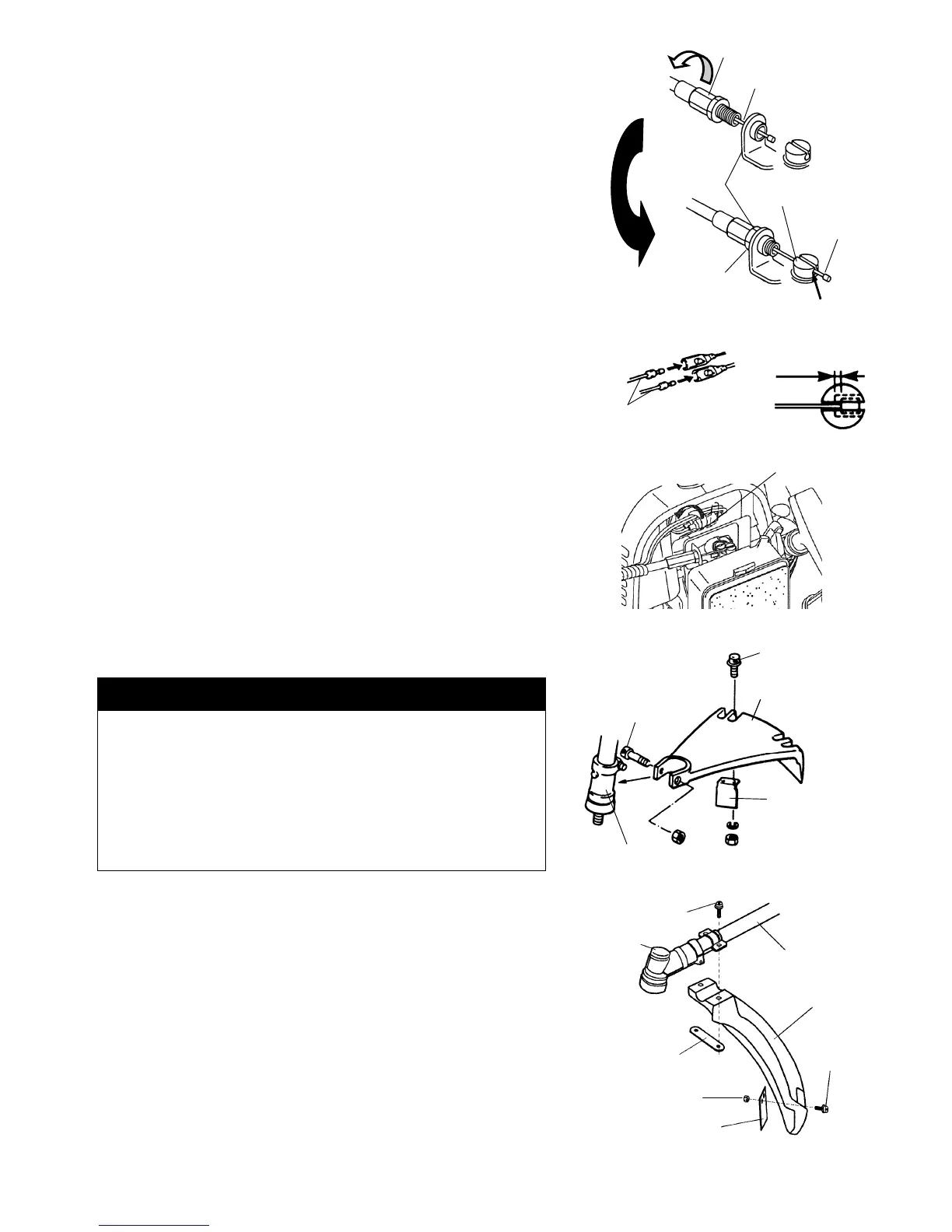

1. Insert the throttle cable through the carburetor bracket, then
screw a cable adjuster sleeve into the carburetor bracket fully.
2. Position the slotted fitting on the carburetor so the recessed
hole for the lug is away from the cable adjuster sleeve.
3. Rotate the carburetor throttle cam and slip the throttle cable
through the slot in the slotted fitting, making sure the cable lug
drops into the recessed hole.
4. Operate the throttle trigger a few times to make sure that it
works correctly.
5. Adjust the cable adjuster sleeve so the stop on the carburetor
throttle cam just contacts the throttle stop and the cable position
keep 1-2mm play between cable lug and slotted fittings when
the throttle trigger is fully depressed.
6. When the throttle cable is adjusted correctly, tighten the lock-nut.
7. Plug the stop switch wires into the matching connectors from
the engine. Note that wire polarity is not important.
[ Model L45, BC45, BC50]
8.Lap and fix the stop switch wires and connectors with clamp.
Installing Guard
[Model B20, B21]
1. Fasten the string cutoff blade to the guard with M5×16
screws as shown on Fig.1.
2. Push the guard onto the bearing case. Install the M6×40
screw and nut, tighten ONLY AS NEEDED.
[Model L20, L23, L26, L30]
1. Fasten the string cutoff blade to the guard with
M5×15 screws as shown on Fig.2.
2. Atttach the guard to the shaft with the two M5x30
screws and plate as shown.
WARNING
POTENTIAL HAZARD
・Foreign objects can be thrown by Trimmer/Brushcutter.
WHAT CAN HAPPEN
・Contact with thrown objects can cause personal injury.
HOW TO AVOID THE HAZARD
・Never operate the Trimmer/Brushcutter without the
guard in place.
M5×16 Screw(2)
Bearing Case
String Cutoff
Blade
Guard
M6×40 Screw
M6×40 Screw
Fig.1
