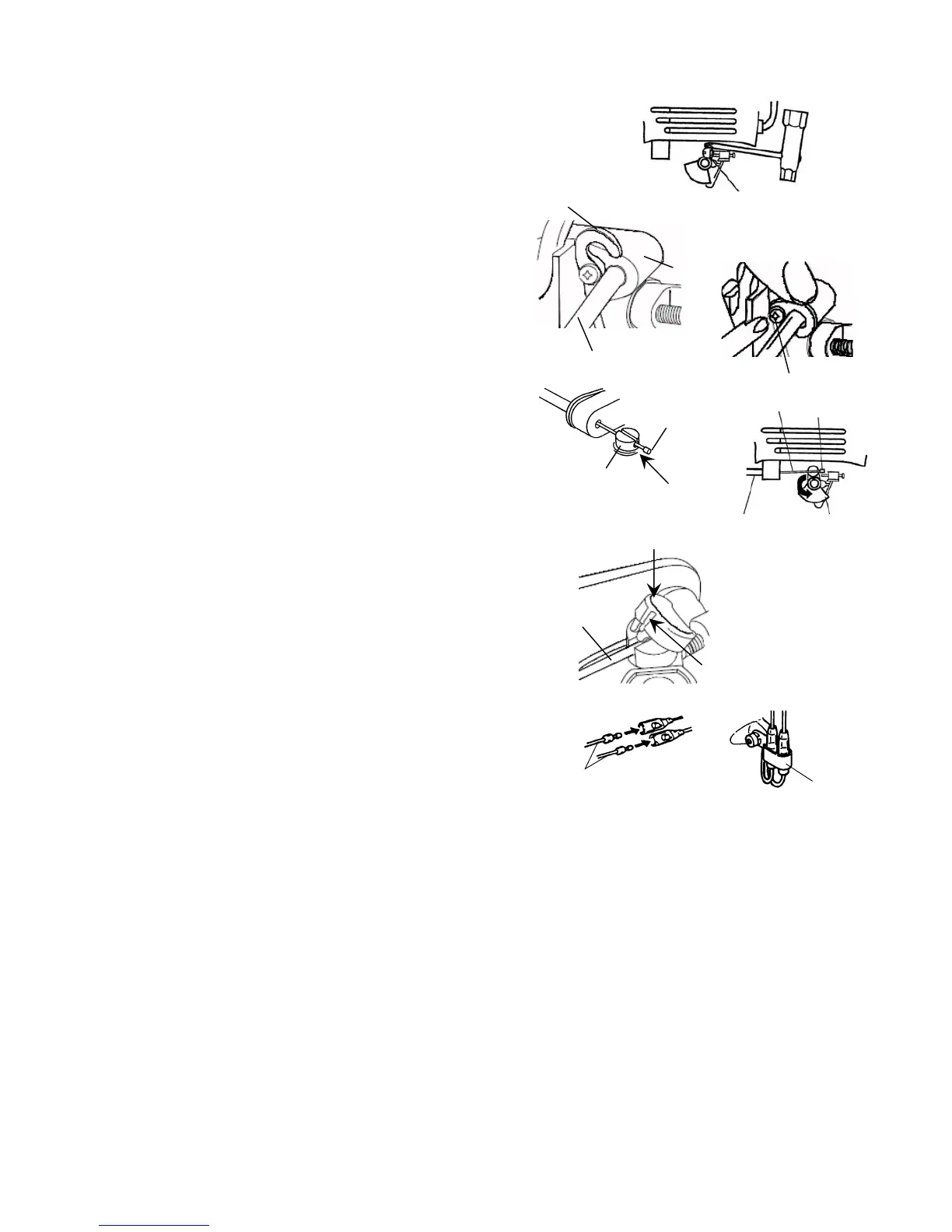

Connecting Throttle Cable and Stop Switch Wires
[Model BC26]
1. Press up the bottom of the swivel ring to remove the swivel ring.
Note: Take care of falling the swivel ring in the engine
when remove the swivel ring.
2. Lift up the hook, then insert the throttle cable and the cable
housing through the hole of the guide.
3. Turn down the hook, dab at throttle cable housing, then
tighten up a screw.
4. Position the slotted fitting on the carburetor so the
recessed hole for the lug is away from the hook side.
5. Rotate the carburetor throttle cam and slip the throttle cable
through the slot in the slotted fitting, making sure the cable
lug drops into the recessed hole.
6. Align the slot of the swivel ring with the slottle wire, then
press down the swivel ring and fix.
Note: Take care of falling the swivel ring in the engine
when remove the swivel ring.
7. Operate the throttle trigger a few times to make sure that
it works correctly.
8. Plug the stop switch wires into the matching connectors from
the engine. Note that wire polarity is not important.
9. Hold the stop switch wires with the clamp.
