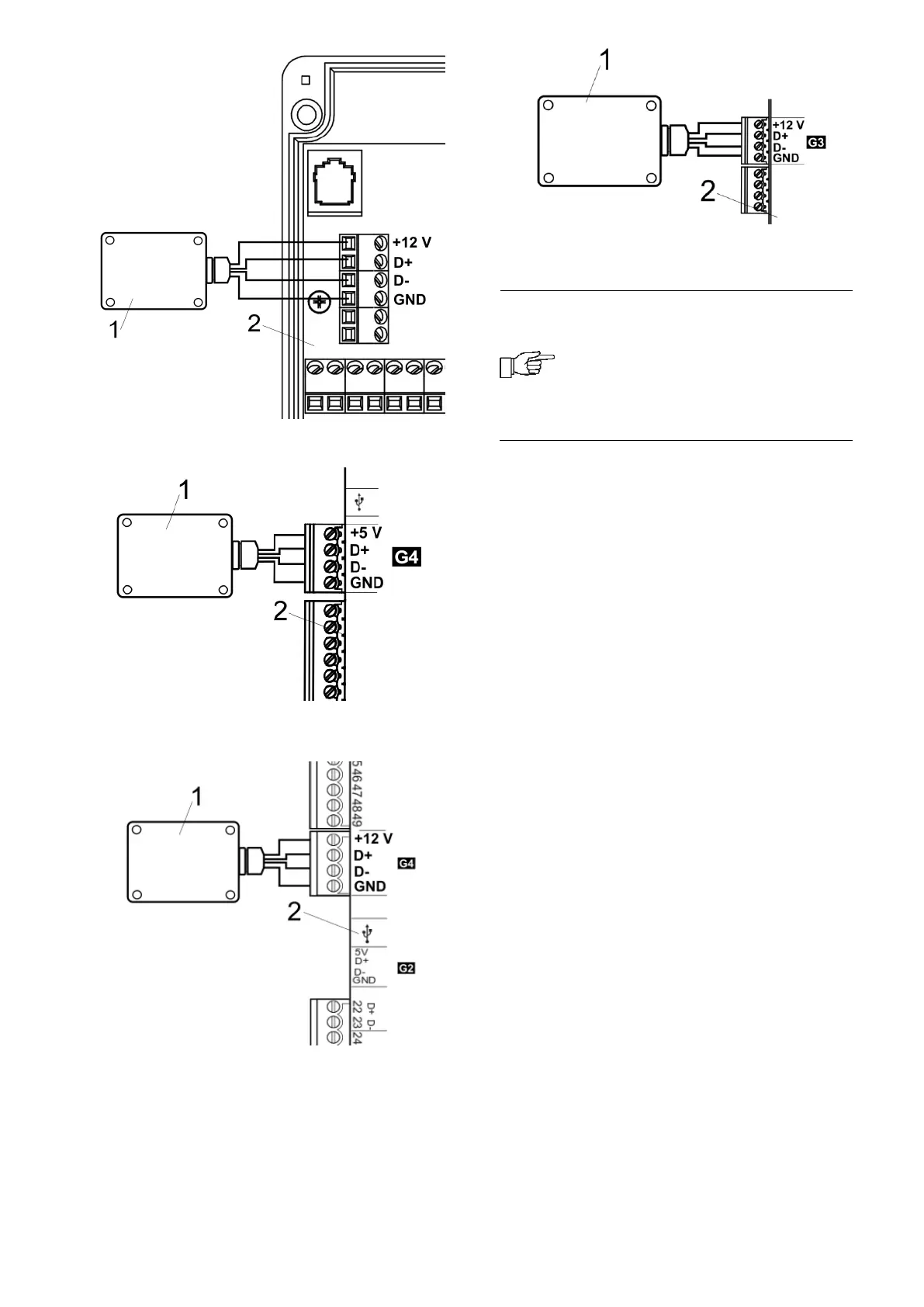

Connection of the module to the ecoMAX850P2,
R2, D2: 1 - radio module, 2 – main controller.
Connection of the module to the ecoMAX860P1,
P2, D1, D2: 1 - radio module, 2 – main
controller.
Connection of the module to the ecoMAX860P3,
D3: 1 - radio module, 2 – main controller.
Connection of the module to the ecoMAX910R1,
ecoMAX920P1: 1 - radio module, 2 – main
controller.
It is not recommended to turn off
the power supply of the main
regulator due to frequent attempts
to obtain a radio connection of the
thermostat with a radio module,
which leads to a quick discharge of
the battery in the thermostat.
