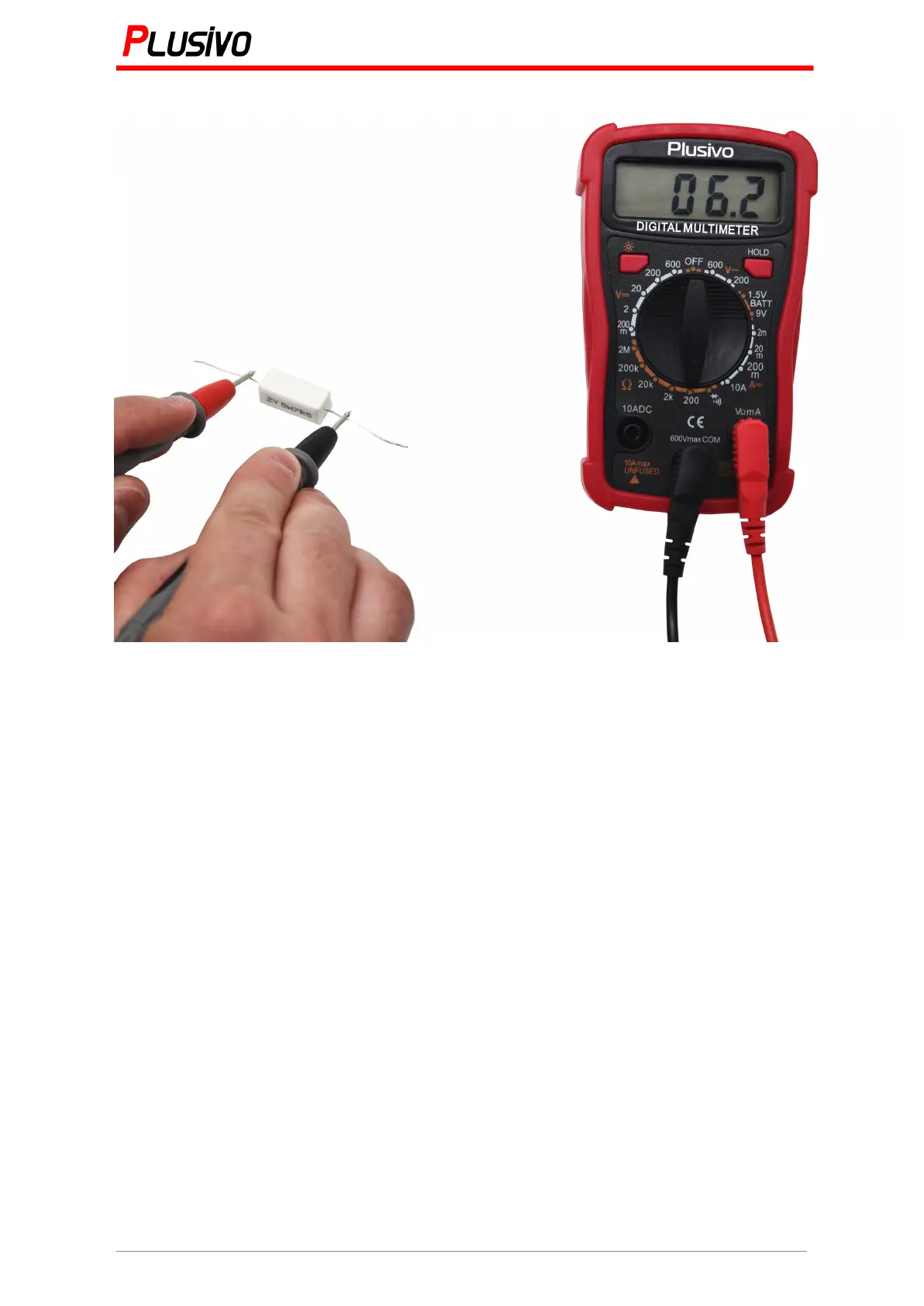

Figure 9. The measured resistance in this figure is 6.2 Ω.
Note:
1. If the resistance value exceeds the selected range value, on the display will be shown "1"
and the range switch should be changed to a higher gear. When the measured resistance
value is more than 1 MΩ, the reading takes a few seconds to stabilize, which in high
resistance mode is normal.
2. When the input is open, the overload condition is displayed.
3. When measuring the on-line resistance, make sure that all the power of the circuit under
test is turned off and all the capacitors are fully discharged.
4. Do not input voltage in the resistance range.
5. Do not touch the two test probes at the same time, because the resistance of your body
will be added in parallel to the resistance that you want to measure.
