5.6 Diode Test

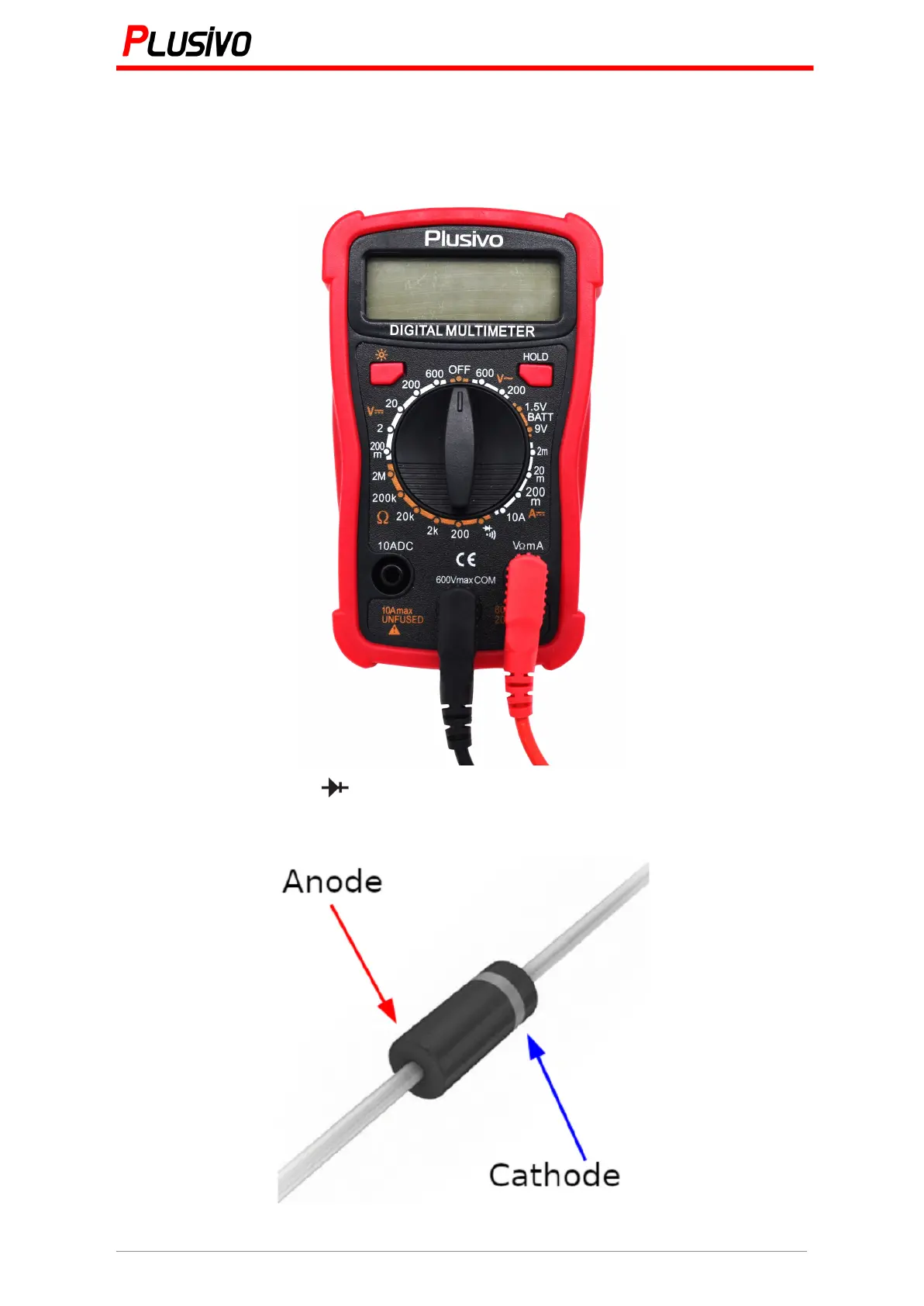

1. Insert the black probe to "COM" and the red probe to "V/Ω" (note that the polarity of the
red probe is "+").
2. Put the range switch to " ". Connect the black probe to the cathode and the red probe
to the anode.
