5.5 Resistance Measurement
1. Insert the black wire to "COM" and the red wire to the "V/Ω" port;
2. Put the range switch to the corresponding resistor range and connect the two test probes
to the element you want to measure.

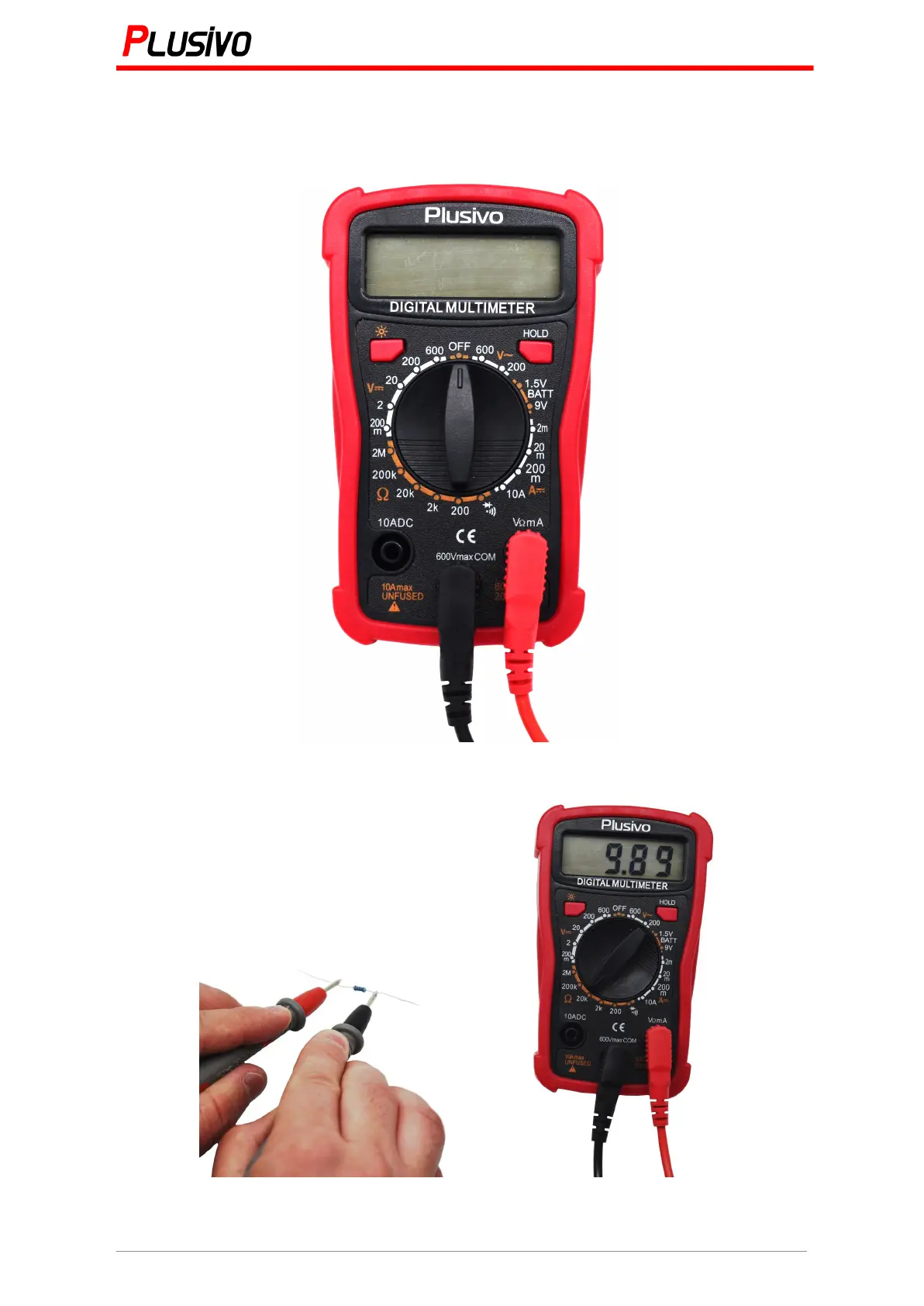

Figure 8. The measured resistance in this figure is 9.89 kΩ.
