Let us see what we will get if we built this circuit in reality and calculate the power
using the multimeter.

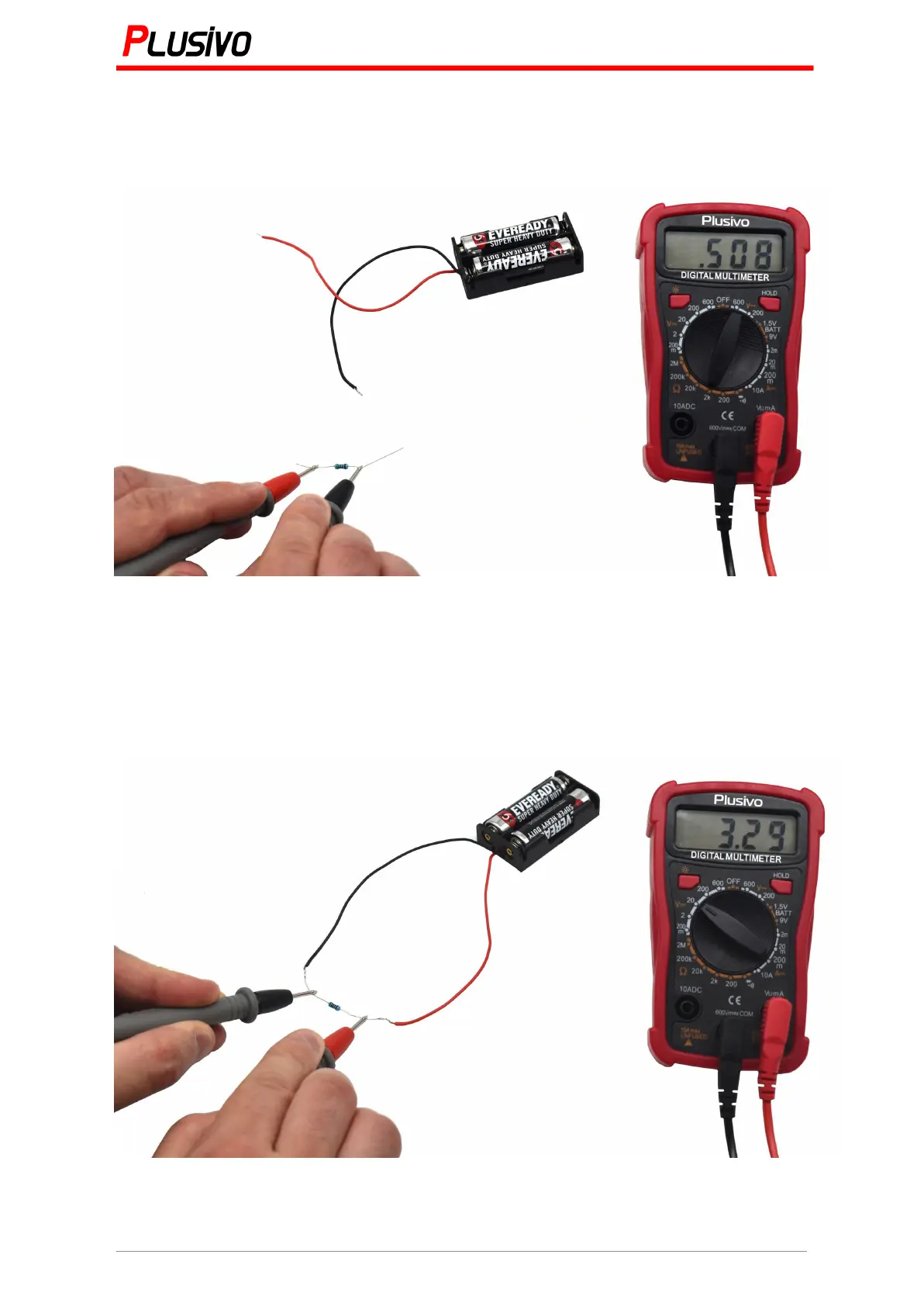

Figure 17. The measured resistance in this figure is 508 Ω.
Note:
Disconnect the battery when measuring the resistance, otherwise, the multimeter may be
damaged.
Figure 18. The measured voltage in this figure is 3.29 V DC.
