And then we measure the resistance between A - B and B - C, the sum of the two
values must be equal to A - C.

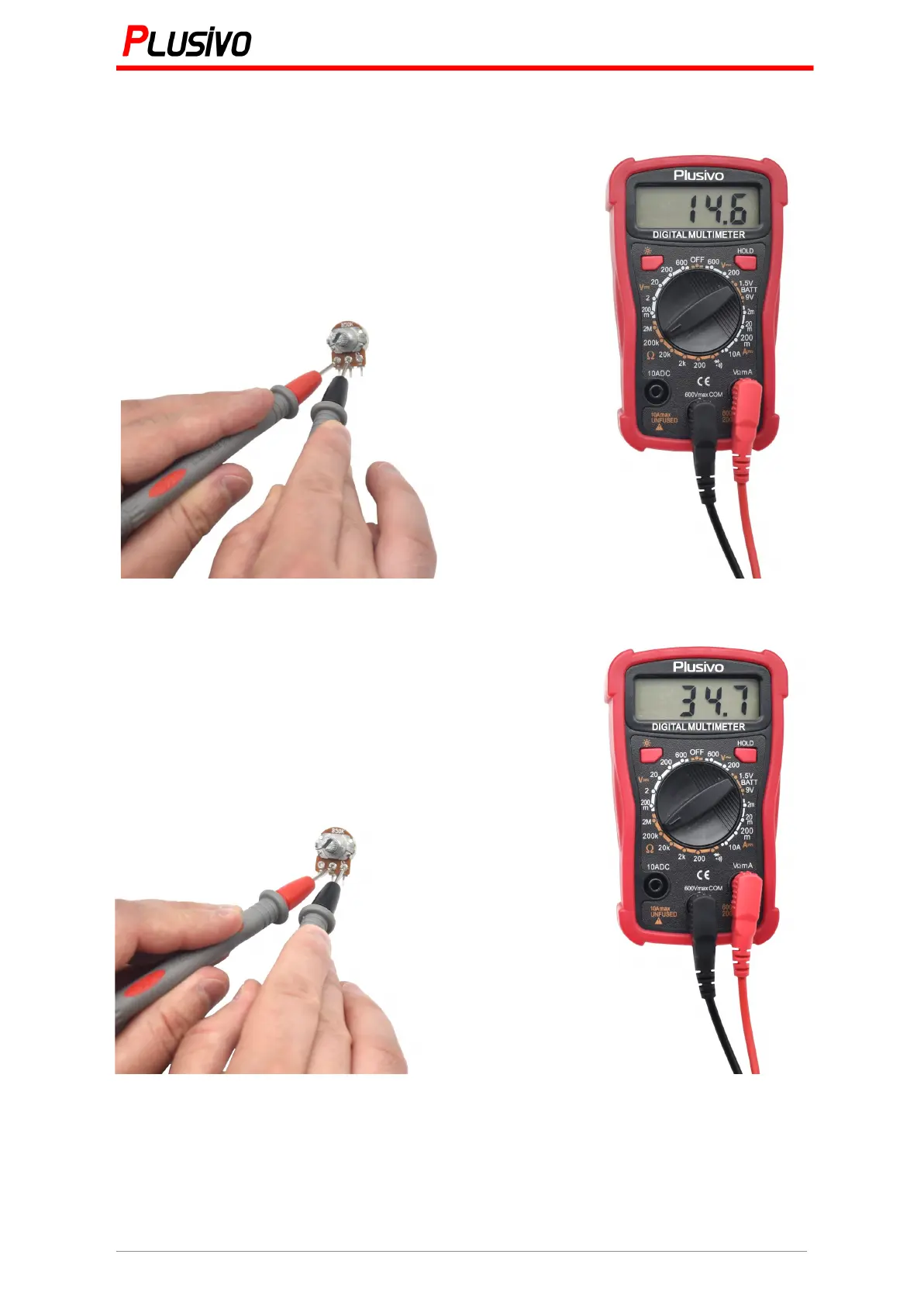

Figure 33. The measured resistance in this figure is 14.6 kΩ.
Figure 34. The measured resistance in this figure is 34.7 kΩ.
, which is almost equal to 48.8 kΩ
14. 6 𝑘Ω + 34. 7 𝑘Ω = 49. 3 𝑘Ω
