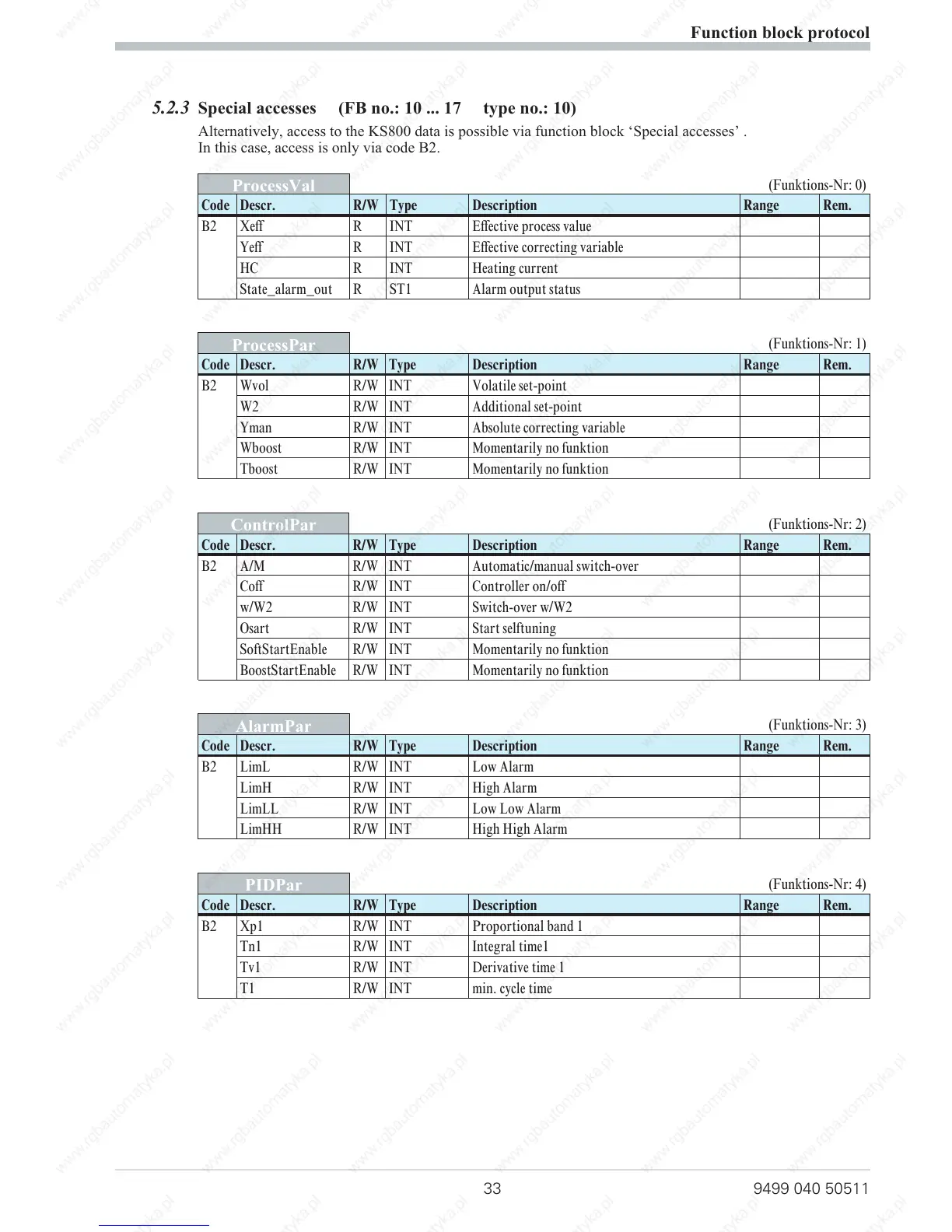

5.2.3 Special accesses (FB no.: 10 ... 17 type no.: 10)
Alternatively, access to the KS800 data is possible via function block ‘Special accesses’ .
In this case, access is only via code B2.
ProcessVal
(Funktions-Nr: 0)
Code Descr. R/W Type Description Range Rem.
B2 Xeff R INT Effective process value
Yeff R INT Effective correcting variable
HC R INT Heating current
State_alarm_out R ST1 Alarm output status
ProcessPar
(Funktions-Nr: 1)
Code Descr. R/W Type Description Range Rem.
B2 Wvol R/W INT Volatile set-point
W2 R/W INT Additional set-point
Yman R/W INT Absolute correcting variable
Wboost R/W INT Momentarily no funktion
Tboost R/W INT Momentarily no funktion
ControlPar
(Funktions-Nr: 2)
Code Descr. R/W Type Description Range Rem.
B2 A/M R/W INT Automatic/manual switch-over
Coff R/W INT Controller on/off
w/W2 R/W INT Switch-over w/W2
Osart R/W INT Start selftuning
SoftStartEnable R/W INT Momentarily no funktion
BoostStartEnable R/W INT Momentarily no funktion
AlarmPar
(Funktions-Nr: 3)
Code Descr. R/W Type Description Range Rem.
B2 LimL R/W INT Low Alarm
LimH R/W INT High Alarm
LimLL R/W INT Low Low Alarm
LimHH R/W INT High High Alarm
PIDPar
(Funktions-Nr: 4)
Code Descr. R/W Type Description Range Rem.
B2 Xp1 R/W INT Proportional band 1
Tn1 R/W INT Integral time1
Tv1 R/W INT Derivative time 1
T1 R/W INT min. cycle time
