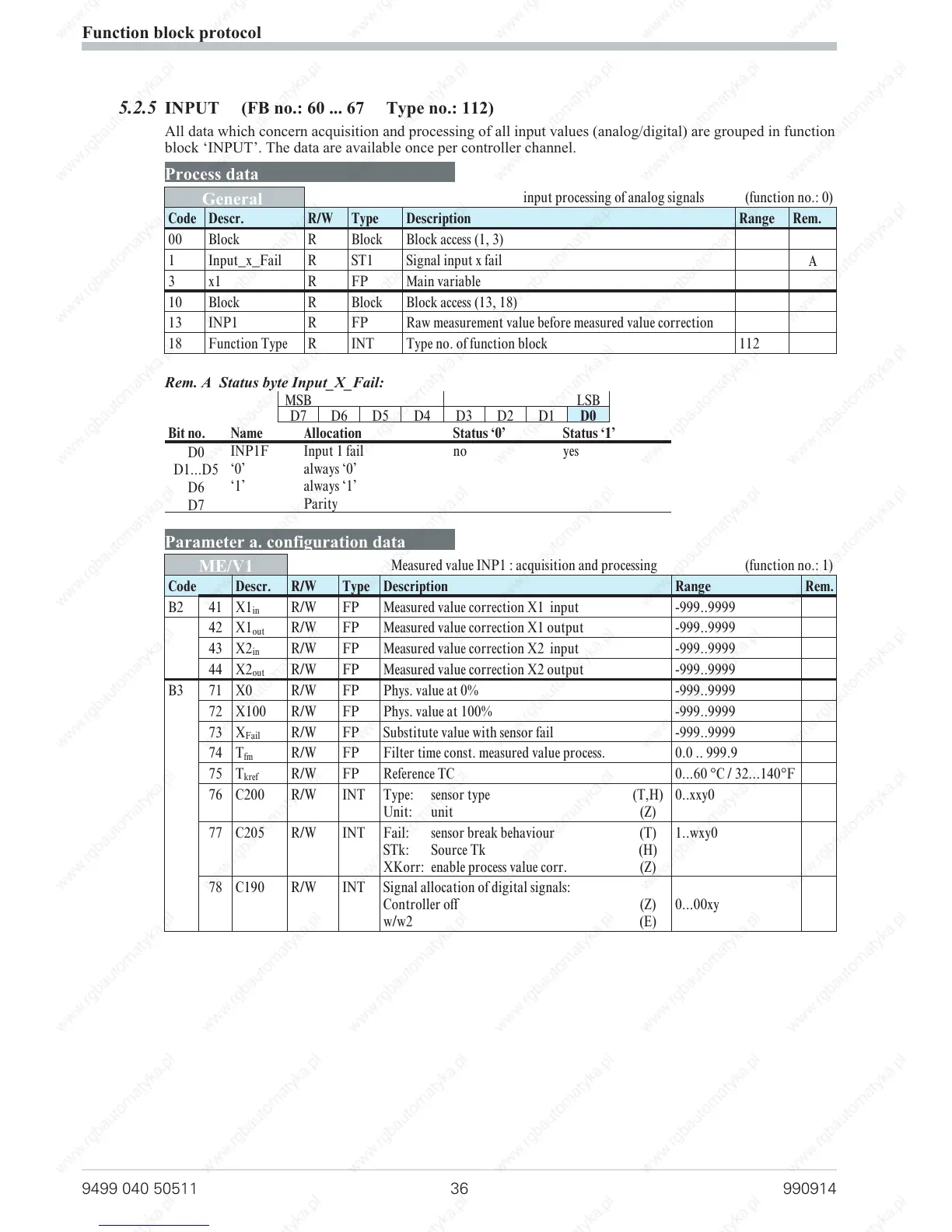

5.2.5 INPUT (FB no.: 60 ... 67 Type no.: 112)
All data which concern acquisition and processing of all input values (analog/digital) are grouped in function
block ‘INPUT’. The data are available once per controller channel.
Process data
General
input processing of analog signals (function no.: 0)
Code Descr. R/W Type Description Range Rem.
00 Block R Block Block access (1, 3)
1 Input_x_Fail R ST1 Signal input x fail
A
3 x1 R FP Main variable
10 Block R Block Block access (13, 18)
13 INP1 R FP Raw measurement value before measured value correction
18 Function Type R INT Type no. of function block 112
Rem. A Status byte Input_X_Fail:
MSB LSB
D7 D6 D5 D4 D3 D2 D1 D0
Bit no. Name Allocation Status ‘0’ Status ‘1’
D0
INP1F Input 1 fail no yes
D1...D5
‘0’ always ‘0’
D6
‘1’ always ‘1’
D7
Parity
Parameter a. configuration data
ME/V1
Measured value INP1 : acquisition and processing (function no.: 1)
Code Descr. R/W Type Description Range Rem.
B2 41 X1
in
R/W FP Measured value correction X1 input -999..9999
42 X1
out
R/W FP Measured value correction X1 output -999..9999
43 X2
in
R/W FP Measured value correction X2 input -999..9999
44 X2
out
R/W FP Measured value correction X2 output -999..9999
B3 71 X0 R/W FP Phys. value at 0% -999..9999
72 X100 R/W FP Phys. value at 100% -999..9999
73 X
Fail
R/W FP Substitute value with sensor fail -999..9999
74 T
fm
R/W FP Filter time const. measured value process. 0.0 .. 999.9
75 T
kref
R/W FP Reference TC 0...60 °C / 32...140°F
76 C200 R/W INT Type: sensor type
Unit: unit
(T,H)
(Z)
0..xxy0
77 C205 R/W INT Fail: sensor break behaviour
STk: Source Tk
XKorr: enable process value corr.
(T)
(H)
(Z)
1..wxy0
78 C190 R/W INT Signal allocation of digital signals:
Controller off
w/w2
(Z)
(E)
0...00xy
