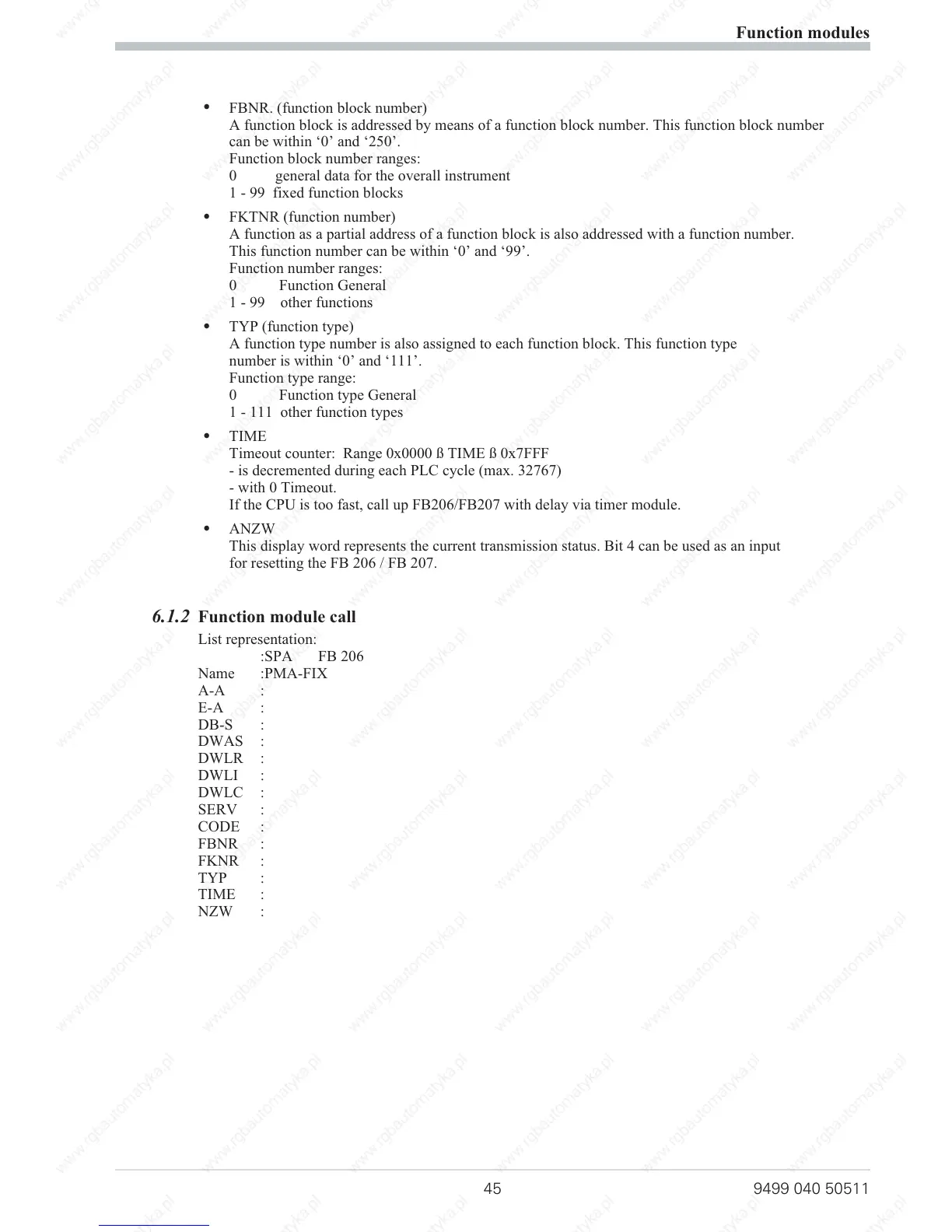

FBNR. (function block number)
A function block is addressed by means of a function block number. This function block number
can be within ‘0’ and ‘250’.
Function block number ranges:
0 general data for the overall instrument
1 - 99 fixed function blocks
w
FKTNR (function number)
A function as a partial address of a function block is also addressed with a function number.
This function number can be within ‘0’ and ‘99’.
Function number ranges:
0 Function General
1 - 99 other functions
w
TYP (function type)
A function type number is also assigned to each function block. This function type
number is within ‘0’ and ‘111’.
Function type range:
0 Function type General
1 - 111 other function types
w
TIME
Timeout counter: Range 0x0000 ß TIME ß 0x7FFF
- is decremented during each PLC cycle (max. 32767)
- with 0 Timeout.
If the CPU is too fast, call up FB206/FB207 with delay via timer module.
w
ANZW
This display word represents the current transmission status. Bit 4 can be used as an input
for resetting the FB 206 / FB 207.
6.1.2 Function module call
List representation:
:SPA FB 206
Name :PMA-FIX
A-A :
E-A :
DB-S :
DWAS :
DWLR :
DWLI :
DWLC :
SERV :
CODE :
FBNR :
FKNR :
TYP :
TIME :
NZW :
