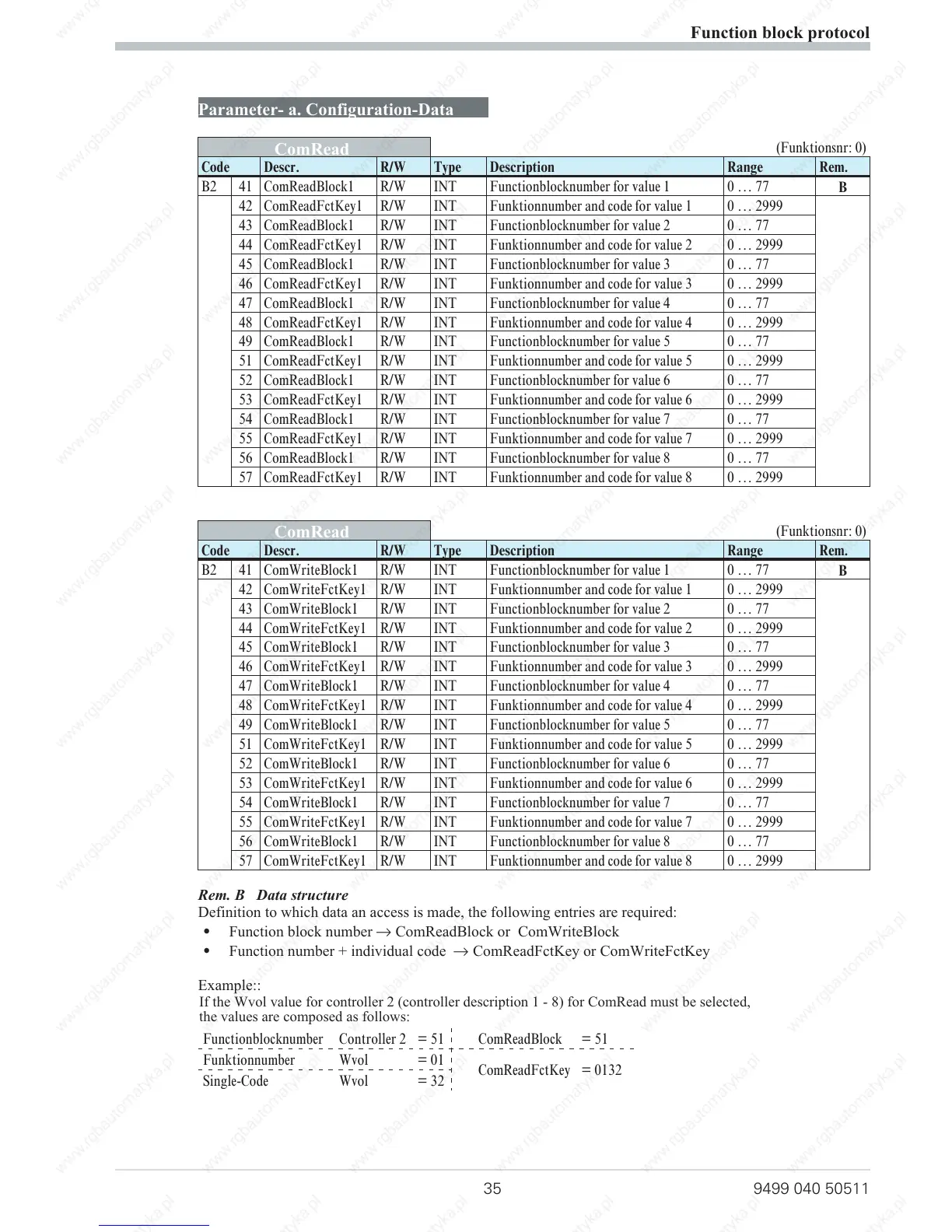

Parameter- a. Configuration-Data
ComRead
(Funktionsnr: 0)
Code Descr. R/W Type Description Range Rem.
B2 41 ComReadBlock1 R/W INT Functionblocknumber for value 1 0 … 77
B
42 ComReadFctKey1 R/W INT Funktionnumber and code for value 1 0 … 2999
43 ComReadBlock1 R/W INT Functionblocknumber for value 2 0 … 77
44 ComReadFctKey1 R/W INT Funktionnumber and code for value 2 0 … 2999
45 ComReadBlock1 R/W INT Functionblocknumber for value 3 0 … 77
46 ComReadFctKey1 R/W INT Funktionnumber and code for value 3 0 … 2999
47 ComReadBlock1 R/W INT Functionblocknumber for value 4 0 … 77
48 ComReadFctKey1 R/W INT Funktionnumber and code for value 4 0 … 2999
49 ComReadBlock1 R/W INT Functionblocknumber for value 5 0 … 77
51 ComReadFctKey1 R/W INT Funktionnumber and code for value 5 0 … 2999
52 ComReadBlock1 R/W INT Functionblocknumber for value 6 0 … 77
53 ComReadFctKey1 R/W INT Funktionnumber and code for value 6 0 … 2999
54 ComReadBlock1 R/W INT Functionblocknumber for value 7 0 … 77
55 ComReadFctKey1 R/W INT Funktionnumber and code for value 7 0 … 2999
56 ComReadBlock1 R/W INT Functionblocknumber for value 8 0 … 77
57 ComReadFctKey1 R/W INT Funktionnumber and code for value 8 0 … 2999
ComRead
(Funktionsnr: 0)
Code Descr. R/W Type Description Range Rem.
B2 41 ComWriteBlock1 R/W INT Functionblocknumber for value 1 0 … 77
B
42 ComWriteFctKey1 R/W INT Funktionnumber and code for value 1 0 … 2999
43 ComWriteBlock1 R/W INT Functionblocknumber for value 2 0 … 77
44 ComWriteFctKey1 R/W INT Funktionnumber and code for value 2 0 … 2999
45 ComWriteBlock1 R/W INT Functionblocknumber for value 3 0 … 77
46 ComWriteFctKey1 R/W INT Funktionnumber and code for value 3 0 … 2999
47 ComWriteBlock1 R/W INT Functionblocknumber for value 4 0 … 77
48 ComWriteFctKey1 R/W INT Funktionnumber and code for value 4 0 … 2999
49 ComWriteBlock1 R/W INT Functionblocknumber for value 5 0 … 77
51 ComWriteFctKey1 R/W INT Funktionnumber and code for value 5 0 … 2999
52 ComWriteBlock1 R/W INT Functionblocknumber for value 6 0 … 77
53 ComWriteFctKey1 R/W INT Funktionnumber and code for value 6 0 … 2999
54 ComWriteBlock1 R/W INT Functionblocknumber for value 7 0 … 77
55 ComWriteFctKey1 R/W INT Funktionnumber and code for value 7 0 … 2999
56 ComWriteBlock1 R/W INT Functionblocknumber for value 8 0 … 77
57 ComWriteFctKey1 R/W INT Funktionnumber and code for value 8 0 … 2999
Rem. B Data structure
Definition to which data an access is made, the following entries are required:
w
Function block number r ComReadBlock or ComWriteBlock
w
Function number + individual code r ComReadFctKey or ComWriteFctKey
Example::
If the Wvol value for controller 2 (controller description1-8)forComRead must be selected,
the values are composed as follows:
Functionblocknumber Controller 2 = 51 ComReadBlock = 51
Funktionnumber Wvol = 01
ComReadFctKey = 0132
Single-Code Wvol = 32
Function block protocol
35 9499 040 50511
