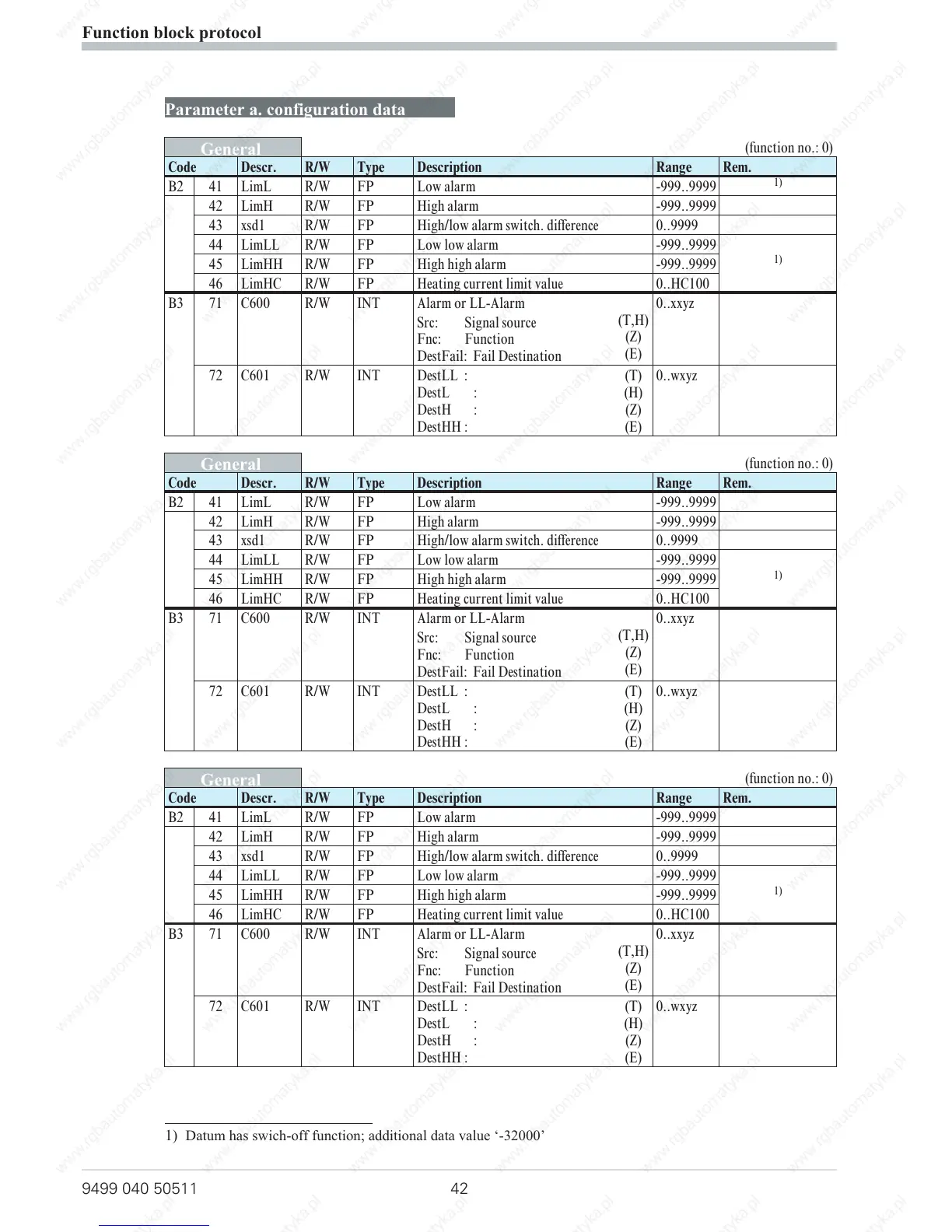

PMA KS800 - Page 44

Parameter a. configuration data
General
(function no.: 0)
Code Descr. R/W Type Description Range Rem.
B2 41 LimL R/W FP Low alarm -999..9999
1)
42 LimH R/W FP High alarm -999..9999
43 xsd1 R/W FP High/low alarm switch. difference 0..9999
44 LimLL R/W FP Low low alarm -999..9999
1)
45 LimHH R/W FP High high alarm -999..9999
46 LimHC R/W FP Heating current limit value 0..HC100
B3 71 C600 R/W INT Alarm or LL-Alarm
Src: Signal source
Fnc: Function
DestFail: Fail Destination
(T,H)
(Z)
(E)
0..xxyz
72 C601 R/W INT DestLL :
DestL :
DestH :
DestHH :
(T)
(H)
(Z)
(E)
0..wxyz
General
(function no.: 0)
Code Descr. R/W Type Description Range Rem.
B2 41 LimL R/W FP Low alarm -999..9999
42 LimH R/W FP High alarm -999..9999
43 xsd1 R/W FP High/low alarm switch. difference 0..9999
44 LimLL R/W FP Low low alarm -999..9999
1)
45 LimHH R/W FP High high alarm -999..9999
46 LimHC R/W FP Heating current limit value 0..HC100
B3 71 C600 R/W INT Alarm or LL-Alarm
Src: Signal source
Fnc: Function
DestFail: Fail Destination
(T,H)
(Z)
(E)
0..xxyz
72 C601 R/W INT DestLL :
DestL :
DestH :
DestHH :
(T)
(H)
(Z)
(E)
0..wxyz
General
(function no.: 0)
Code Descr. R/W Type Description Range Rem.
B2 41 LimL R/W FP Low alarm -999..9999
42 LimH R/W FP High alarm -999..9999
43 xsd1 R/W FP High/low alarm switch. difference 0..9999
44 LimLL R/W FP Low low alarm -999..9999
1)
45 LimHH R/W FP High high alarm -999..9999
46 LimHC R/W FP Heating current limit value 0..HC100
B3 71 C600 R/W INT Alarm or LL-Alarm
Src: Signal source
Fnc: Function
DestFail: Fail Destination
(T,H)
(Z)
(E)
0..xxyz
72 C601 R/W INT DestLL :
DestL :
DestH :
DestHH :
(T)
(H)
(Z)
(E)
0..wxyz
Function block protocol
9499 040 50511 42
1) Datum has swich-off function; additional data value ‘-32000’
