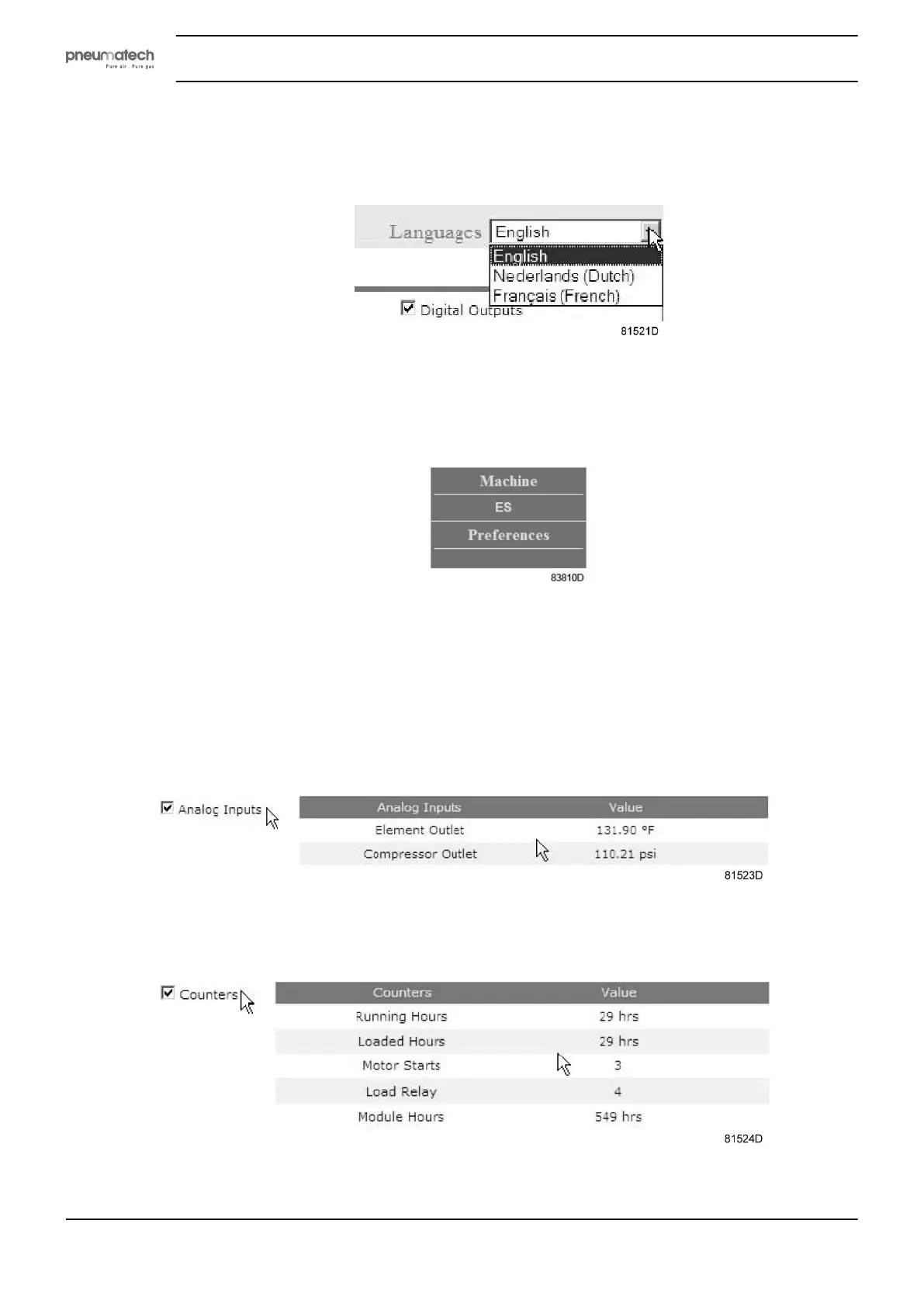

Navigation and options
• The banner shows the unit type and the language selector. In this example, three languages are
available on the controller.
• On the left side of the interface, you can find the navigation menu.
If a license for ESi is foreseen, the menu contains 3 buttons.
• Machine: shows all generator settings.
• ES: shows the ESi status (if a license is provided).
• Preferences: allows to change temperature and pressure unit.
Unit settings
All unit settings can be displayed or hidden. Put a check mark in front of each point of interest and it will
be displayed. Only the machine status is fixed and can not be removed from the main screen.
Analog inputs
Lists all current analog input values. The measurement units can be changed in the preference button from
the navigation menu.
Counters
Lists all current counter values from controller and unit.
Info status
Instruction book
40 2920 1891 00
