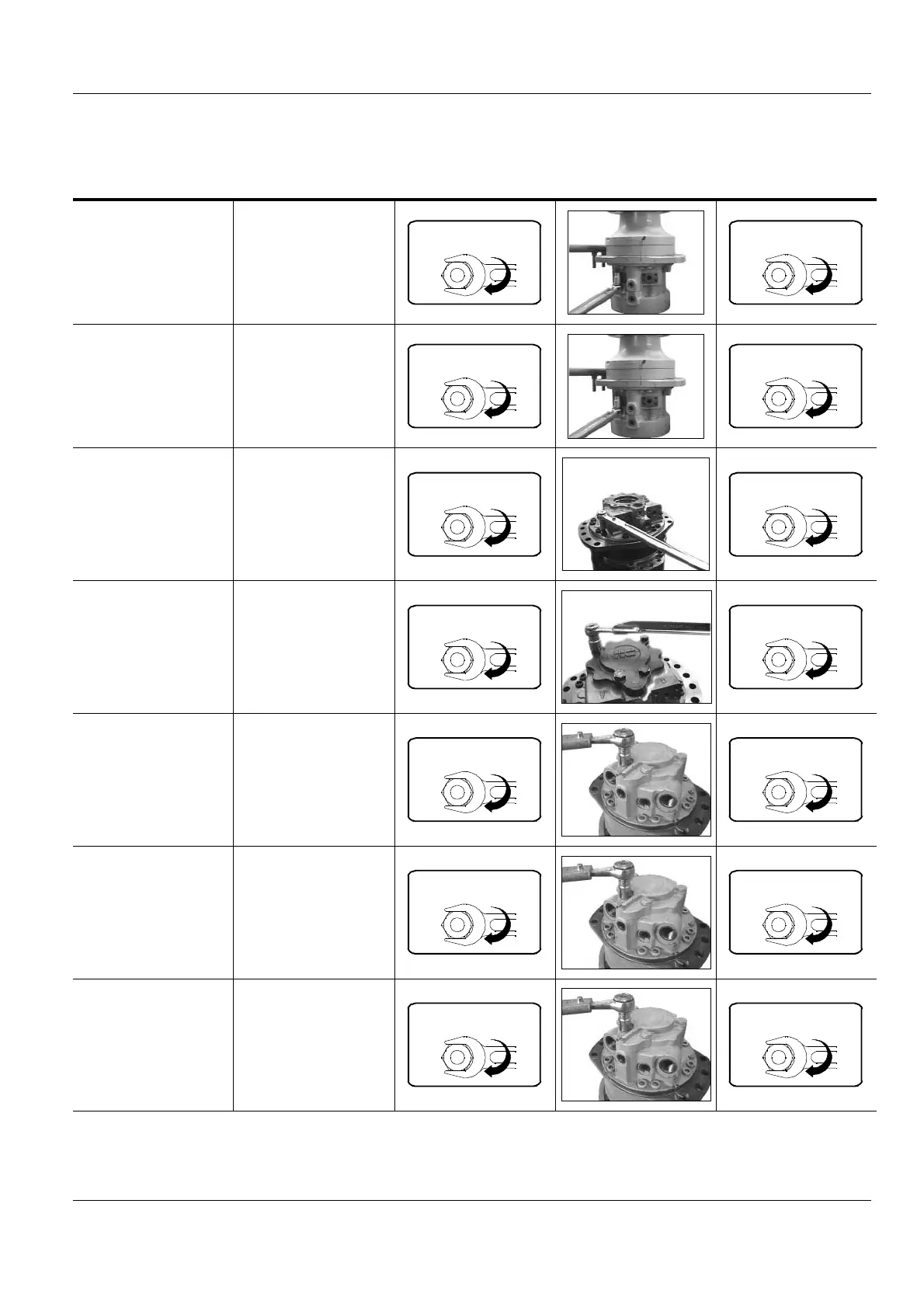

poclain hydraulics MS02 - Tightening Torque Summary

POCLAIN HYDRAULICS
677777845L DOC-REPAIR-MS02-MS18-FR-EN 73
Résumé des couples de
serrage
Tightening torque summary
Remplacement du
palier (070) MS02
MS05 MS08
Vis (042) Page 45
Replacement of the
bearing support (070)
MS02 MS05 MS08
Screw (042) page 45
145±14 N.m
107±10 lbf.ft
Remplacement du
palier (070) MS11
M
S18 Vis (042)
Page 45
Replacement of the
bearing support (070)
MS11 MS18
Screw (042) page 45
355±35 N.m
262±26 lbf.ft
Remplacement du
palier DYNA +
Page 50
Replacement of the
DYNA + bearing
support page 50
355±35 N.m
262±26 lbf.ft
Plaque de fermeture
Palier DYNA+ page51
End cover DYNA+
bearing support page
51
49±5 N.m
36±4 lbf.ft
Plaque de fermeture
MS02 MS05 moteur
non freiné
Vis (066) page 66
End cover MS02
MS05
motor without brake
Screw (066) page 66
49±5 N.m
36±4 lbf.ft
Plaque de fermeture
MS08 moteur non
freiné
Vis (066) page 66
End cover MS08
motor without brake
Screw (066) page 66
86±9 N.m
63.4±6 lbf.ft
Plaque de fermeture
MS11 MS18 moteur
non freiné
Vis (066) page 66
End cover MS11
MS18
motor without brake
Screw (066) page 66
210±21 N.m
155±15 lbf.ft
