Note: The safety distance between the hotplate and the cupboard
above the hotplate should be at least 760 mm.
Under any circumstances, make sure the Induction cooker hob is well
ventilated and the air inlet and outlet are not blocked. Ensure the

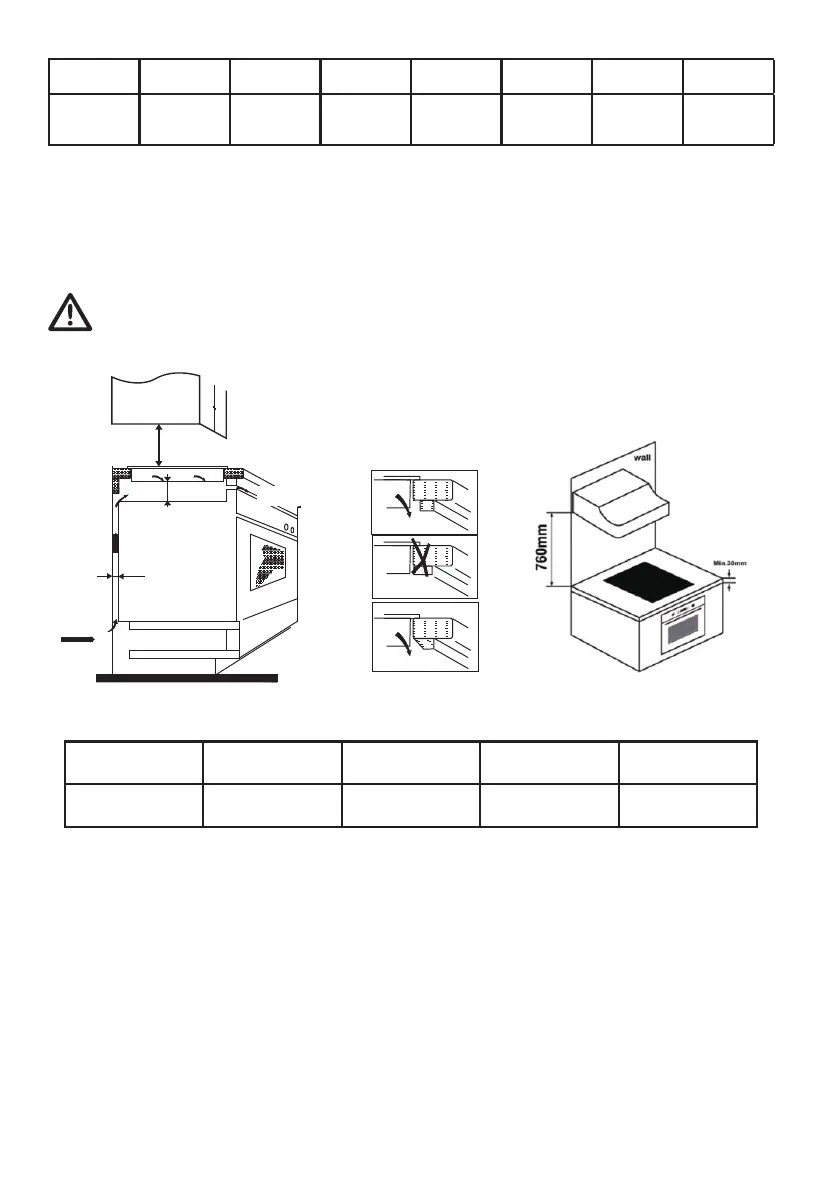

induction cooker hob is in good work state. As shown below
L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm) F (mm)
770 520 60 56 50 min. 3 min.
750+4
+1
495+4
+1
A
B
C
E
D
A (mm) B (mm) C (mm) D E
760 50 min. 20 min. Air intake Air exit 5mm
WARNING: Ensuring Adequate Ventilation
Make sure the induction cooker hob is well ventilated and that air inlet and
outlet are not blocked. In order to avoid accidental touch with the
overheating bottom of the hob, or getting unexpectable electric shock
during working, it is necessary to put a wooden insert, fixed by screws, at
a minimum distance of 50mm from the bottom of the hob. Follow the
requirements below.
