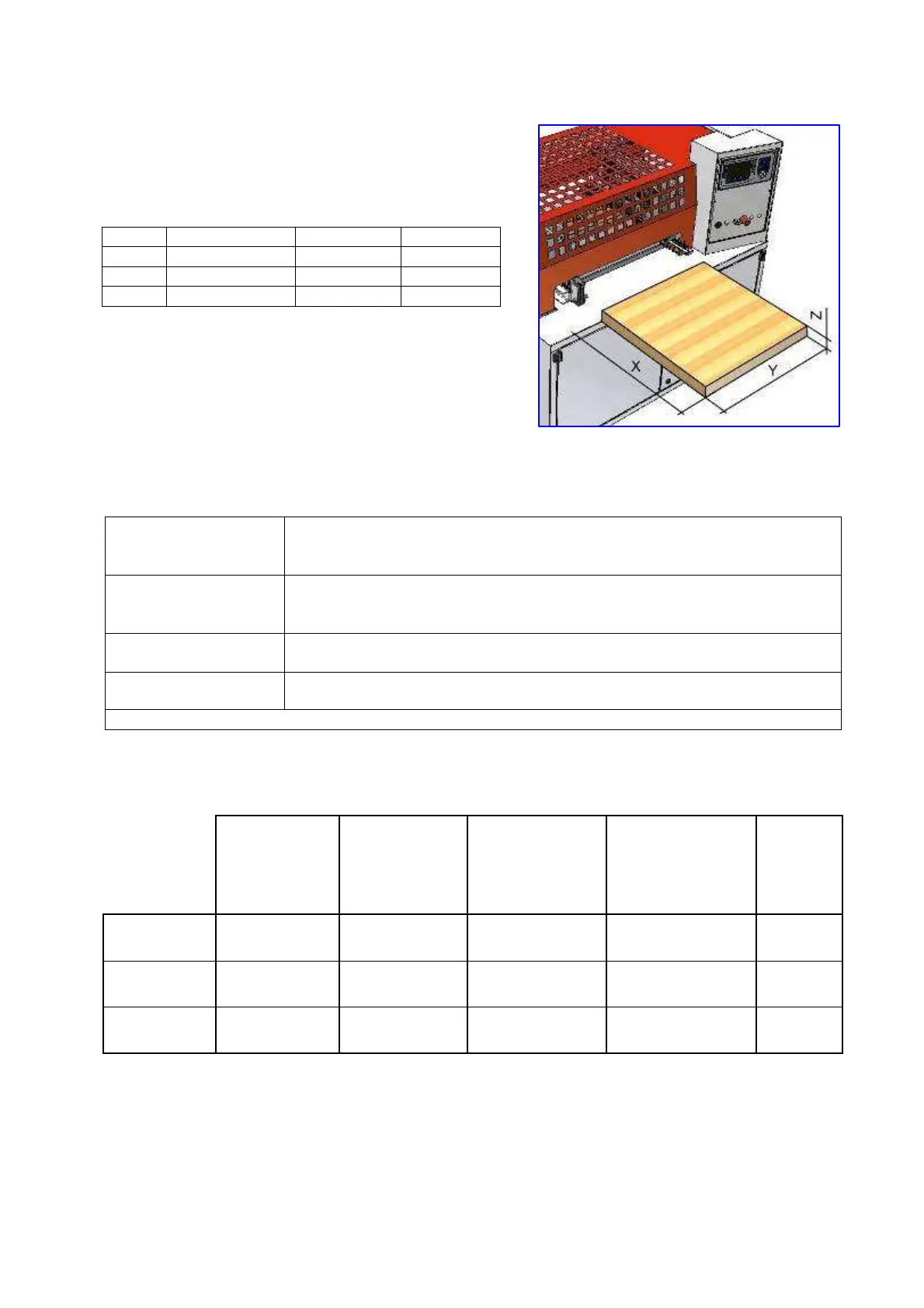

MAXIMUM PANEL DIMENSION
TOOL FEATURES
Vertical spindle
cylindrical bits stems of 10 x 20 diameter and bits of Min. 30mm – Max
60mm (fitting not included).
Horizontal spindle
cylindrical bits stems of 10 x 20 diameter and bits of Min. 30mm – Max
37.5mm (fitting not included).
Groove tool
circular sawblades ø 120mm hole ø30mm
Router tool
Collet ER32, tool diameter Max 20mm tool lenght Min. 30 Max 70mm
TOOLS OF THE VERTICAL SPINLDES AND ROUTER MUST HAVE EQUAL LENGTH
ABSORPTIONS MACHINE
The voltages listed below are available in all of our models, for special voltages please contact our
technical department.
Lenght Width Height
Size
X Y Z
Min
270mm 150mm 12mm
Max
3000mm/30kg 920mm 35mm
Optional
220-240V
Absorption
(A)
380V
Absorption
(A)
415V
Absorption
(A)
460V
Absorption
(A)
Power
KW
without
optional
11,7 9,1 9,1 9,3 2,7
+ GROOVE
16,2 11,7 11,7 12,0 3,8
+ ROUTER
32,7 21,1 21,1 21,3 6,0
