Rel. 03
5

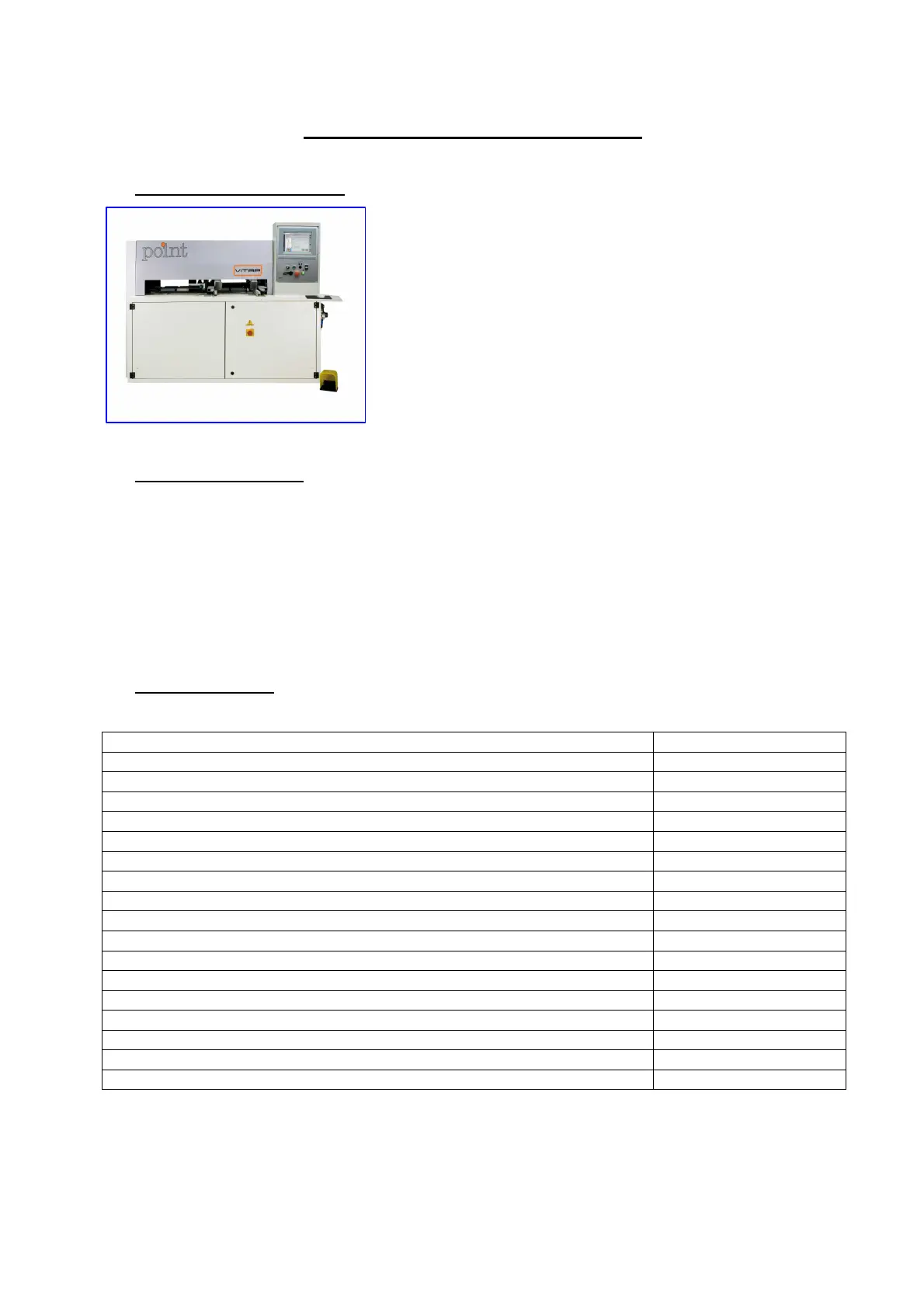

CHAPTER 2 TECHNICAL SPECIFICATIONS
2.1 MACHINE INTRODUCTION
POINT is a machine designed to drill panels in laminated and
non-laminated wooden chipboards, MDF, of a thickness of no
more than 35mm.
The operator interacts with the machine through the PC.
The operation of low 24Vdc voltage machine cycles takes
place through a P.L.C.
2.2 REFERENCE NORMS
Drillers have been designed and built in compliance with the European Dispositions:
2006/42/EC (MACHINE DISPOSITIONS).
2004/108/EC (E.M.C COMPATIBILITY).
2006/95/EC (LOW TENSION DISPOSITION).
2.3 SPECIFICATIONS
POINT bulk dimensions
1815x1335xh1600 mm.
Weight
820 KG.
Intake equipment capacity by 1 connecting with ø 120mm
850 m³/h.
Air consumption max.
60 NLt/min
Working pressure
0.6-0.8 MPa (6-8 ATM)
Horizontal displacement velocity panel on axis X
25m/min
Horizontal displacement velocity axis Z
15m/min
Horizontal displacement velocity axis Y
30m/min
Engine power, heads to drill
1,5 kW 2.27Hp
Amount of spindle revolutions
3500 RPM
MAX amount of horizontal spindles
2+2
MAX amount of vertical spindles
8
Horizontal spindle distance
32 mm.
Vertical spindle distance
32 mm.
ø MAX horizontal spindles
15mm
ø MAX vertical spindles
N°7x15mm N°1x35mm
MAX horizontal drilling depth 35mm
MAX vertical drilling depth
43mm
