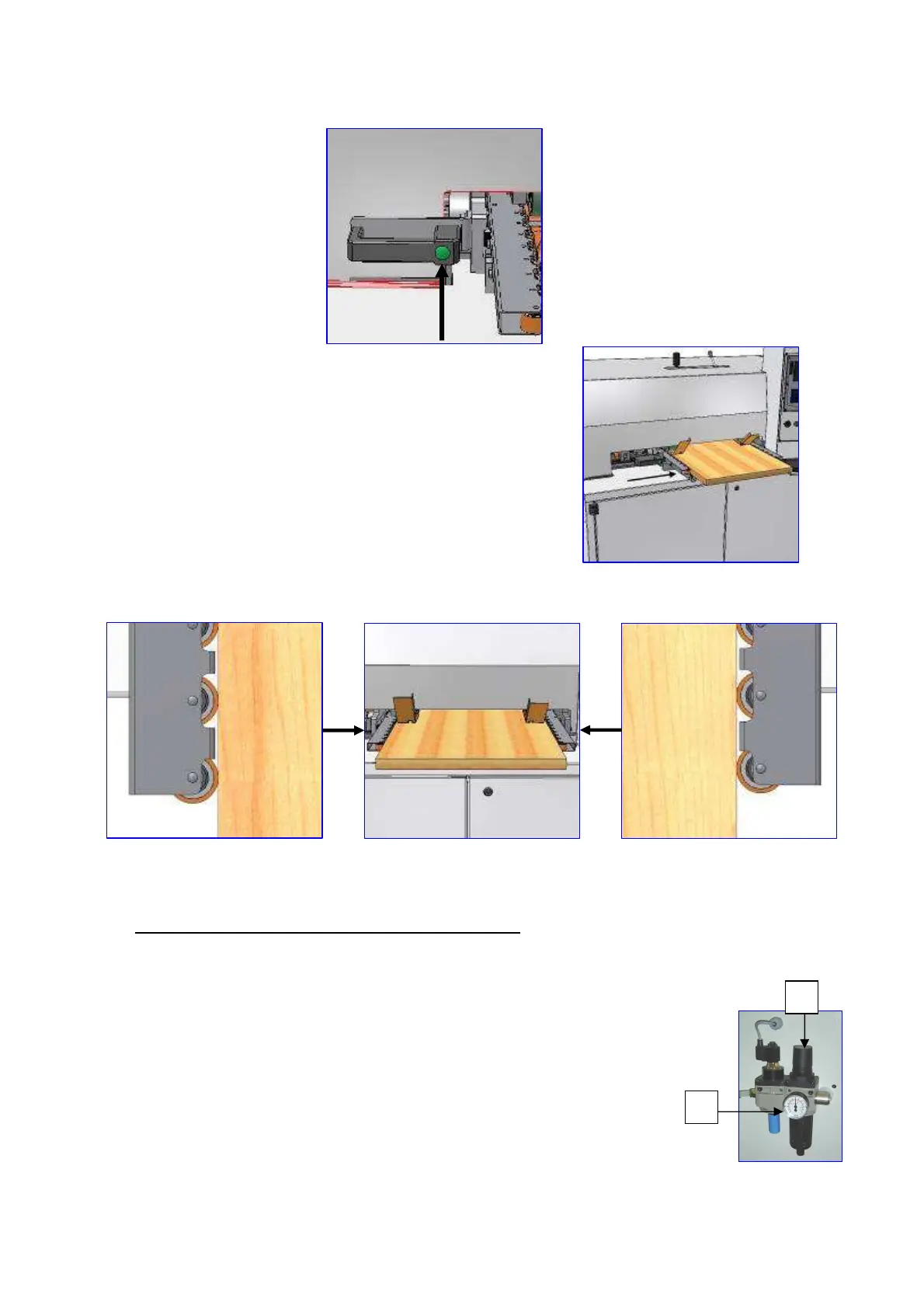

2) Press the button

3) Move the left shoulder, supporting her to the panel

4) The panel must be well supported

5) Release the button

6.3 FILTER-REDUCER-LUBRICATOR GROUP (F-R-L)

The correct use of the F-R-L group is the best guarantee for the normal work and long-life of the

machine.

FILTER: the function of the filter is to purify air from dust and humidity that

can damage the valves and gaskets of the air cylinders.

PRESSURE REDUCER: the pressure reducer allows the adjustment of the

machine working pressure at an optimum value.

To learn about the F-R group maintenance, see paragraph. PERIODICAL

MAINTENANCE.

Adjust the pressure rotating handle 1, as shown on the picture, and read the

pressure on the manometer 2.
