OPERATION
4-9
Positive current flowing through the track provides a tone and meter indication of the current flow.
Negative current will produce a zero reading, no tone and the PROBES REVERSED LED will light.
OK
WRONG
OK
WRONG

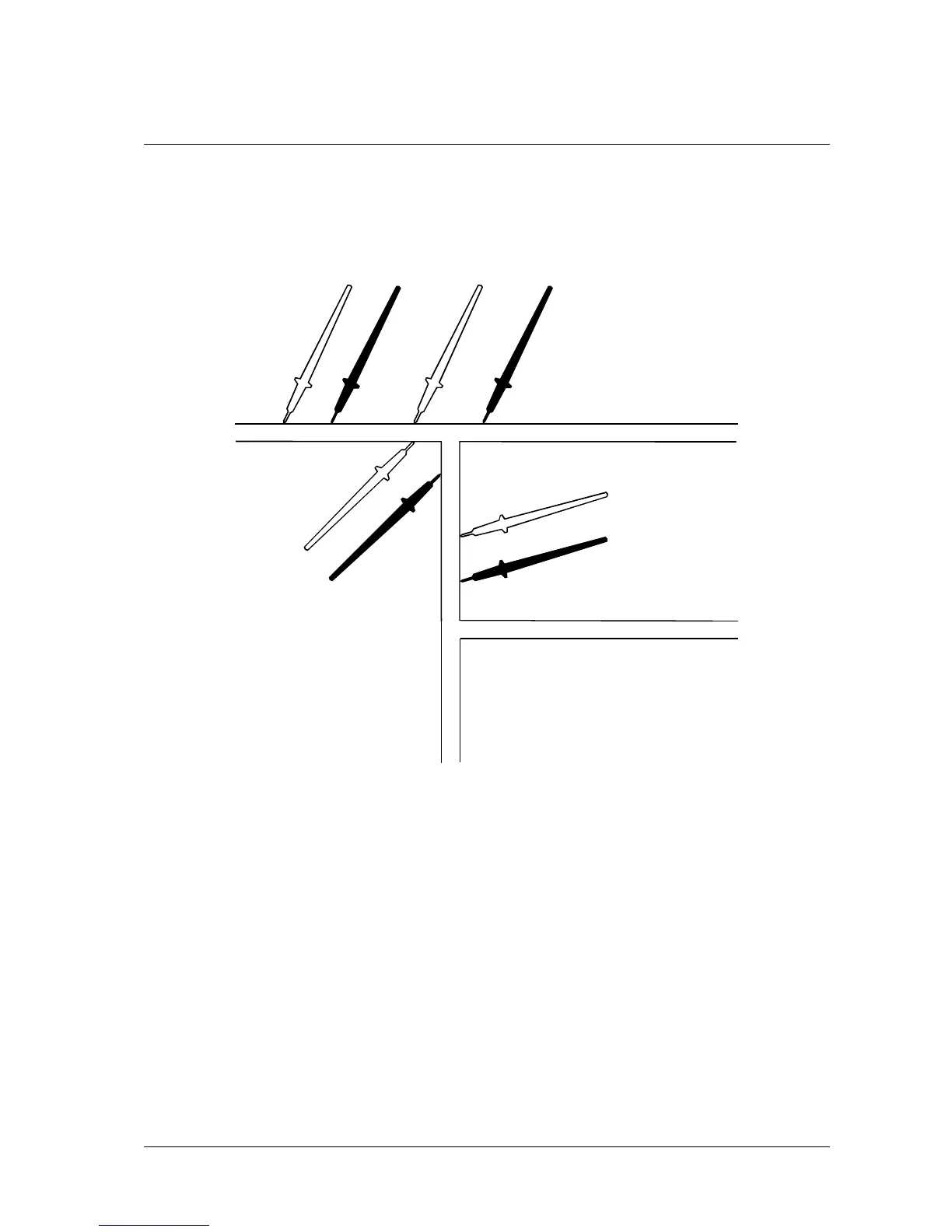

Figure 4-4 Track Current Probing
