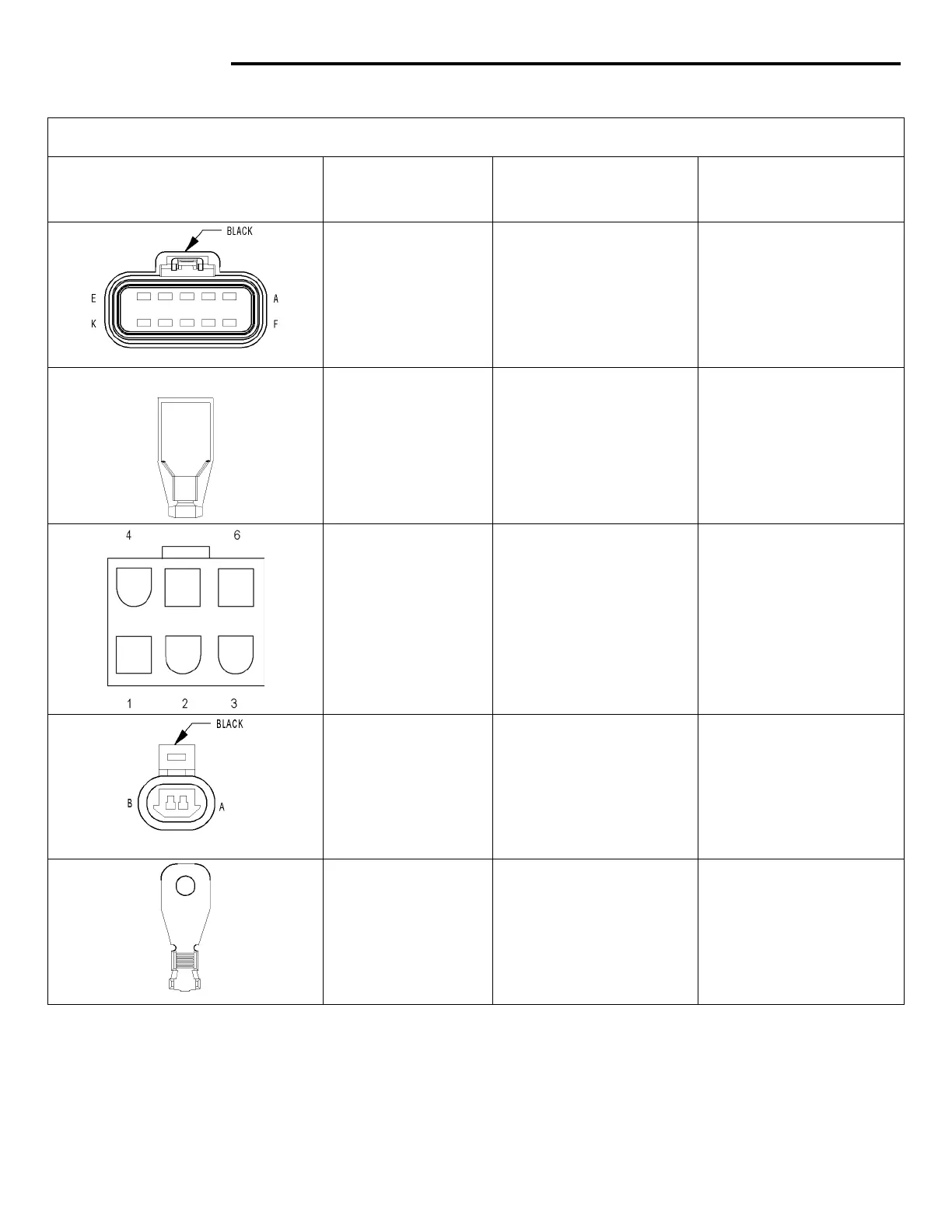

PIN LOCATIONS FOR FRONT HARNESS CONNECTORS
Connector Illustration Connector
Number
Connects To Number of Pins in
Connector
1 PSDM J1 10
2,3,4,5,6,9,10,11
Horn, Motor-Wiper
Switch-Brake Pressure,
Charger
1
7
Front
Harness
6
8
Switch-Brake
Level Fluid
2
11
12 Volt Ground
1
