BODY 7 - 22
UTILITY BED
DESCRIPTION (eS, eL, e6S)
The Utility Bed is an assembly designed to
transport various objects from one location to
another. It consists of 3 retaining rails, flat bed and
a rear wiring harness assembly.

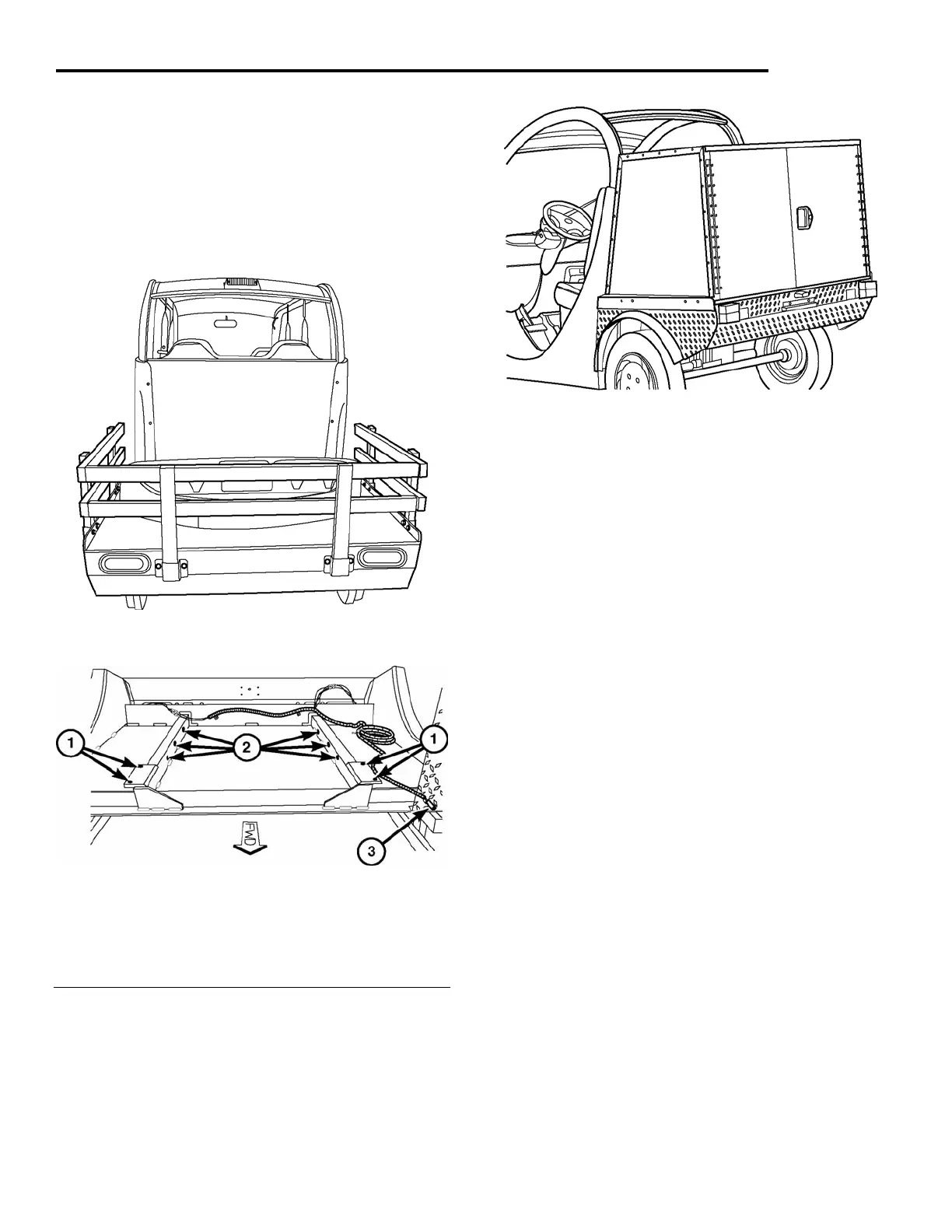

Fig. 18 Utility Bed – (e6S shown)
Fig. 19 Flat bed and harness (underneath view)
(e6S bed shown)
1 - Front bolts (4)
2 - Utility bed support bracket bolts (6)
3 - Rear tail light wire harness connector
Fig. 20 Cargo Carrier
REMOVAL
1. Remove the enclosed cargo carrier or bed
cover (if equipped).
2. Remove rear seat cushion.
3. Disconnect the rear tail light wire harness and
license plate light.
4. Remove the (4) front bolts, 2 each side.
5. Remove the (6) bolts, 3 each side from the
utility bed support bracket.
6. With the help of an assistant, remove the utility
bed.
INSTALLATION
1. With the help of an assistant, position the utility
bed.
2. Install the (4) front bolts, 2 each side.
3. Install the (6) bolts, 3 each side of the utility bed
support bracket.
4. Connect the rear tail light wire harness and
license plate light.
5. Install rear seat cushion.
6. Carefully position spat on vehicle.
