5 - 31 ELECTRICAL
GEM Service Manual November 2007

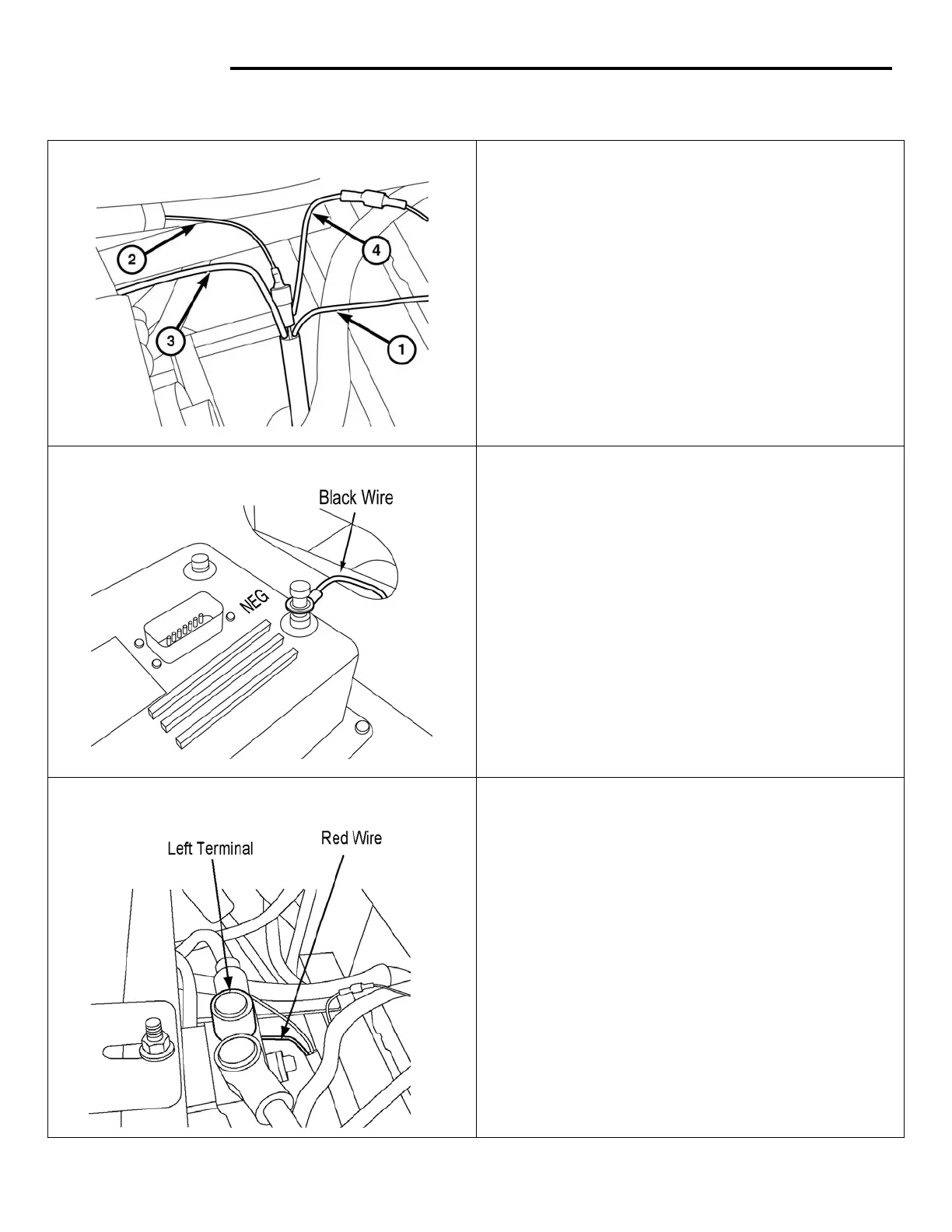

DELTA-Q WIRING ORIENTATION
1. Wires from the charger.
1. Black to motor controller negative.
2. Green to green spade in the front harness.
(Interlock Relay Circuit)
3. Red to the Contactor left terminal
4. White to black spade from the rear harness
(temp sensor harness).
2. Black wire detail.
• Connect the black wire to the negative
terminal on the controller.
• Torque to 50 in-lbs.
3. Red wire detail.
• Connect the red wire to the left terminal on the
contactor. As sitting in driver’s seat this is the
left terminal of the contactor.
• Torque to 120 in-lbs.
