Maintenance
Front Cab/Side Panel Removal

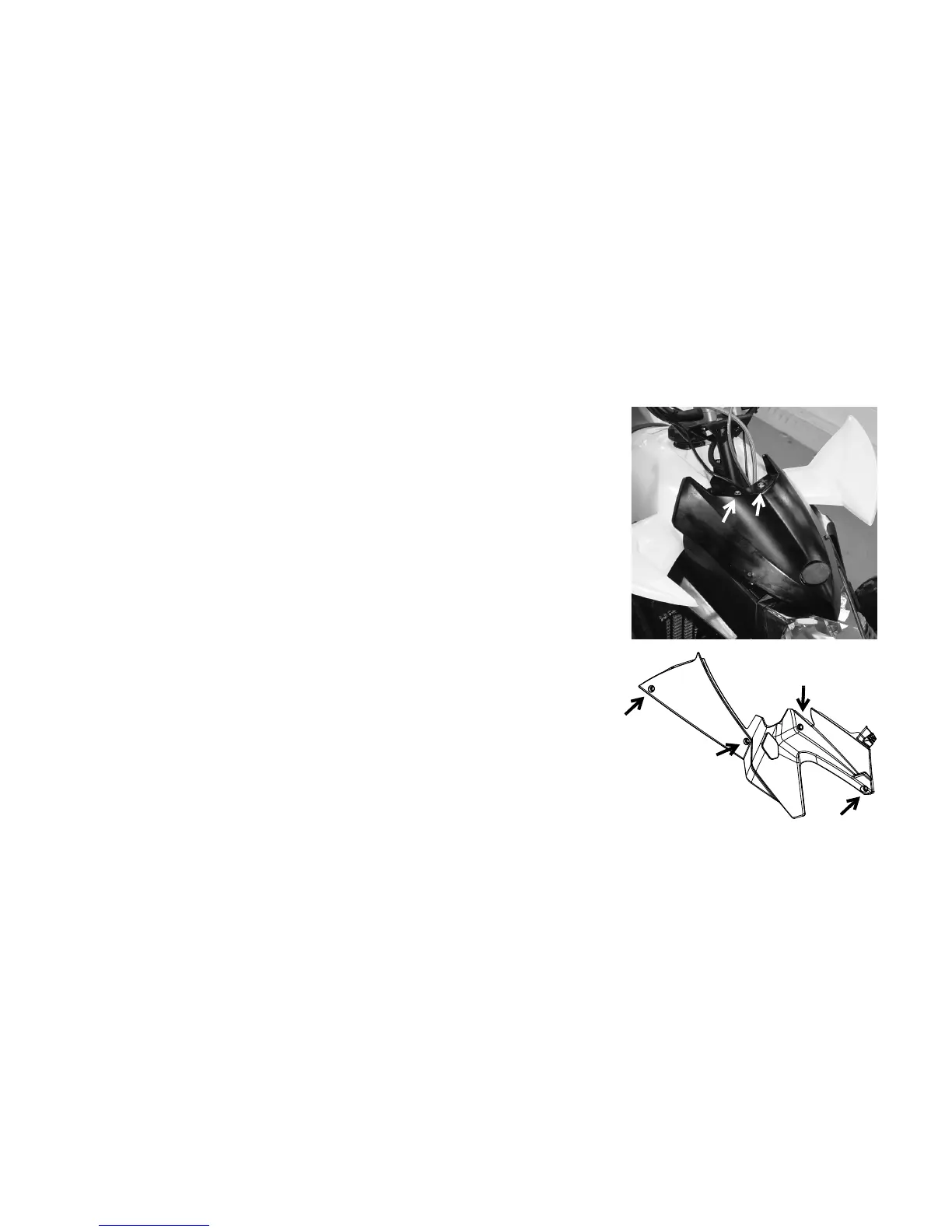

The front cab and side panel assembly is removed in one
piece.
1. Remove the seat.
2. Remove the two front cover screws and remove the front
cover.
3. Remove the eight side panel screws (four on each side).
4. Remove the fuel cap.
5. Gently pull the side panel/cab assembly upward and
rearward.
6. Unplug the key switch and the indicator panel before
removing the cab.
7. To remove a side panel from the cab, remove the corre-
sponding push pin and slide the panel forward to disen-
gage the locking tabs.
