BODY / STEERING / SUSPENSION
5.4

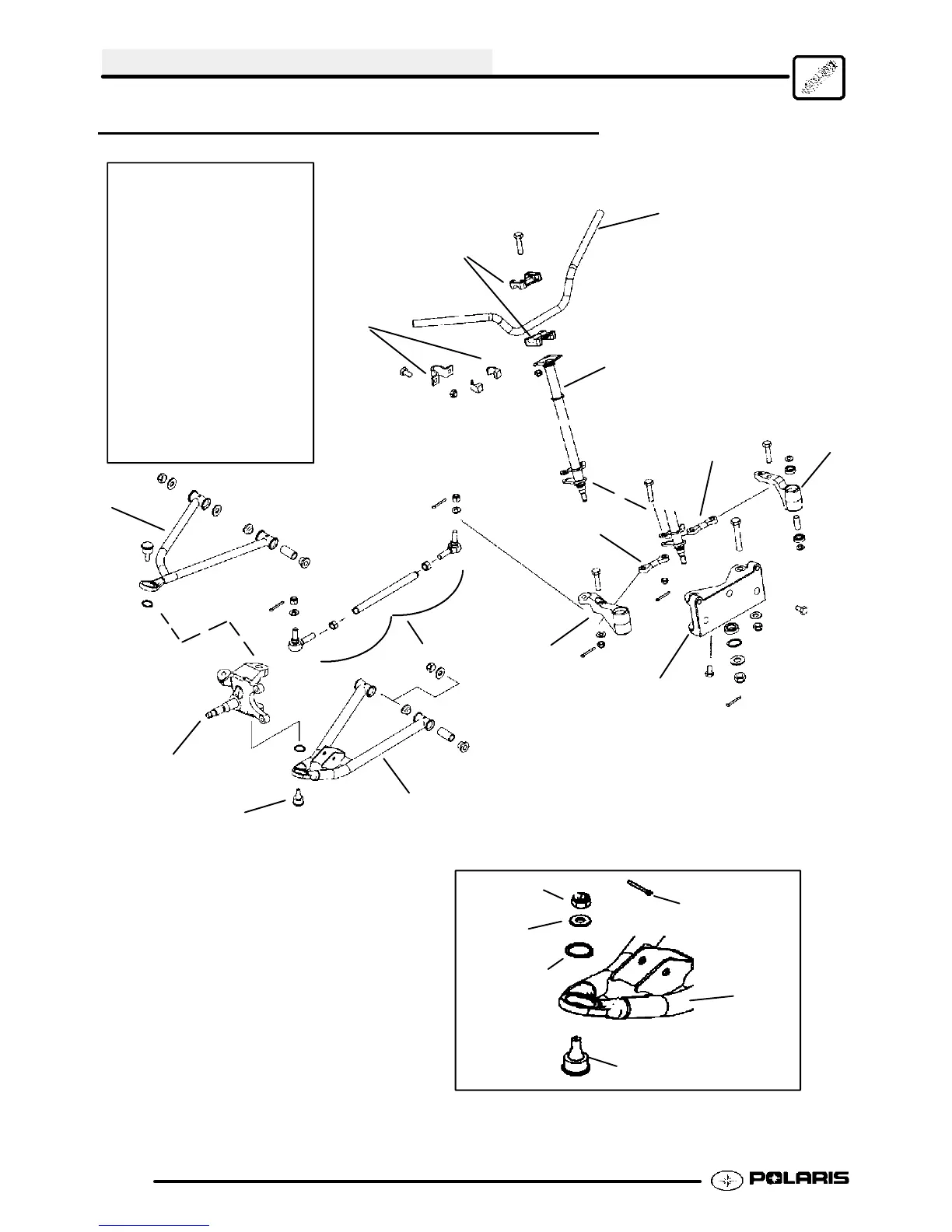

STEERING ASSEMBLY, EXPLODED VIEW
A
B
C
D
E
F
G
H
A. HANDLEBAR
B. BLOCK CLAMPS
C. STEERING BUSHINGS
D. STEERING POST
E. CENTERLINK
F. IDLER ASSEMBLY
G. STEERING MOUNT
BLOCK
H. TIE ROD ASSEMBLY
I. UPPER A--ARM
J. LOWER A--ARM
K. STEERING KNUCKLE
L. BALL JOINT
I
J
K
L
F
E
BALL JOINT
A--ARM
RETAINING
RING
WASHER
NUT
COTTER KEY
BALL JOINT CONFIGURATION
