BRAKES
6.21

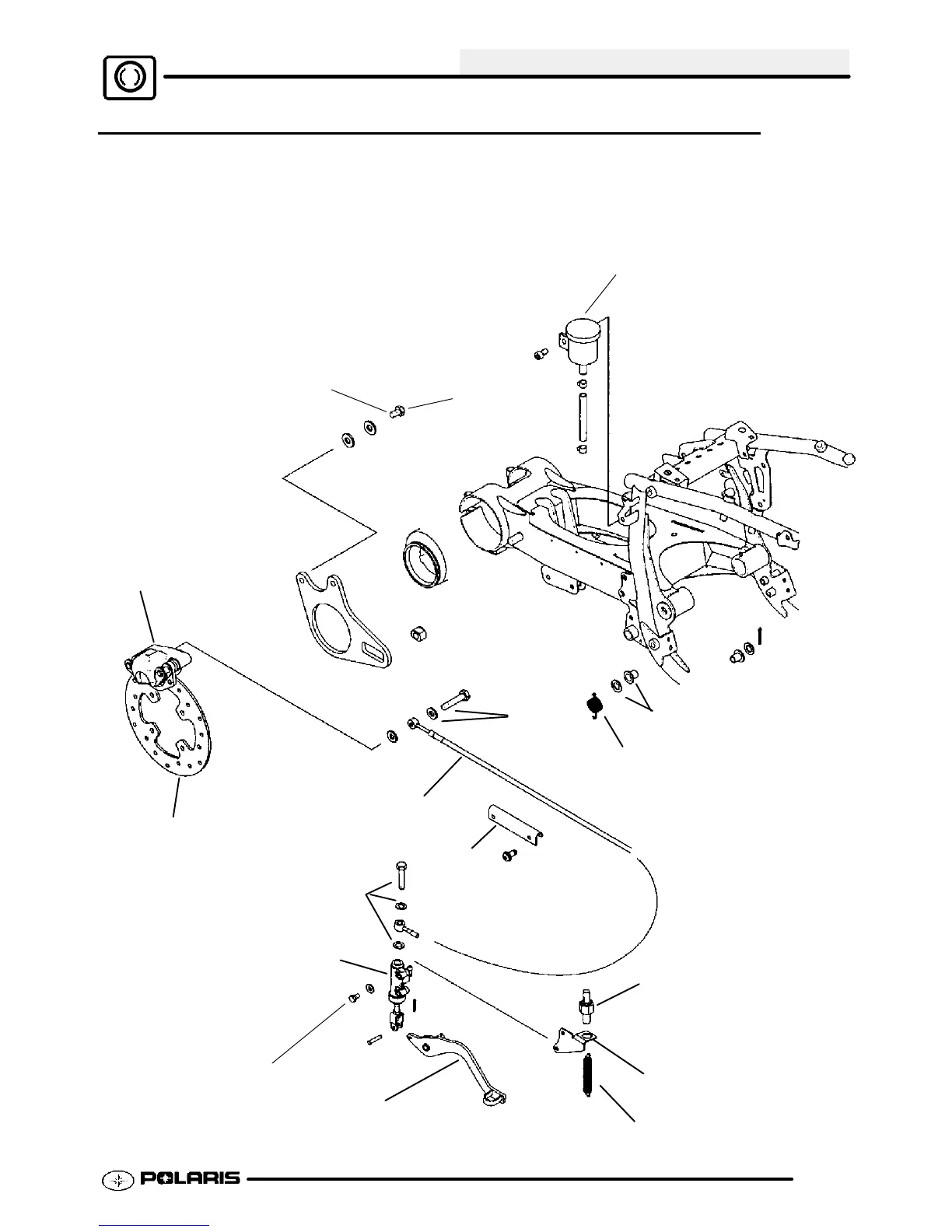

REAR BRAKE SYSTEM -- CALIPER/MASTER CYLINDER
18 ft. lbs.
24.8 Nm
A
O
8 ft. lbs.
11 Nm
A. Reservoir
B. Caliper Mount
C. Rear Caliper
D. Brake Disc
E. Brake Line
F. Line Retainer
G. Banjo Bolt & Washers
H. Master Cylinder
C
D
E
F
G
G
H
I
J
K
L
M
N
I. Foot Brake
J. Switch
K. Mount Bracket
L. Brake Pedal Return Spring
M. Foot Brake Torsion Spring
N. Bushing & Washer
O. Caliper Mounting Bolt
P. Brake Switch Spring
8 ft. lbs.
11 Nm
15 ft. lbs.
21 Nm
15 ft. lbs.
21 Nm
