BODY / STEERING / SUSPENSION
5.17

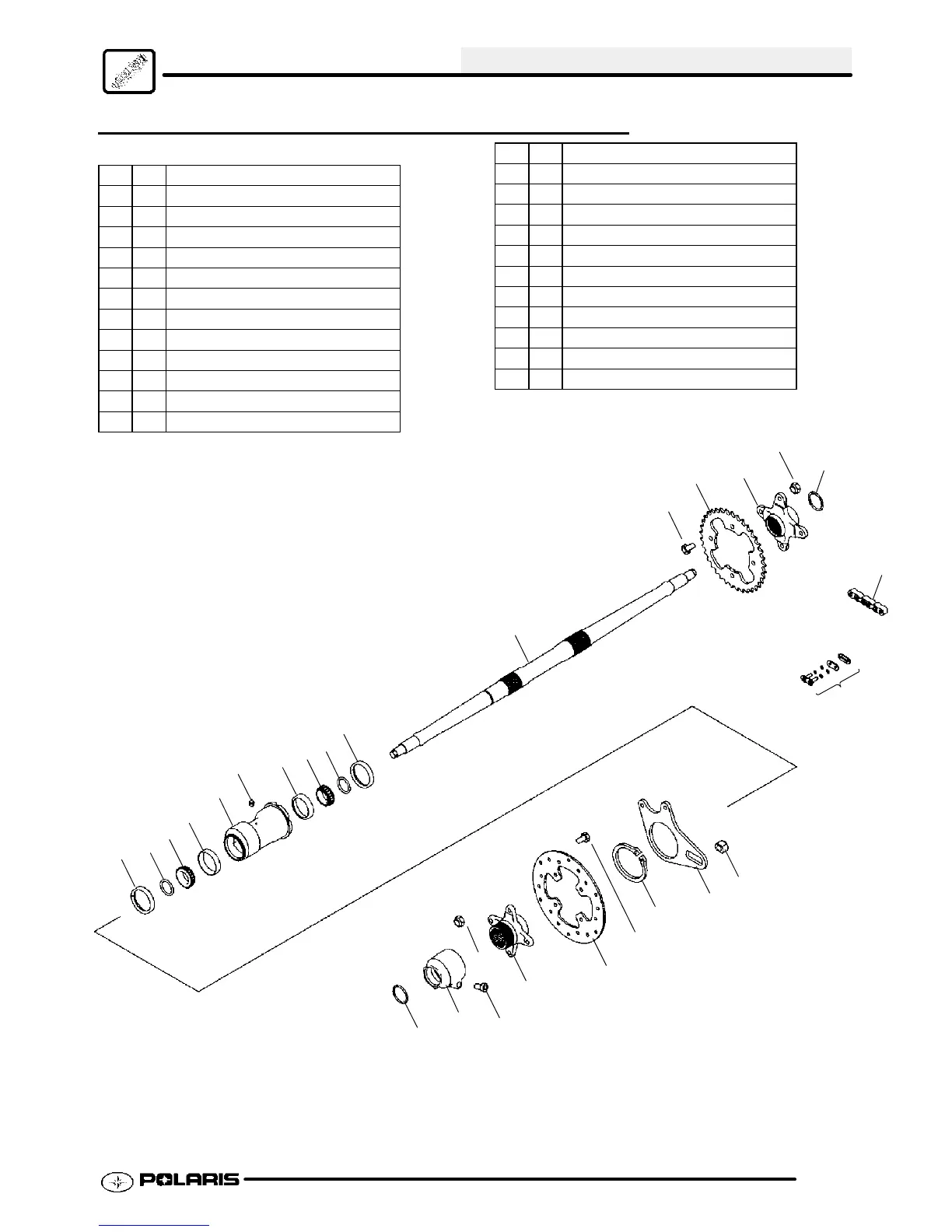

REAR SWING ARM / AXLE EXPLODED VIEW
Ref Qty Desciption
1. 2 Seal
2. 2 O-Ring
3. 2 Bearing, Cone, Taper
4. 2 Bearing, Cup, Taper
5. 1 Housing, Axle, Rear
6. 1 Fitting, Lubrication
7. 1 Axle, Rear
8. 4 Nut, Nylok
9. 1 Sprocket
10. 1 Hub, Sprocket
11. 4 Bolt
12. 1 Ring, Retaining
13. 1 Chain, 94P
14. 1 Link, Connector
15. 1 Bushing, Caliper
16. 1 Bracket, Caliper Mount
17. 1 Ring, External
18. 4 Nut, Nylok
19. 1 Disc, Brake
20. 1 Hub, Rear Disc
21. 4 Screw
22. 1 Screw
23. 1 Nut, Axle
24. 1 Ring, Retaining
1.
2.
3.
4.
5.
6.
7.
11.
9.
10.
8.
12.
24.
23.
18.
20.
19.
21.
17.
22.
16.
15.
13.
14.
4.
1.
3.
2.
