BODY / STEERING / SUSPENSION
5.28

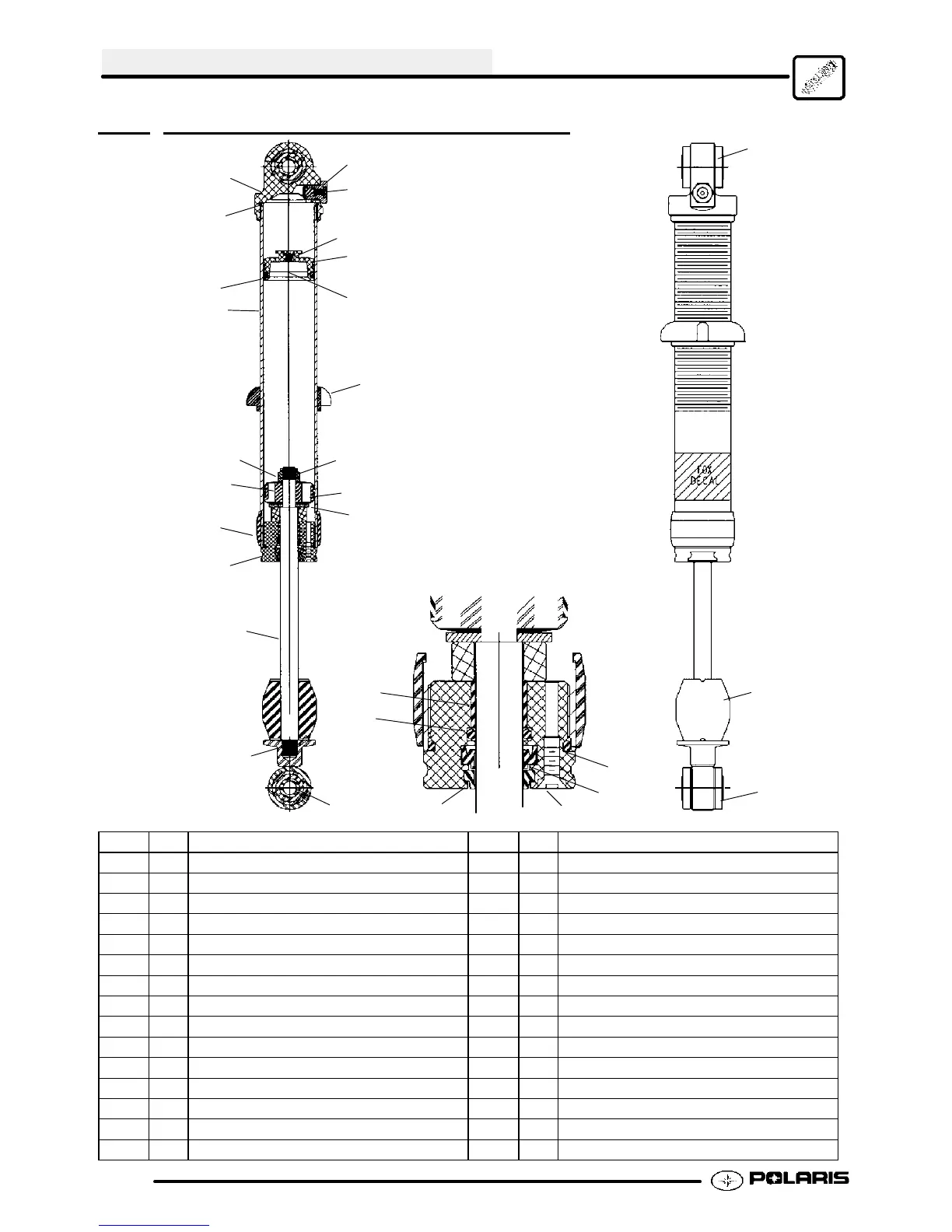

FOXt FRONT SHOCK EXPLODED VIEW
Ref. Qty Description Ref. Qty Description
15. 1 Nylon Preload Ring
1. 1 Body Cap 16. 1 Floating Piston
2. 1 O--Ring 17. 1 External Bearing
3. 1 O--Ring 18. 1 Screw, O--ring
4. 1 Body 19. 1 Screw
5. 1 Back Up Plate 20. 4 Air Valve
6. 1 Piston 21. 1 Bushing
7. 1 Guide Spring 22. 1 Bottom/Out Bumper
8. 1 Bearing 23. 1 O--Ring
9. 1 Shaft 24. 1 U--Cup
10. 1 Eyelet Assy. 25. 1 Screw
11. 2 Sleeve 26. 1 Wiper
12. 1 Top Out Plate 27. 1 O--Ring
13. 1 External Bearing 28. 1 Internal Bearing
14. 1 Lock Nut
22
14
19
7
9
15
1
20
2
18
17
3
16
6
12
5
8
23
28
27
24
26
11
4
10
21
25
21
13
