Polaris PREDATOR 2003 User Manual

BRAKES
6.19

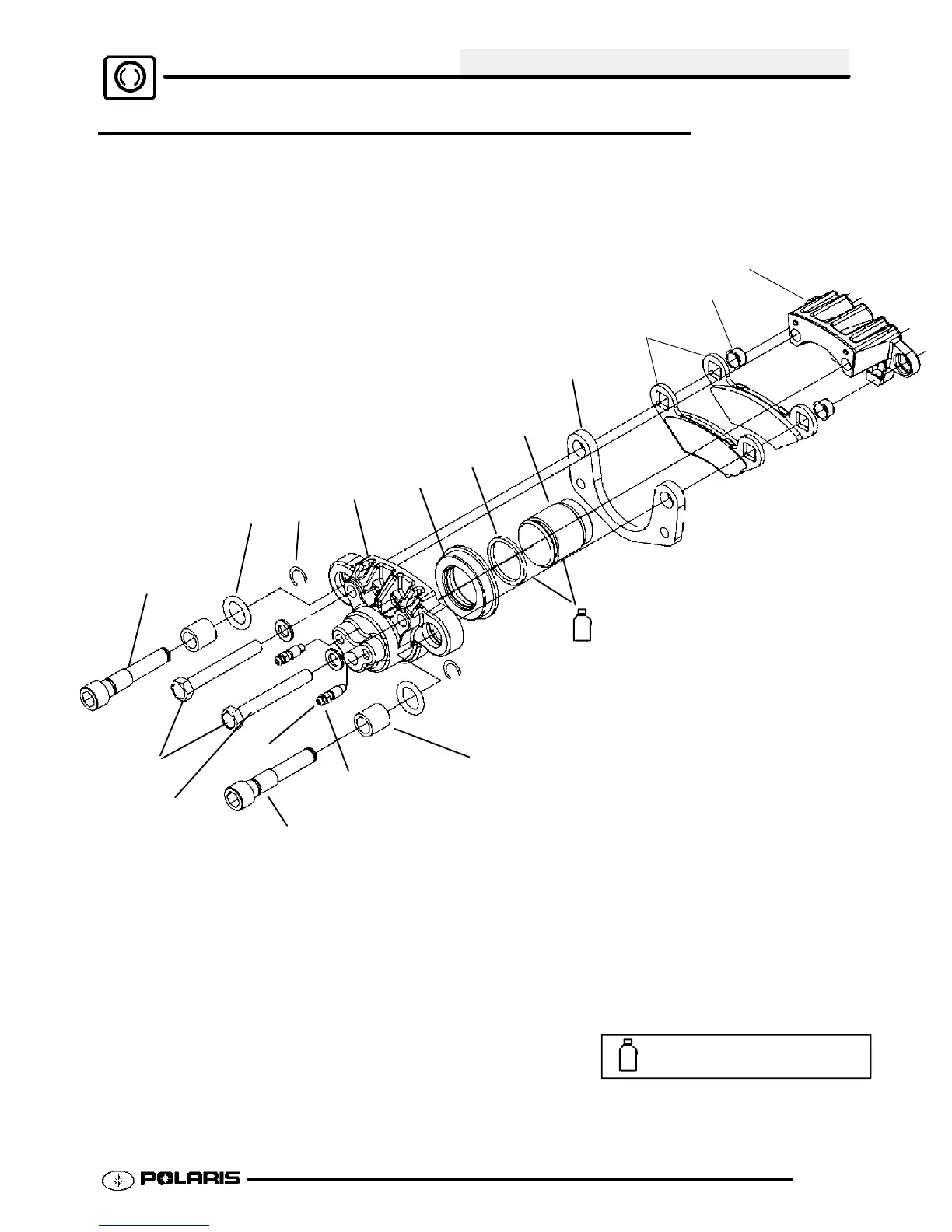

FRONT/REAR BRAKE CALIPER EXPLODED VIEW
B
A. Anvil Body
B. Bushing
C. Brake Pads
D. Caliper Bracket
E. Piston
F. O--Ring
G. Dust Boot
H. Caliper Body
I. O--Ring
J. Sleeve
K. Slide Bolt
L. Caliper Bolt
M. Bleeder Screws
N. Circlips
A
C
D
E
33 ft.lbs.
(45 Nm)
18 ft.lbs.
(25 Nm)
27 in.lbs.
(3 Nm)
APPLY POLARIS DOT 3 BRAKE
FLUID TO COMPONENT
3
3
NOTE: BRAKE COMPONENTS ARE NOT SOLD SEPARATELY,
REFER TO YOUR PARTS BOOK FOR PARTS BREAK DOWN.
F
G
H
I
J
K
M
N
L
