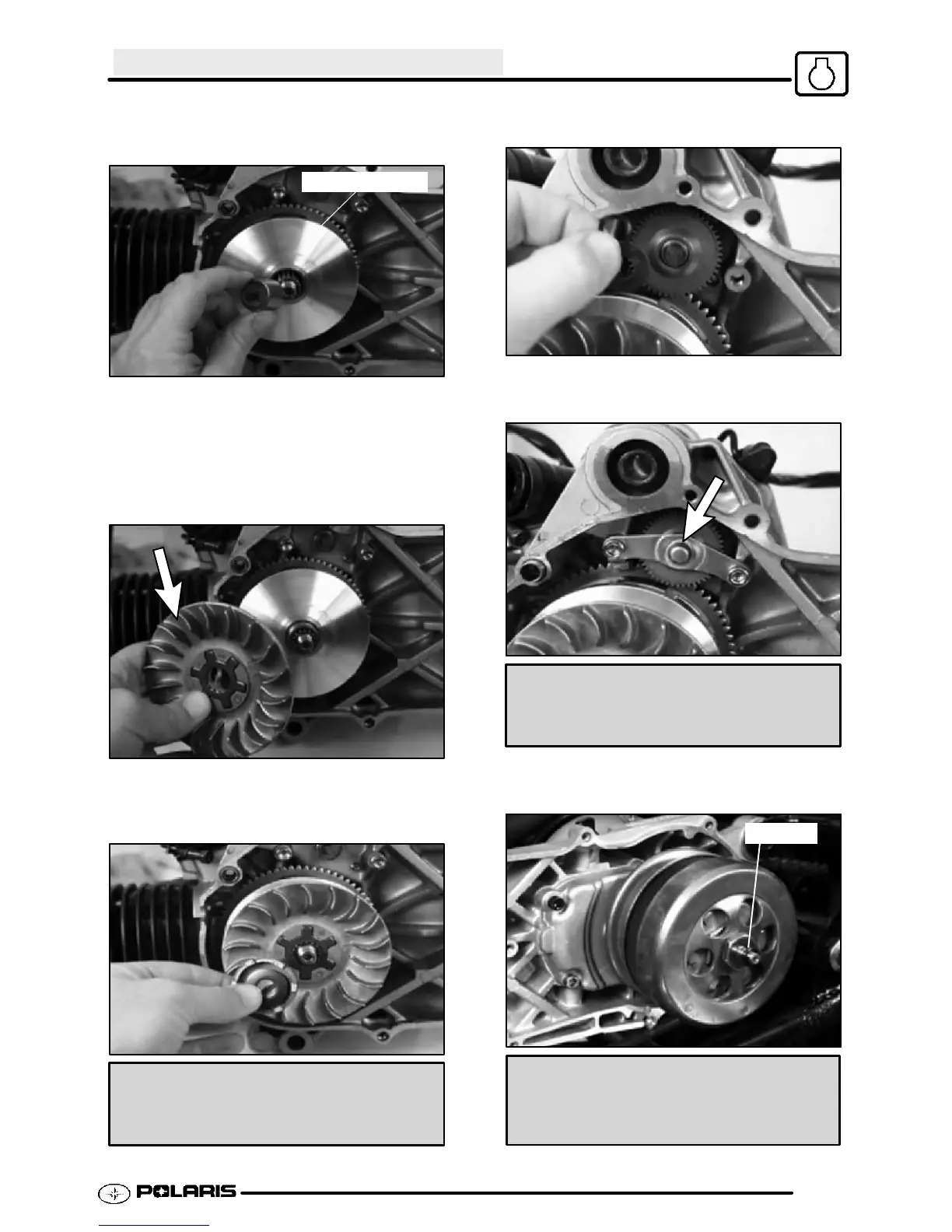

3. Install the bushing, the primary sliding sheave, and
the cam plate assembly.
Primary Sheave
NOTE: When installing the primary sliding sheave
and the cam plate assembly, use two hands to hold
the cam plate andtheprimary sliding sheave together.
The weight rollers will fall out if the assembly is not
installed properly.
4. Install the primary fixed sheave and washer claw.
5. Install the nylon lock nut, the cone spring washer,
and the one way clutch onto the crankshaft.
Torque the drive clutch nut to specification.
Drive Clutch Nut Torque:
29 ft.lbs. (39 Nm)
6. Install the inside washer, the idle gear, and the
outside washer onto the pin shaft.
7. Install the idle gear plate. Torque the bolts to
specification.
Idle Gear Bolt Torque:
84 in.lbs. (9.5 Nm)
8. Installthedrivenclutch assembly,drivenclutchnut,
and the O--ring
O--Ring
Driven Clutch Nut Torque:
24 ft.lbs. (34 Nm)
