27
FEATURES AND CONTROLS
Switches

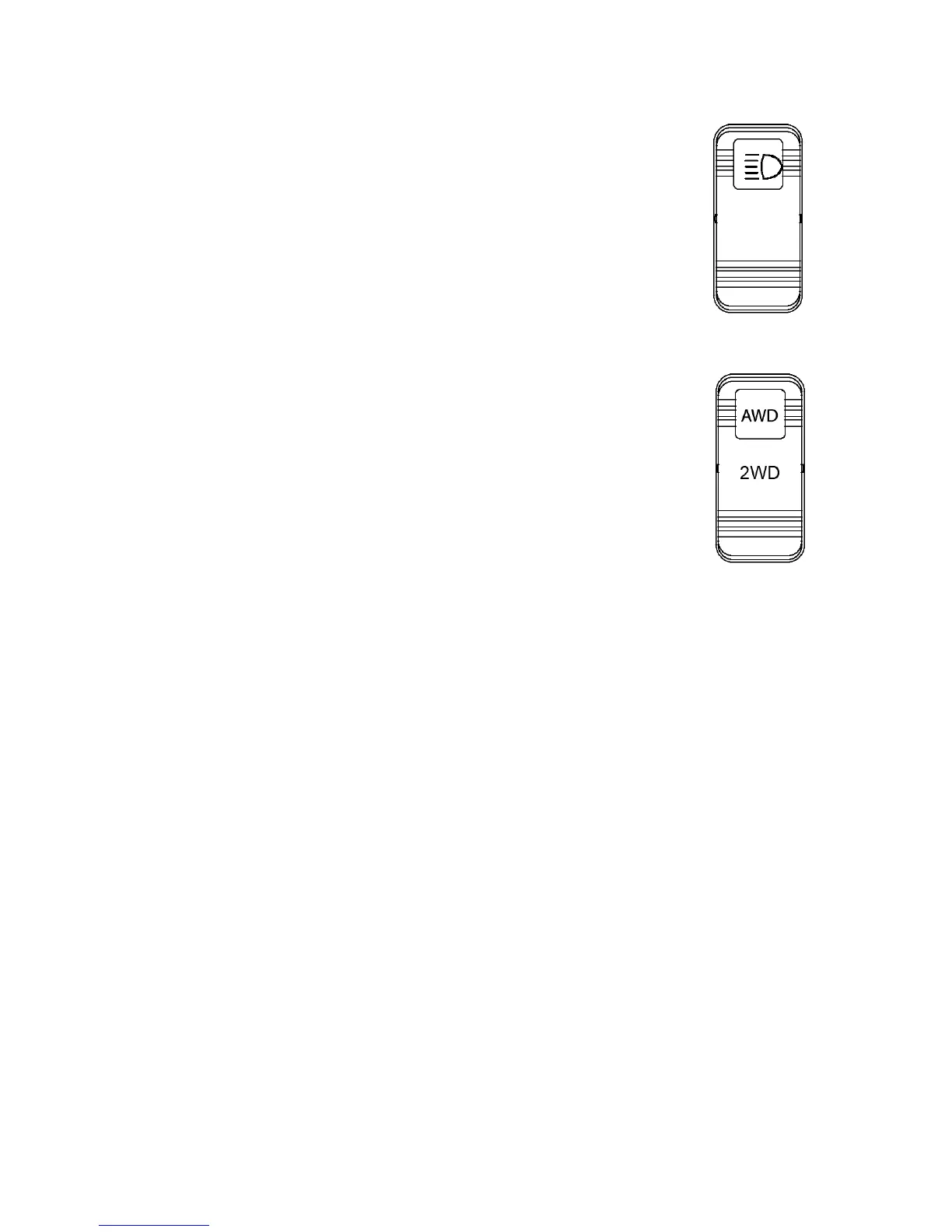

Light Switch
The ignition switch key must be in the ON/
RUN position to operate the headlights. Use the
light switch to turn the headlights on or off.
AWD/Differential Lock Switch
The AWD/Differential Switch has three posi-
tions: All Wheel Drive (AWD), Differential
Lock/Two Wheel Drive (2WD) and Off (1WD/
Turf Mode).
Press the top of the rocker switch to engage All
Wheel Drive (AWD). See page 52 for AWD
operating instructions.
Move the rocker switch to the center position to
lock the differential and operate in two wheel
drive (2WD). See page 51 for Differential Lock
operating instructions.
Press the bottom of the switch to unlock the dif-
ferential and allow the rear drive wheels to
operate independently (1WD). This mode of
operation is well suited to turf driving or when
active traction is not needed.
ON
OFF
AWD
2WD
OFF
