3.26
9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.

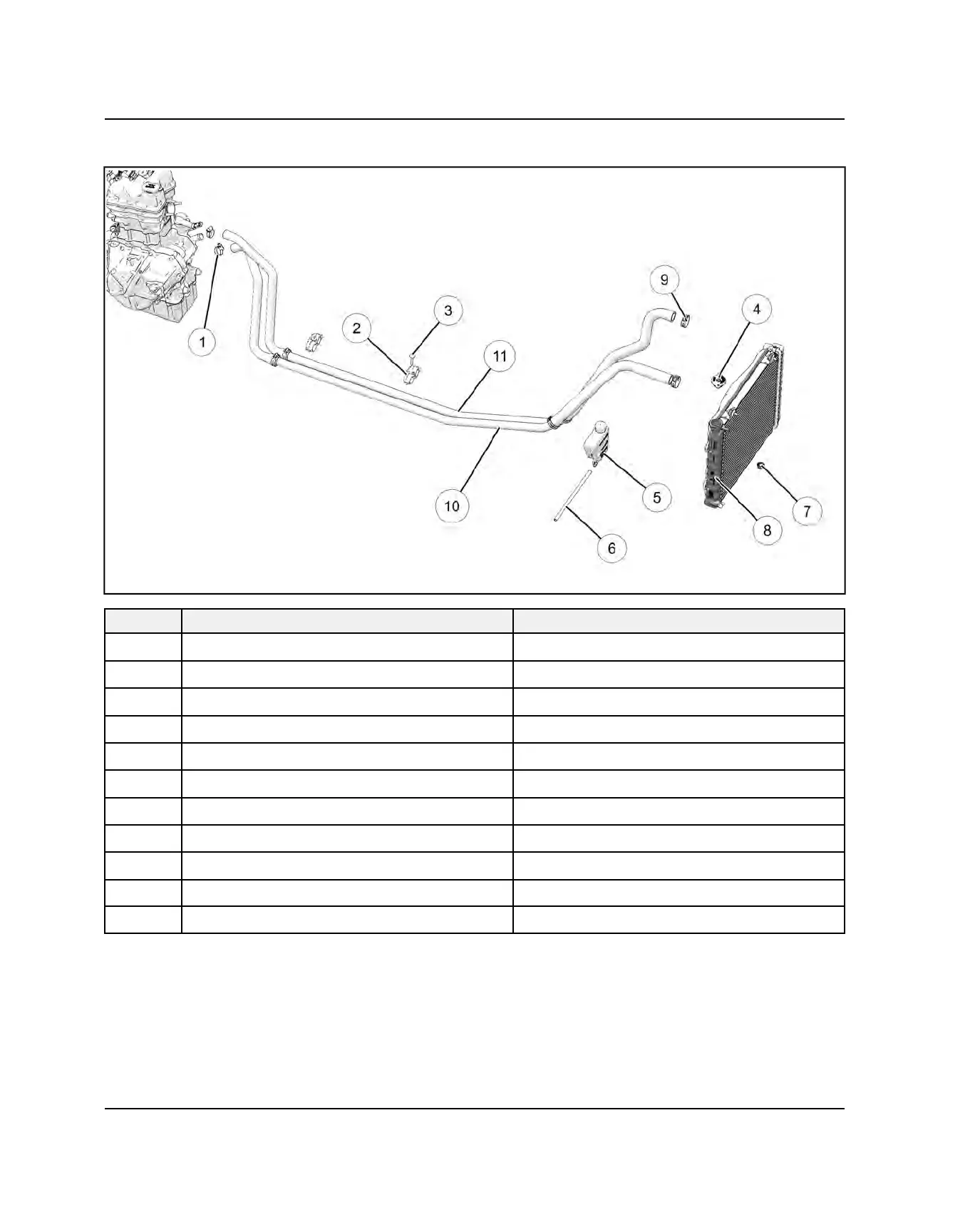

COOLING SYSTEM ASSEMBLY VIEW
REF.
DESCRIPTION NOTES
q
Hose Clamp
w
Coolant Line Clamp
e
Coolant Line Clamp Screw
r
Pressure Cap
t
Recovery Tank
y
Recovery Tank Tube
u
Radiator Lower Mount Bushing
i
Radiator
o
Clamp Springband
a
Coolant Tube In
s
Coolant Tube Out
