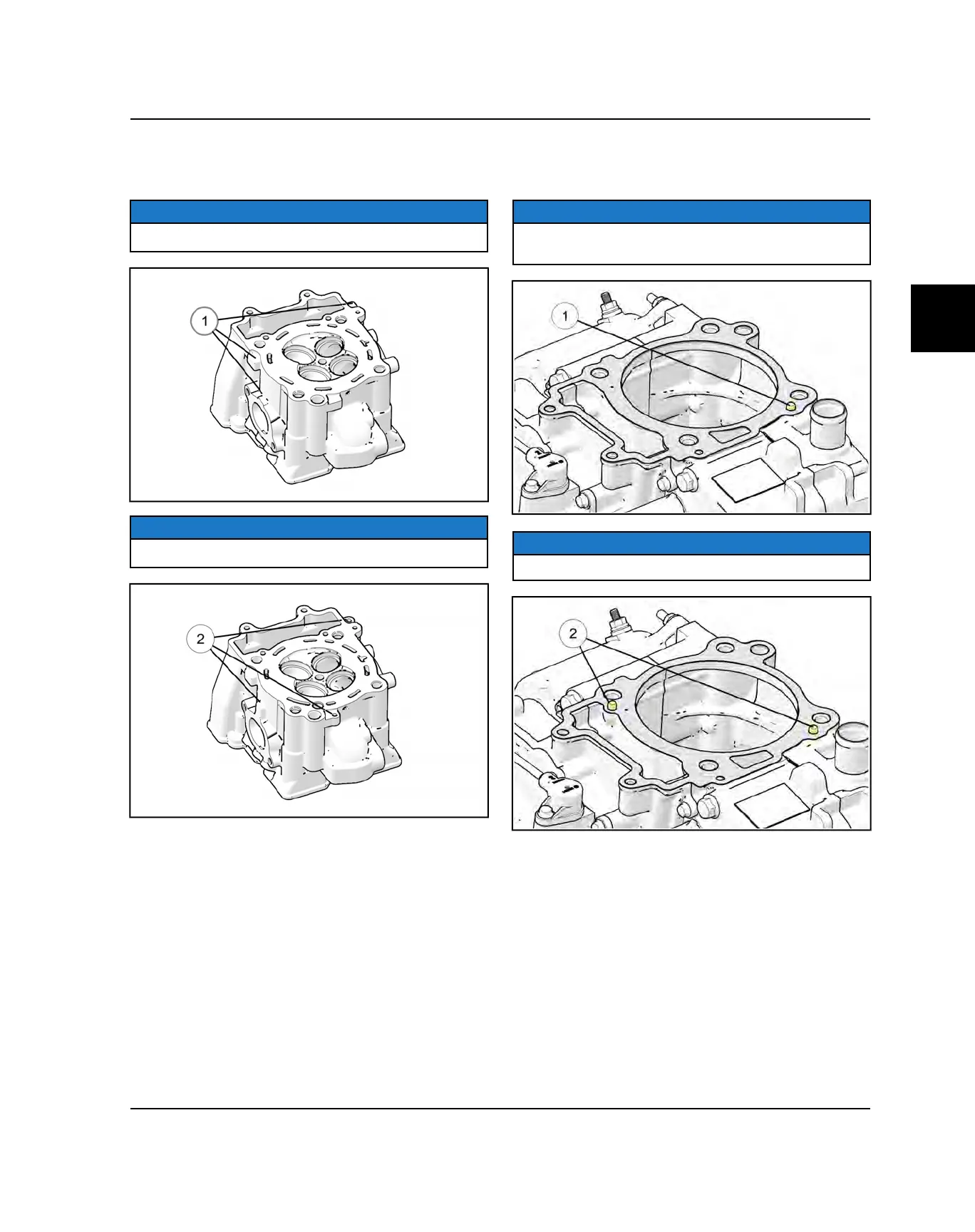

CYLINDER HEAD IDENTIFICATION
Refer to the images below to aid in 2015 and Prior VS.
2016 To Current Crank Case Identification.
NOTE
2015 and Prior Cylinder Head
q
.
NOTE
2016 to Current Cylinder Head
w
.
CRANKCASE IDENTIFICATION
Refer to the images below to aid in 2015 and Prior VS.
2016 To Current Crank Case Identification.
NOTE
2015 and Prior Crankcases use
q
dowel in the main
crank case.
NOTE
2016 to Current Crankcases use
w
dowels.
