11.24
9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.

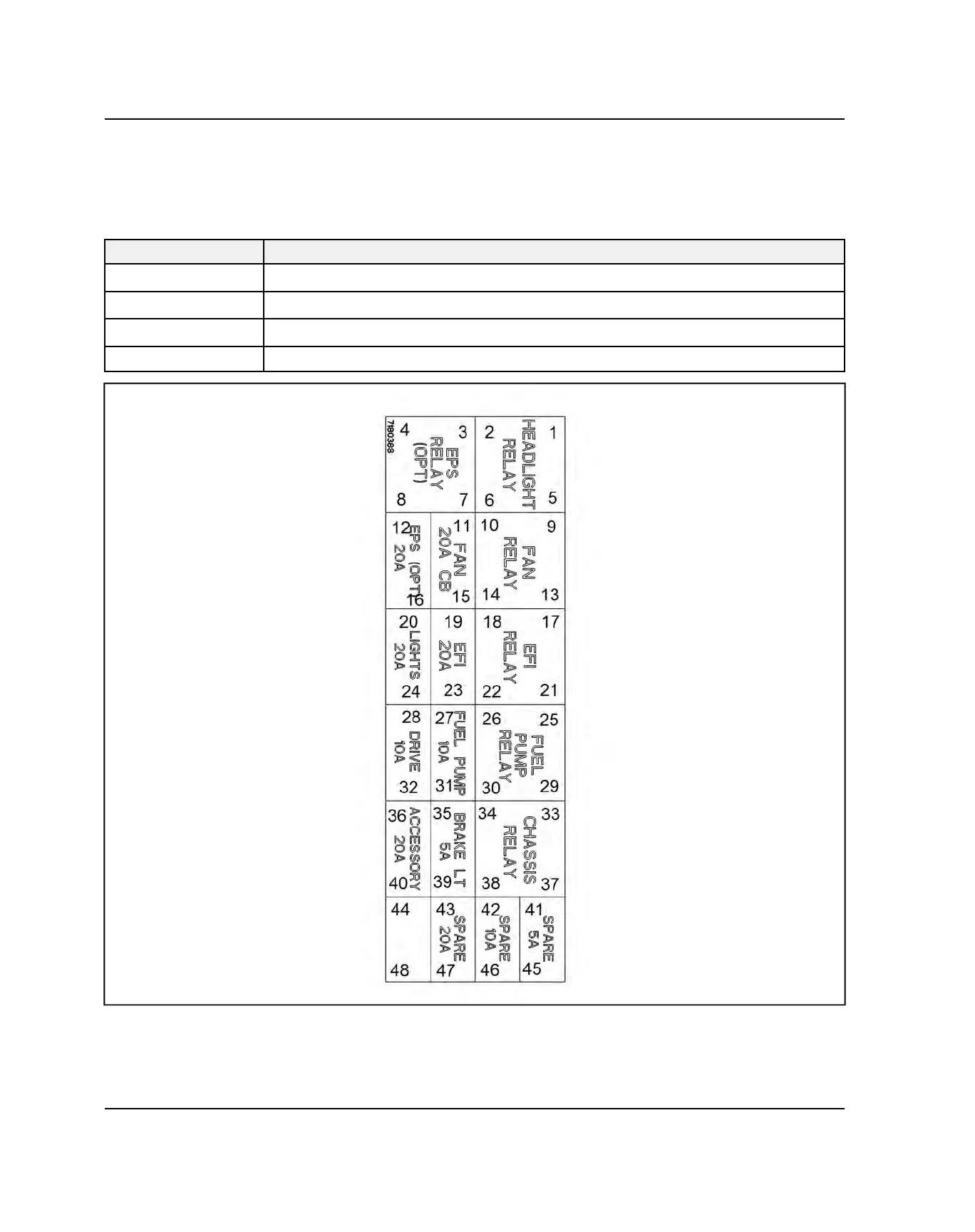

FUSES / CIRCUIT BREAKER
OPERATION
The fuses, located in the relay/fuse box under driver’s seat base, provide current protection for components such as
the EFI system, main harness, lights and accessories.
FUSE SIZE FEATURE SUPPORTED
5 A Brake Light
10 A Drive System, Fuel Pump
20 A
EFI, Power Steering (if equipped), Lights, Accessories
20 A Circuit Breaker
Fan
