MAINTENANCE
Gearcases
Transmission (Main Gearcase)
Always check and change the fluid at the intervals outlined in the Peri-
odic Maintenance Chart beginning on page 65. Refer to the Gearcase
Specifications Chart on page 78 for recommended lubricants, capacities
and torque specifications.
Fluid Check
The fill plug is located on the rear
of the gearcase. Maintain the fluid
level at the bottom of the fill plug
hole.
1. Position the vehicle on a level
surface.
2. Remove the fill plug.
3. Check the fluid level.
4. Add the recommended fluid
to the bottom of the fill plug
hole. Do not overfill.
5. Reinstall the fill plug. Torque to specification.
Fluid Change
The drain plug is located on the bottom of the gearcase. Access the drain
plug through the drain hole in the skid plate.
1. Remove the fill plug.
2. Place a drain pan under the drain plug.
3. Remove the drain plug. Allow the fluid to drain completely.
4. Clean the drain plug.
5. Reinstall the drain plug with a new o-ring. Torque to specification.
6. Add the recommended fluid to the bottom of the fill plug hole. Do
not overfill.
7. Reinstall the fill plug. Torque to specification.
8. Check for leaks. Discard used fluid properly.

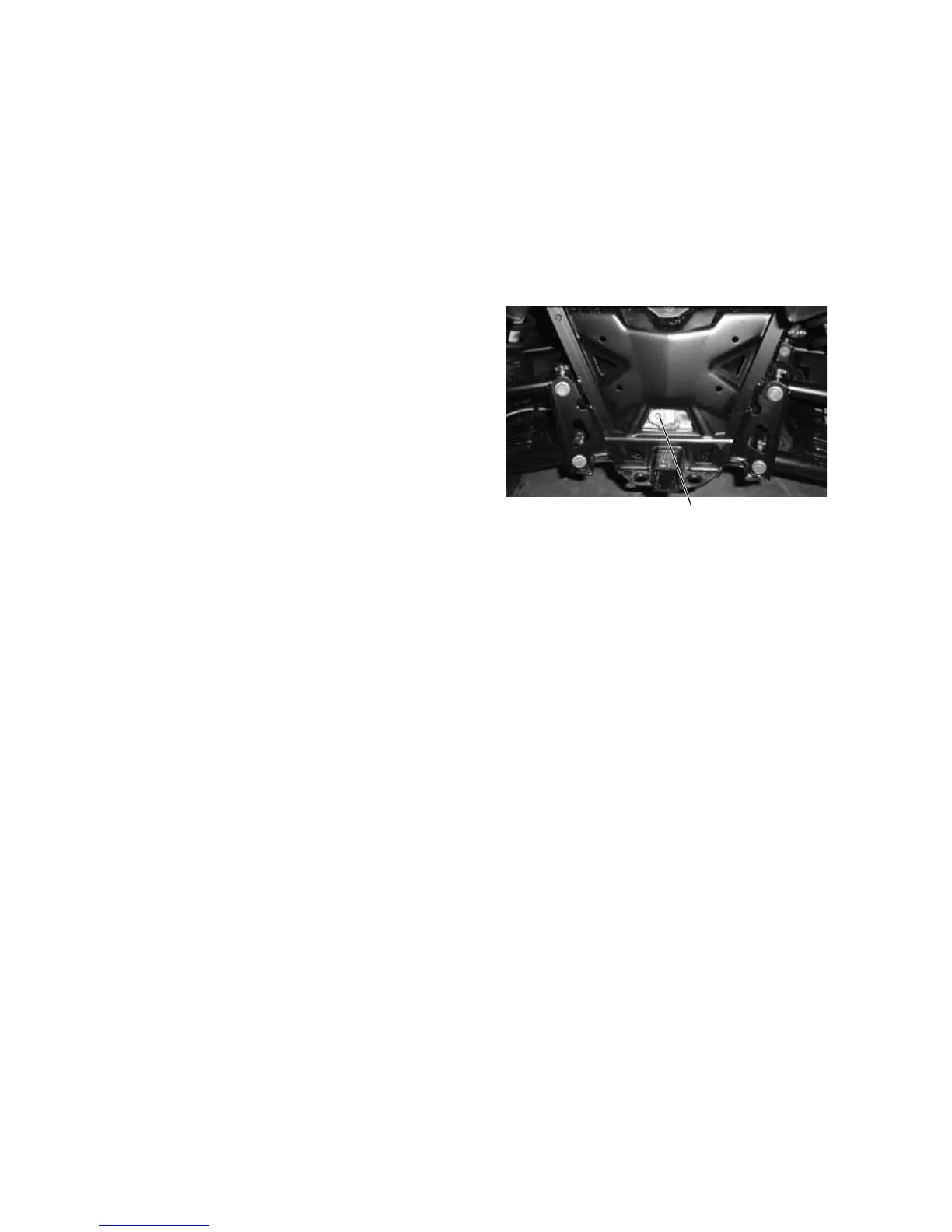

Fill Plug
