14.If internal transmission repair is required, drain the
transmission lubricant (see Chapter 2 – Transmission
Lubrication page 2.46).

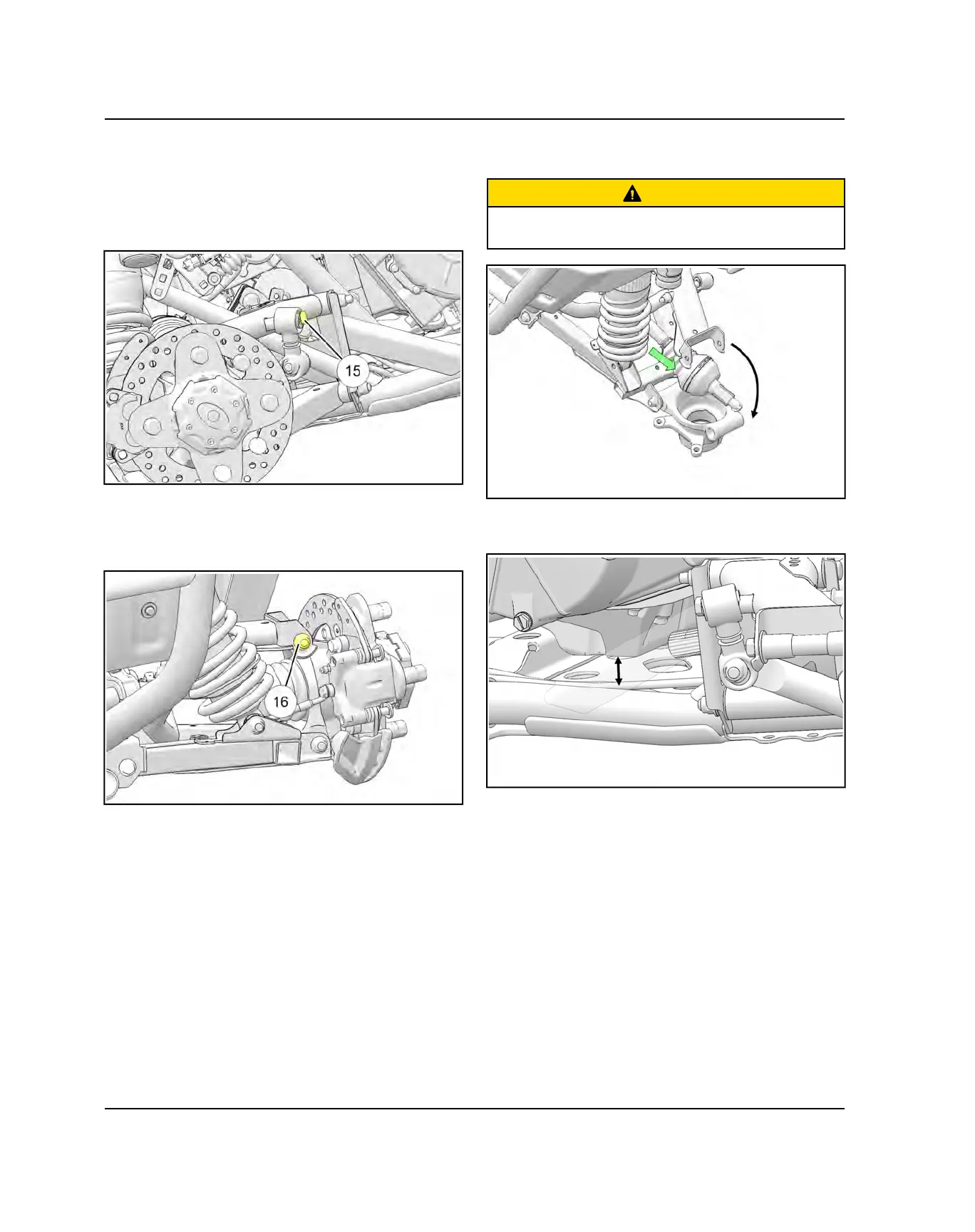

15.Remove the stabilizer bar mounting bolt and nut
h
from both sides. Discard nuts and replace with new
upon assembly.
16.Remove the fasteners
j
attaching the upper control
arms to the bearing carriers (left and right side).
Discard nuts and replace with new upon assembly.
Allow the radius rods swing downward.
17.Pivot the control arms downward and maneuver the
drive shafts out of the vehicle frame.
CAUTION
Be careful not to stretch the brake line when pivoting
the bearing carrier downward.
18.Place a spacer or support between the vehicle frame
and engine to hold the engine up in position.
19.Remove the PVT outer cover.
20.Remove the belt and driven clutch.
