9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
7.9

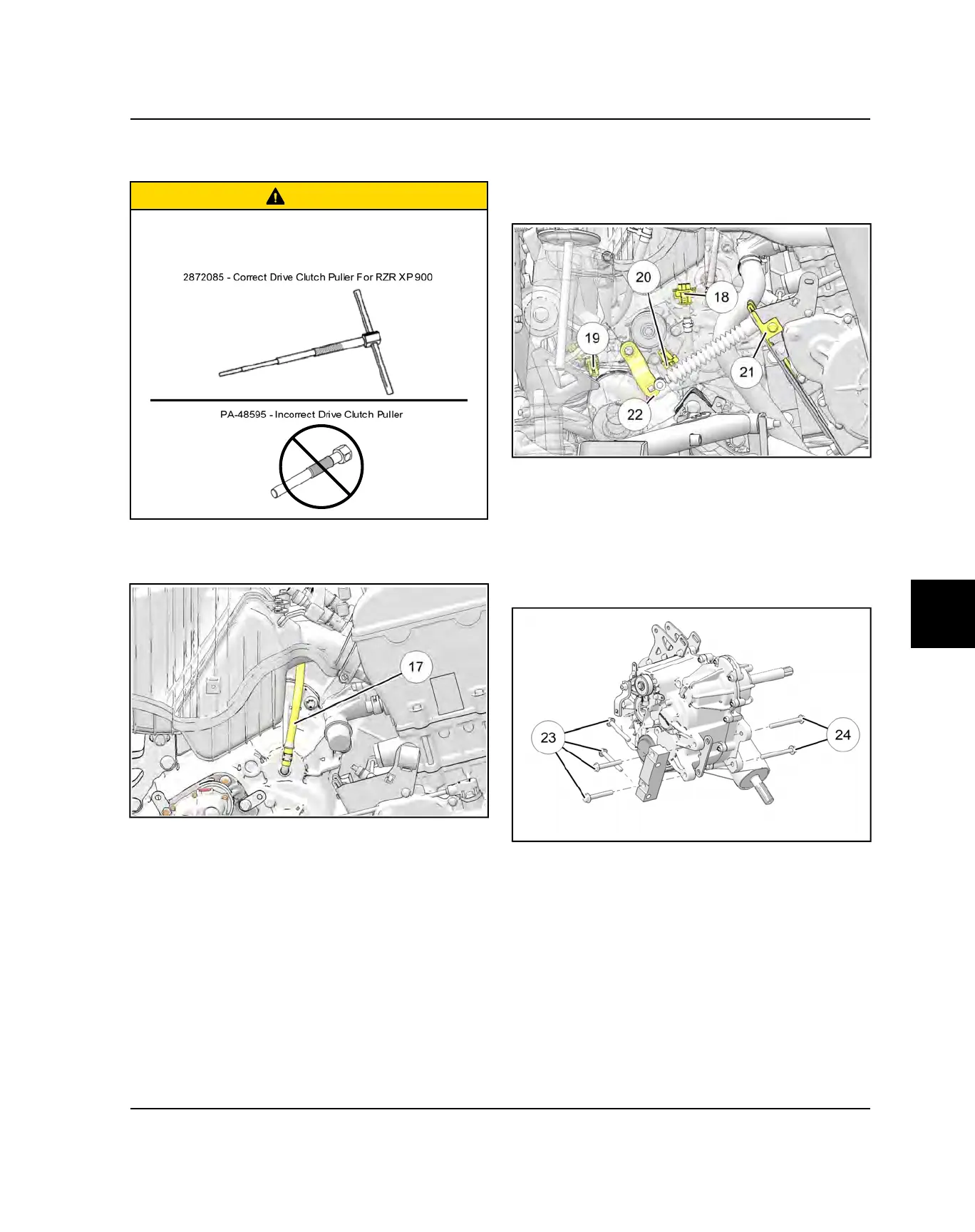

21.Remove the drive clutch from the vehicle using the
correct drive clutch puller (PN 2872085).
CAUTION
Use the correct puller to prevent damage to the end of
the crankshaft.
22.Remove seven bolts retaining the inner clutch cover.
23.Remove vent hose from transmission.
24.Remove the gear position switch connector
l
, speed
sensor connector
1(
, crankshaft position sensor
connector
2)
, shift bracket bolts and shift bracket
2!
,
shift cable clevis pin and washer
2@
from the
transmission.
25.Remove the wire ties retaining harness to
transmission and mounts.
26.Remove the six engine-to-transmission mounting
bolts.
27.Using a 15mm socket, remove the four bolts from the
left side
2#
and two from the right side
2$
, securing
the transmission to the engine.
TRANSMISSION
