6.25
5. Install screws hand tight. Place assembly in soft jaw
vise and torque to specification.
NOTE

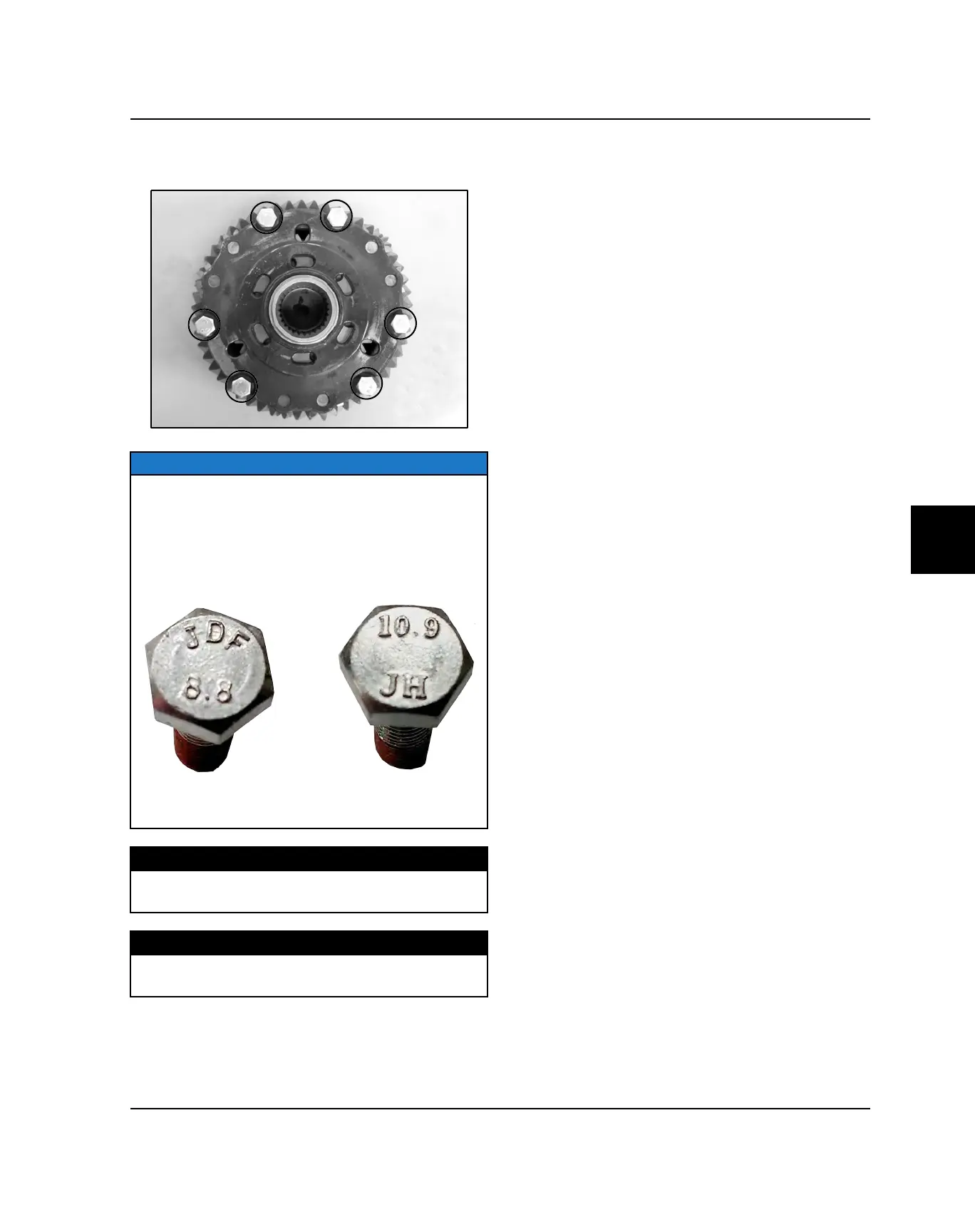

The are two possible grades for the differential cover
screws. The grade can be located on the head of the
fastener. The two possible fasteners are grade 8.8 and
grade 10.9. Torque the screws according to their
corresponding grade.
TORQUE
Differential Cover Screws (8.8 Fastener):
22 ft-lb (30 Nm)
TORQUE
Differential Cover Screws (10.9 Fastener):28 ft-lbs (38
Nm)
