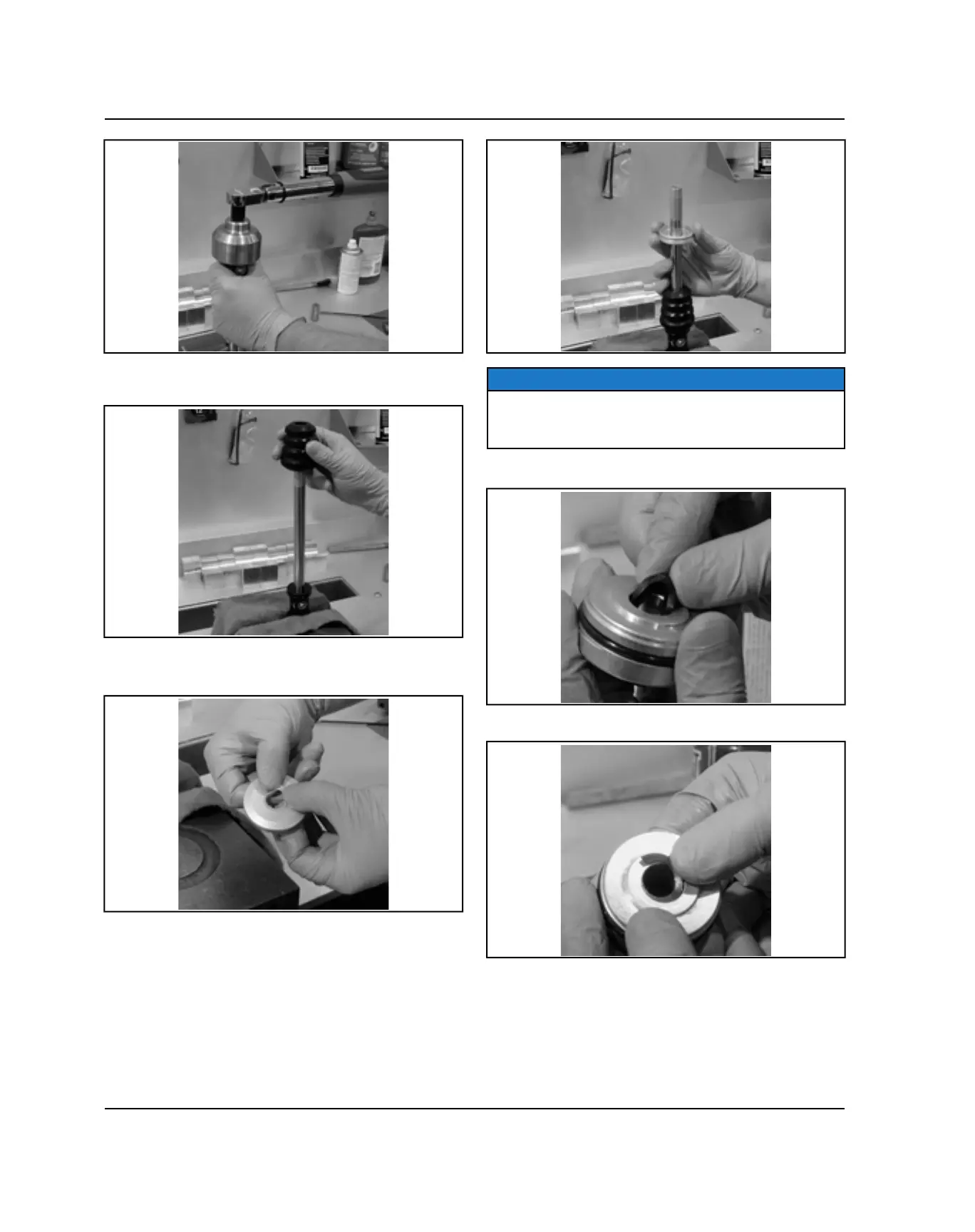

16.Reverse shock shaft in clamp blocks and install air
side shaft spacers (if equipped) and jounce bumper.
17.Install wiper seal in body cap (if equipped).
18.Apply thin layer of shock oil to seal.
19.Install body cap.
NOTICE
There are two different sides on the U-Cup seal. When
seal is installed, energizing side should be facing
internal bearing.
20.Install U-Cup seal.
21.Install back-up washer.
22.Apply thin layer of shock oil to washer.
