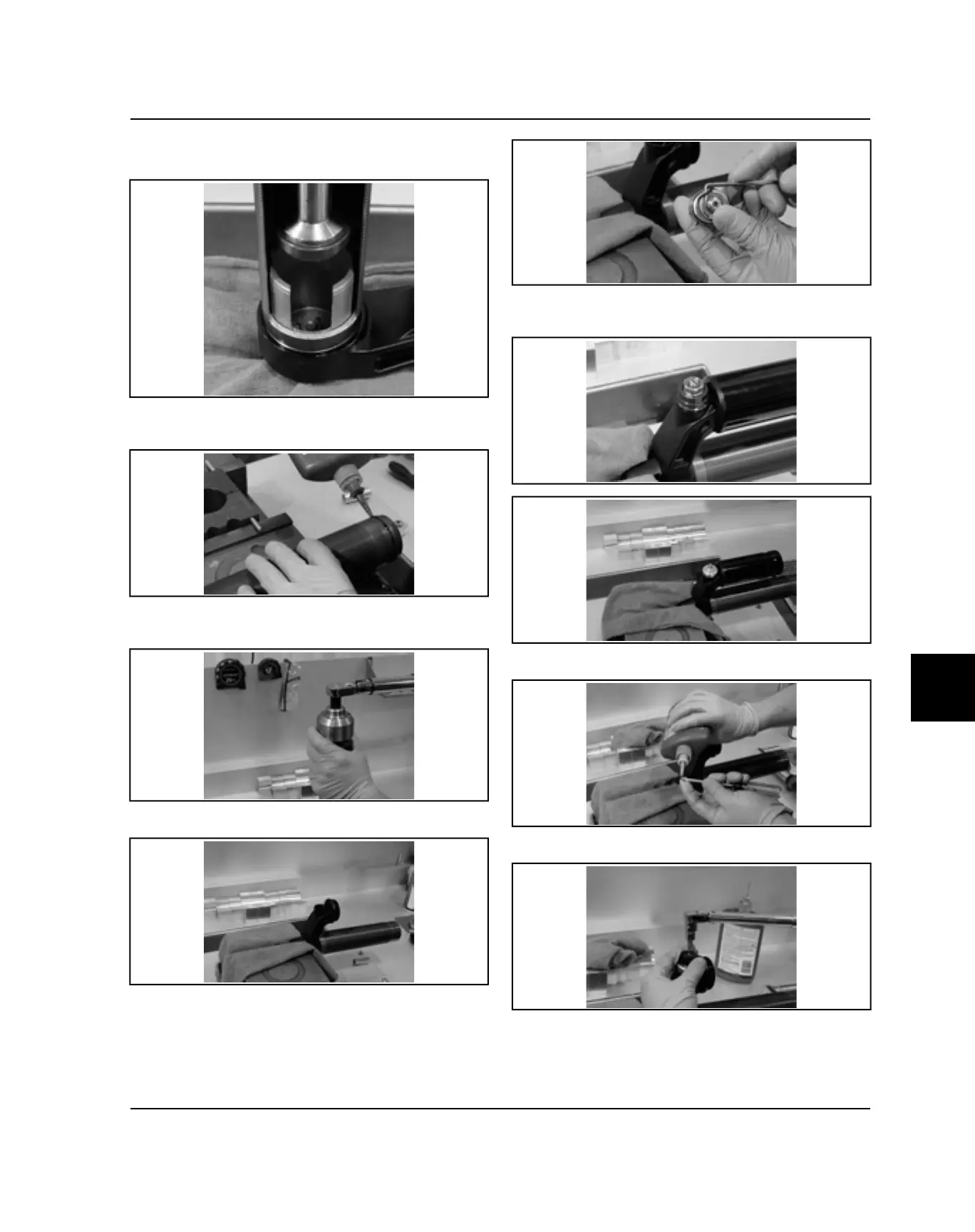

34.Install Bottom Out Cup into the body cap prior to
installing body (if equipped).
35.Apply Loctite® 638 to body two threads down and two
threads wide 360° around body.
36.Place body in clamp blocks and torque body cap to
100 ft-lbs (136 Nm) using body cap socket.
37.Place body in block clamps parallel to the ground.
38.Replace both O-rings on DSC or LSC.
39.Torque DSC to 35 ft-lbs (47 Nm) or LSC to 12 ft-lbs
(16 Nm).
40.Apply Loctite® to LSC screw (if equipped).
41.Install LSC knob and torque screw to specification.
42.Install reservoir O-ring.
