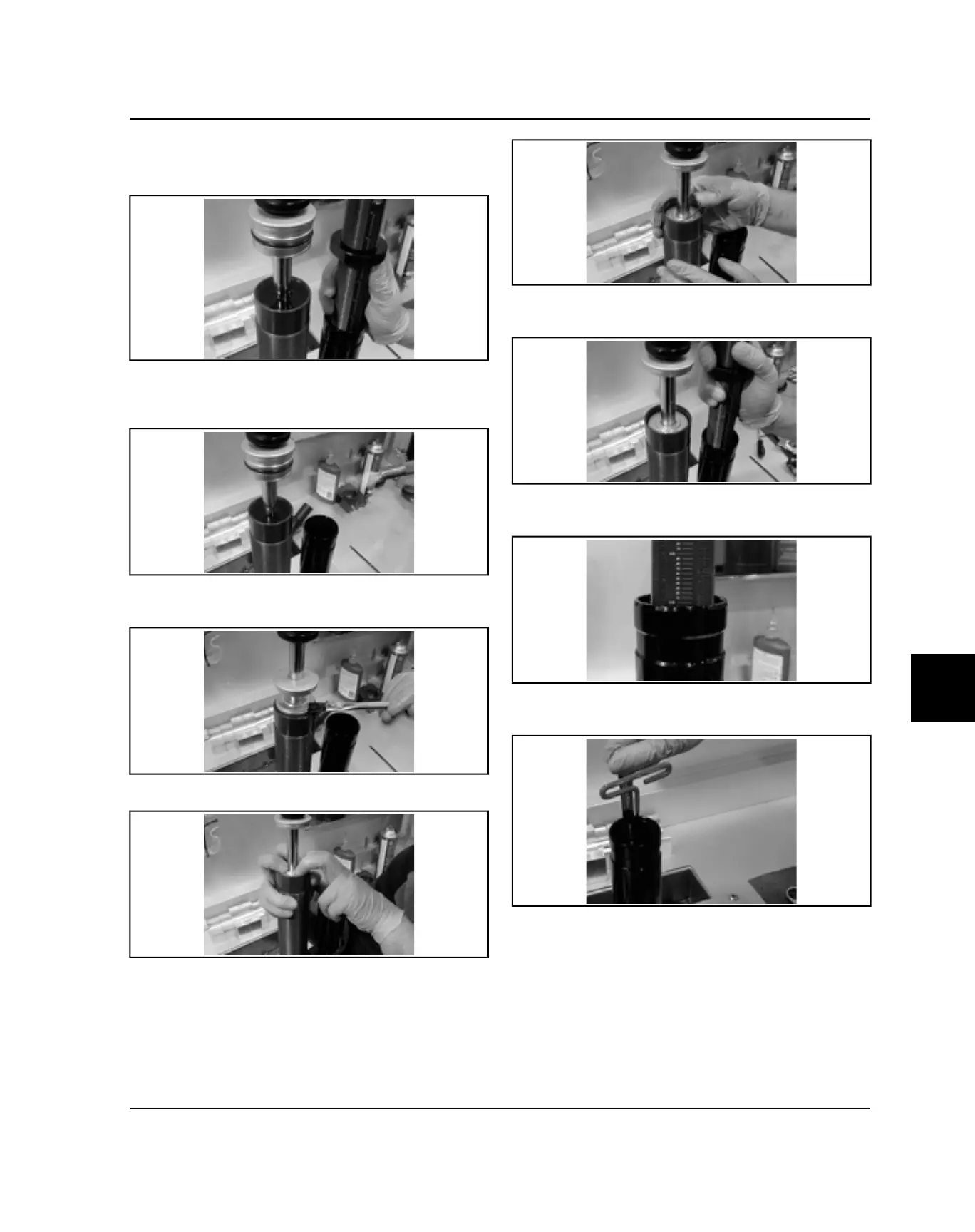

51.Install the shock shaft assembly so the piston
assembly is just below the retaining ring groove in the
body.
52.Slowly compress the bearing assembly to release
any air that may be trapped below the bearing
assembly.
53.Apply a thin layer of shock oil to the bearing
assembly’s external O-ring.
54.Push bearing assembly in with your finger tips.
55.Install retaining ring.
56.Use IFP tool to push down on IFP and fully extend the
shock shaft assembly.
57.Remove bleed screw and set IFP to the appropriate
height.
58.While holding the IFP, install bleed screw with O-ring
using a 9/16″ open end wrench.
59.Install reservoir cap O-ring on cap and apply a thin
layer of shock oil to side and O-ring.
