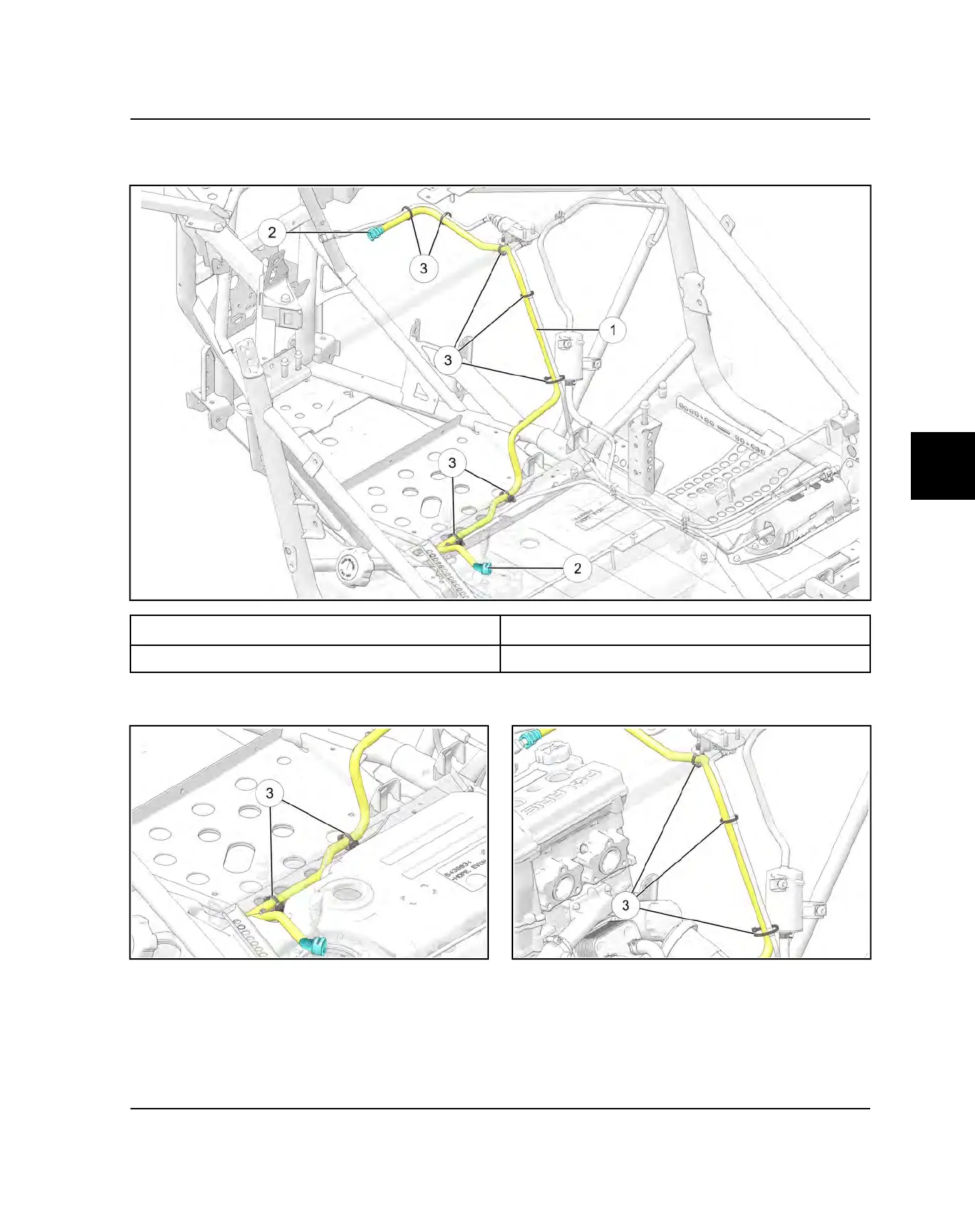

FUEL SUPPLY LINE ROUTING (EVAP
MODELS)
q
Fuel Supply Line
e
Panduit Strap
w
Fuel Line Quick-Connect
1. Retain fuel line to frame, behind fuel tank with two
panduit straps.
2. Route fuel line up to the purge valve mounting
bracket. Retain fuel line with three panduit straps.
FUEL SYSTEM
