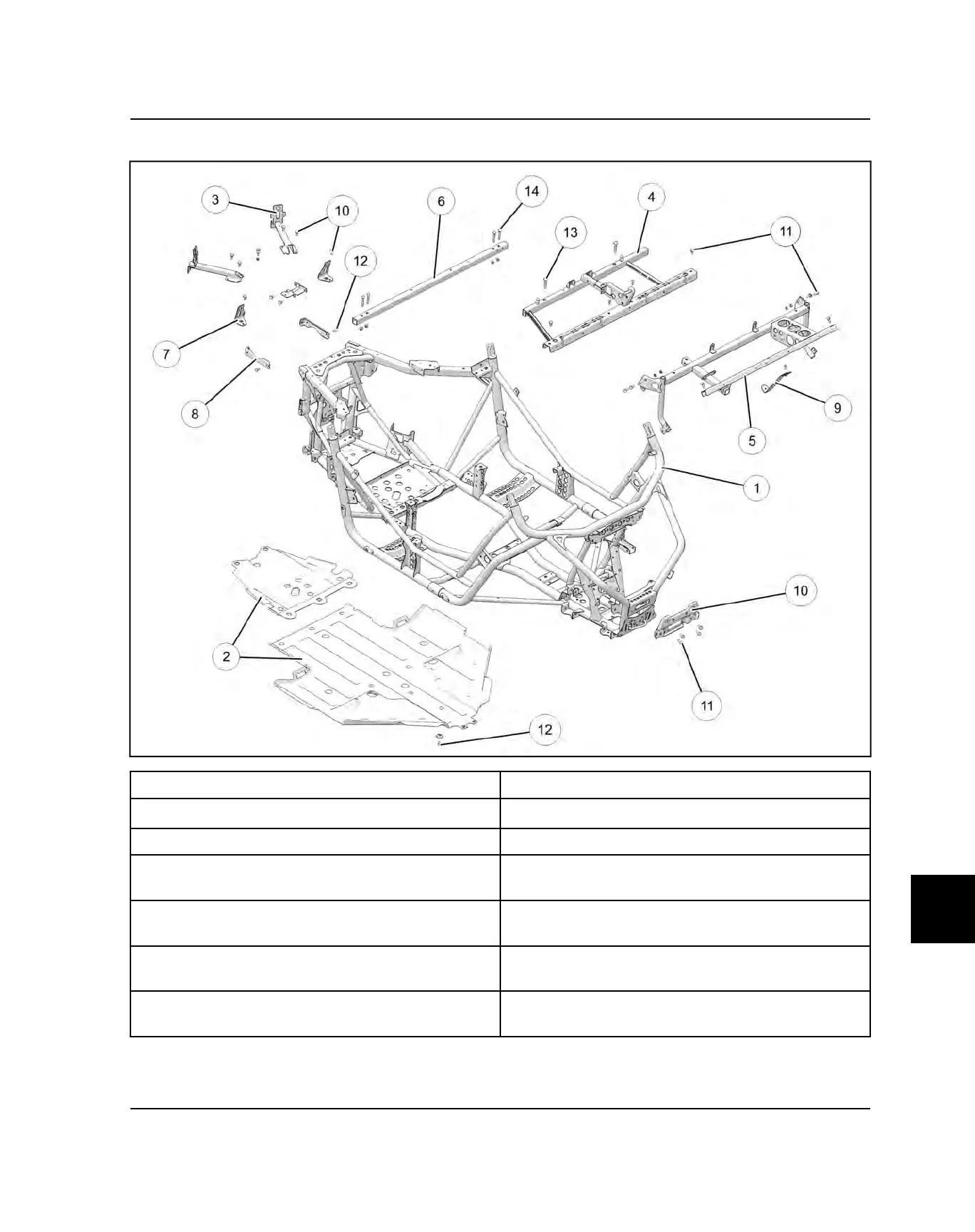

CHASSIS / MAIN FRAME
q
Main Frame
i
Lower Rear Fascia Bracket
w
Skid Plate
o
Dash Mounting Bracket
e
Rear Fascia Mount/Tiedown
a
Front Fascia Lower Mount Plate
r
Seat Base Frame
s
Frame Fasteners
14 ft-lb (19 Nm)
t
Dash Frame
d
Skid Plate Screws
8 ft-lbs (11 Nm)
y
Upper Frame Support
f
Seat Frame Bolt (rear)
30 ft-lb (41 Nm)
u
Front Tiedown
g
Frame Support Bracket
22 ft-lb (30 Nm)
